Cruise Control Servo: Service and Repair
CRUISE CONTROL SERVO REPLACEMENTREMOVAL PROCEDURE

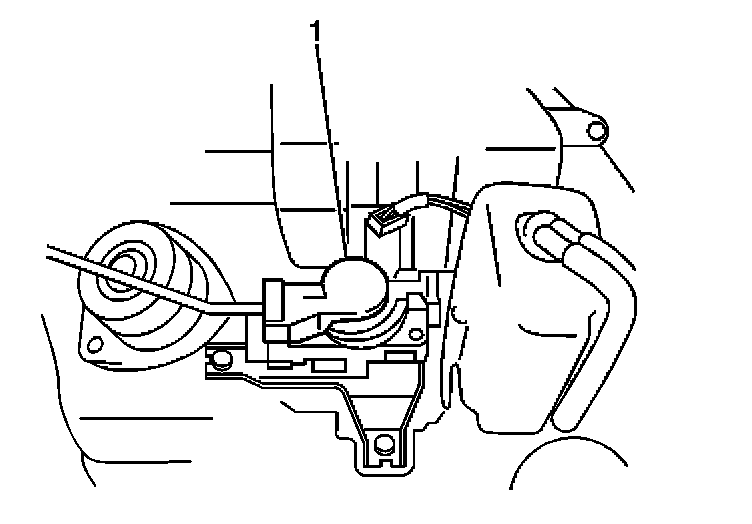

1. Remove the cruise control module cover (1).
2. Loosen the cruise control servo cable locknut (5).

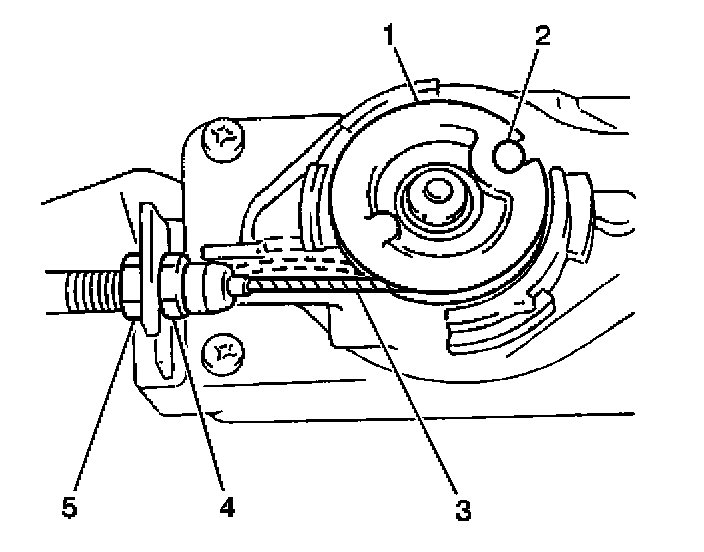

3. Remove the cruise control servo cable (3) from the cruise control servo assembly (1).
4. Disconnect the cruise control servo assembly electrical connector.

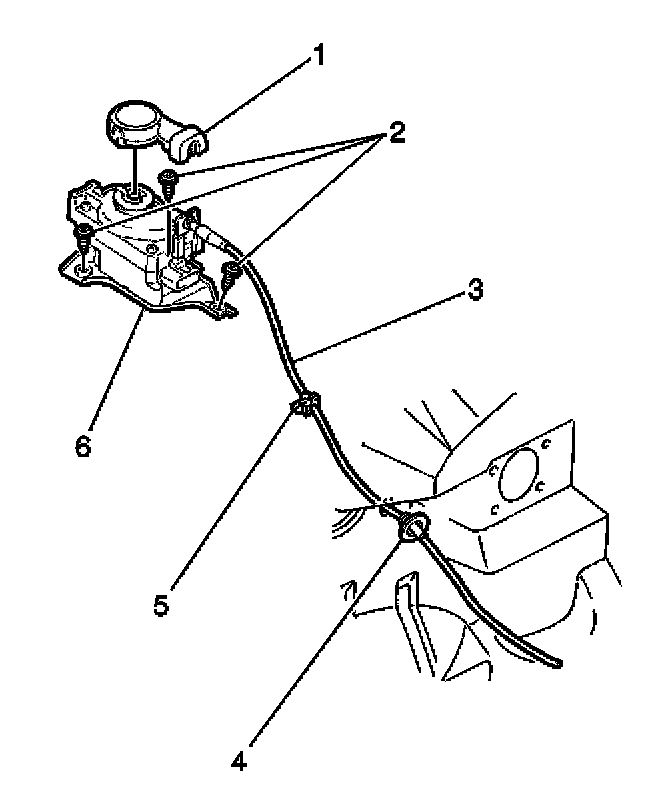

5. Remove the 3 bolts (2) and the cruise control servo assembly (6) from the vehicle.
INSTALLATION PROCEDURE
1. Install the cruise control servo assembly (6) to the vehicle. Secure the assembly with the 3 bolts (2).
NOTE: Refer to Fastener Notice in Service Precautions.
Tighten
Tighten the cruise control servo assembly mounting bolts to 10 N.m (89 lb ft).
2. Connect the cruise control servo assembly electrical connector.

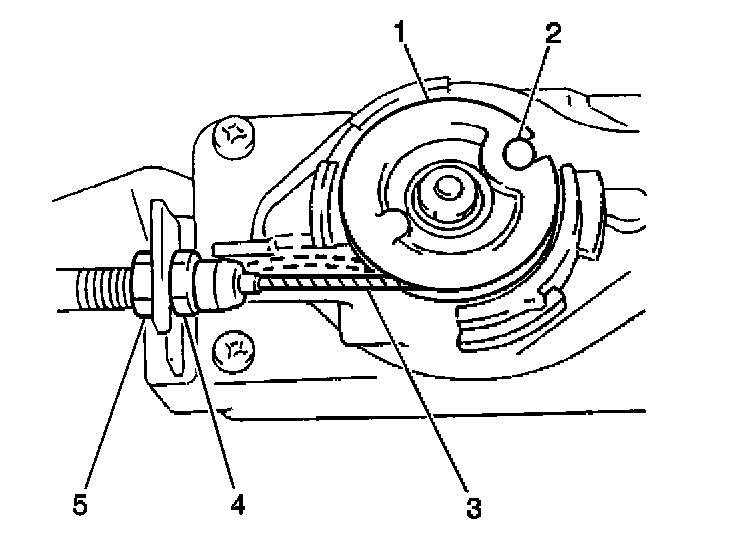

3. Install the cruise control servo cable (3) to the cruise control actuator lever (1).
4. Adjust the cruise control servo cable locknuts (5) in order to adjust the cruise control servo cable play.
5. Adjust the cruise control servo cable play to 1-2 mm (0.04-0.08 in) at the servo closed throttle position.
Tighten
Tighten the cruise control cable locknut (5) to 5 N.m (44 lb in).

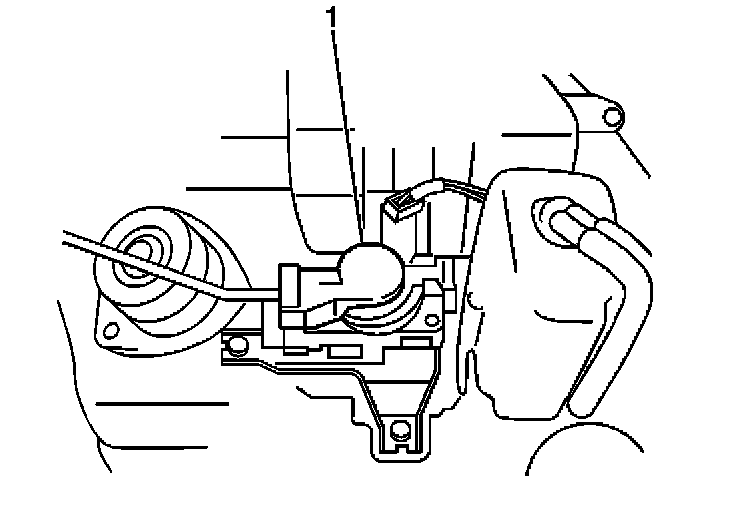

6. Install the cruise control module cover (1).
