Home >> Chevy Truck >> 2003 >> Tracker 4WD L4-2.0L VIN C >> Repair and Diagnosis >> Diagrams >> Connector Views >> C200 - C299 >> C211

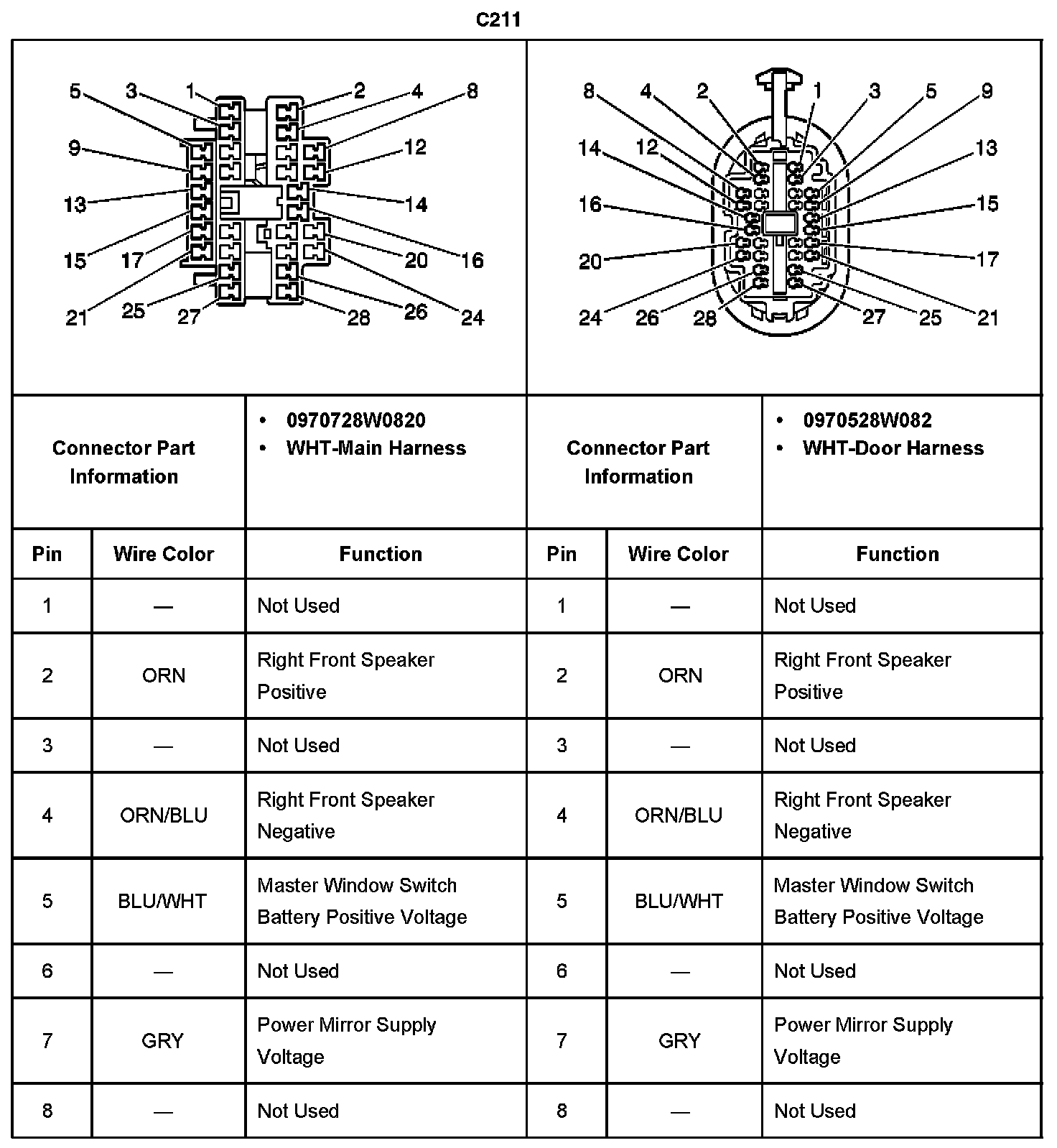

C211

C211 Part 1:



C211 Part 2:
