Clockspring Assembly / Spiral Cable, Air Bag
Clockspring Assembly / Spiral Cable, Air Bag

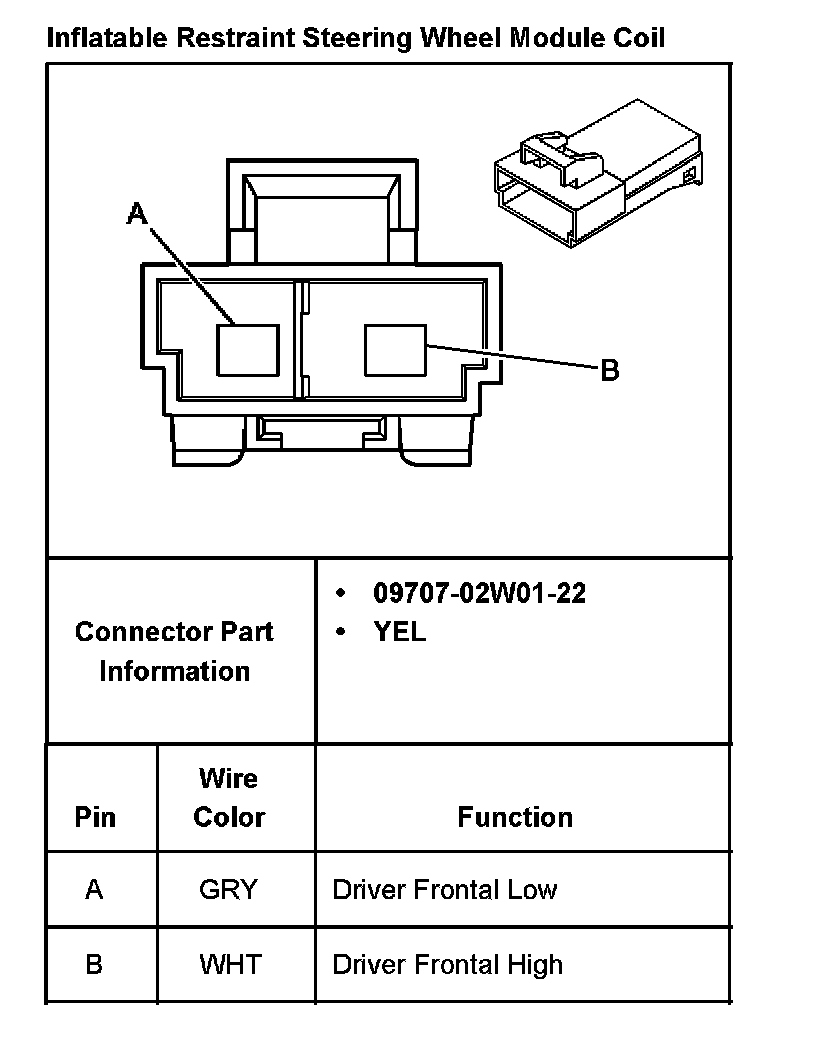

Inflatable Restraint Steering Wheel Module Coil:
