Home
>>
Chevy Truck
>>
2003
>>
Tracker 4WD L4-2.0L VIN C
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Heating and Air Conditioning
>>
Condenser Fan Motor Relay, HVAC
Condenser Fan Motor Relay, HVAC

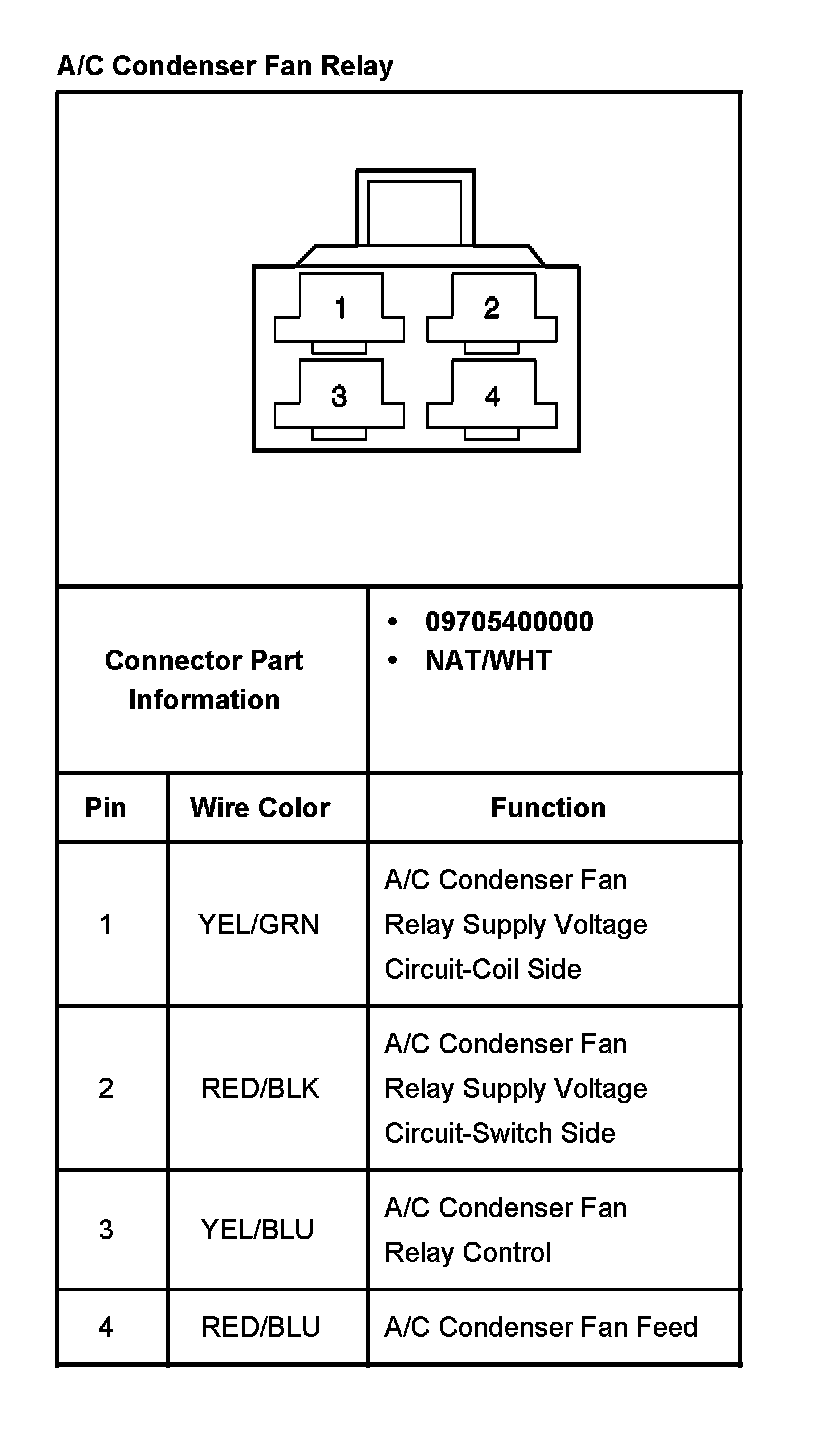

A/C Condenser Fan Relay:
