Control Assembly, HVAC

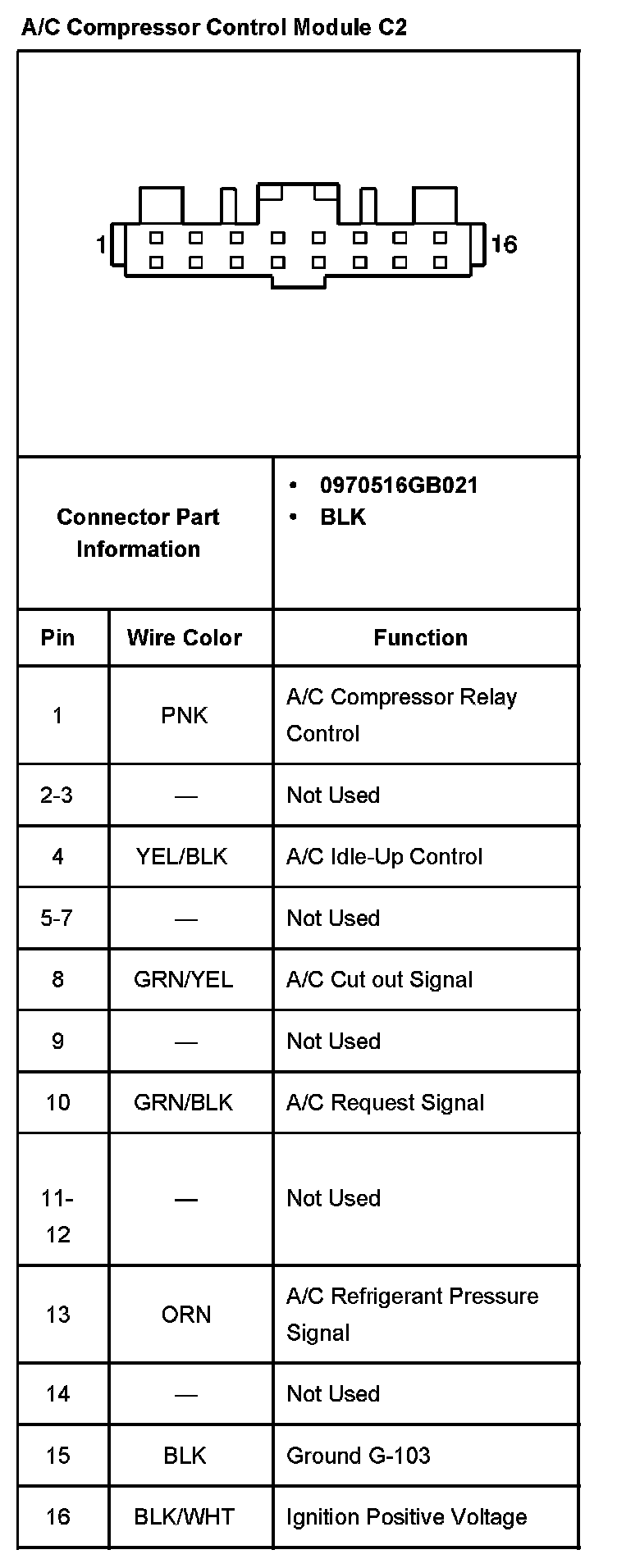

A/C Compressor Control Module C2:

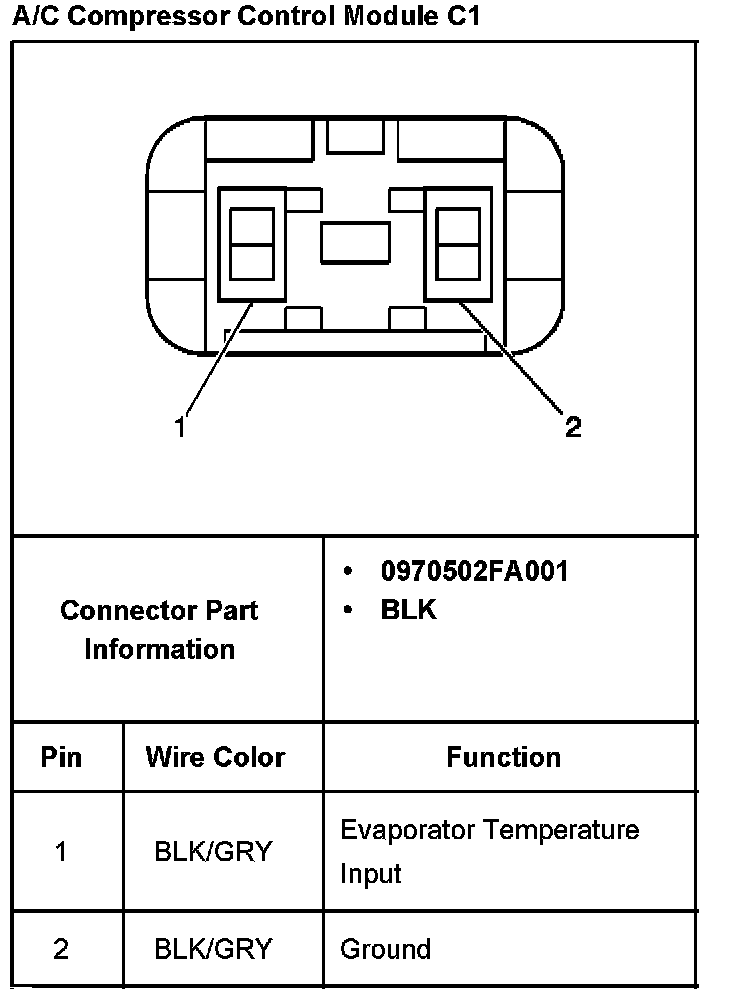

A/C Compressor Control Module C1:



Heater Control Illumination Lamp:
