Tracker 4WD L4-2.0L VIN C
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Instrument Cluster / Carrier
>>
System Diagram
System Diagram

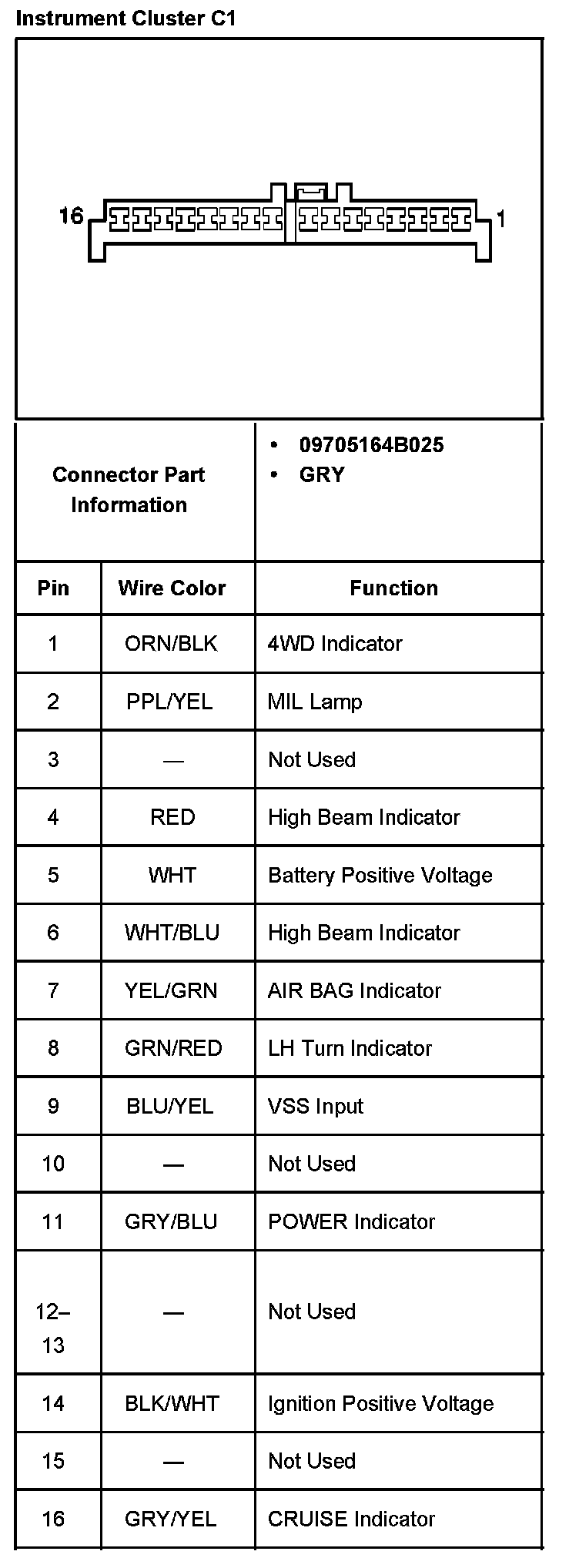

Instrument Cluster C1:

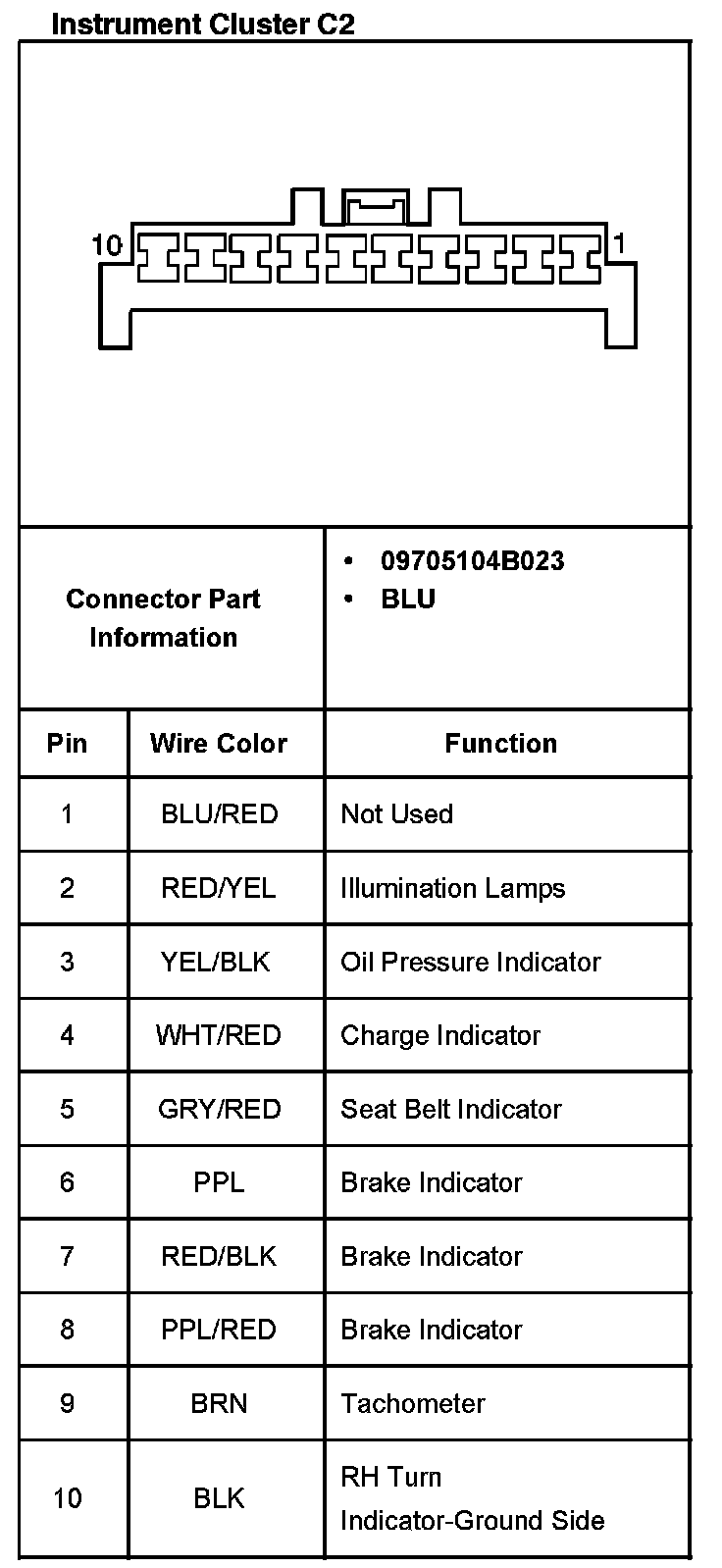

Instrument Cluster C2:

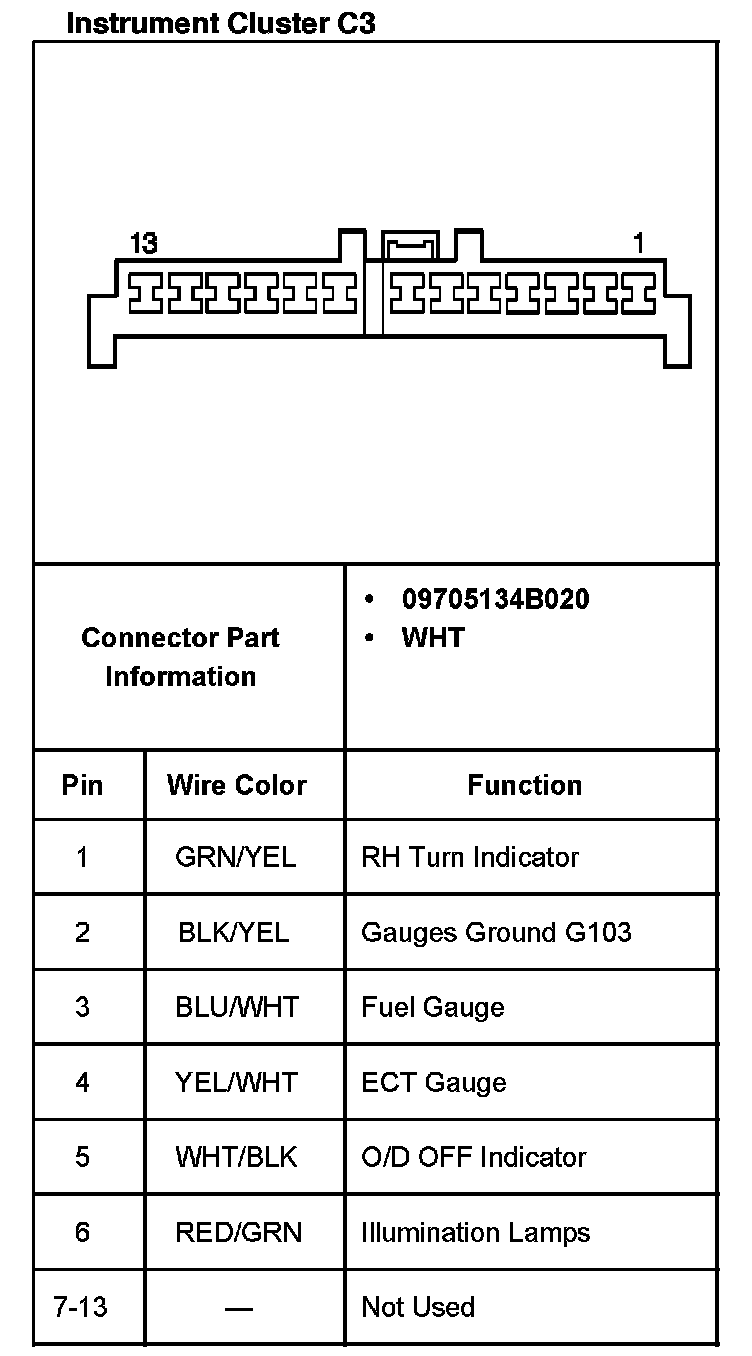

Instrument Cluster C3:
