Brake Pressure Modulator Valve
Brake Pressure Modulator Valve

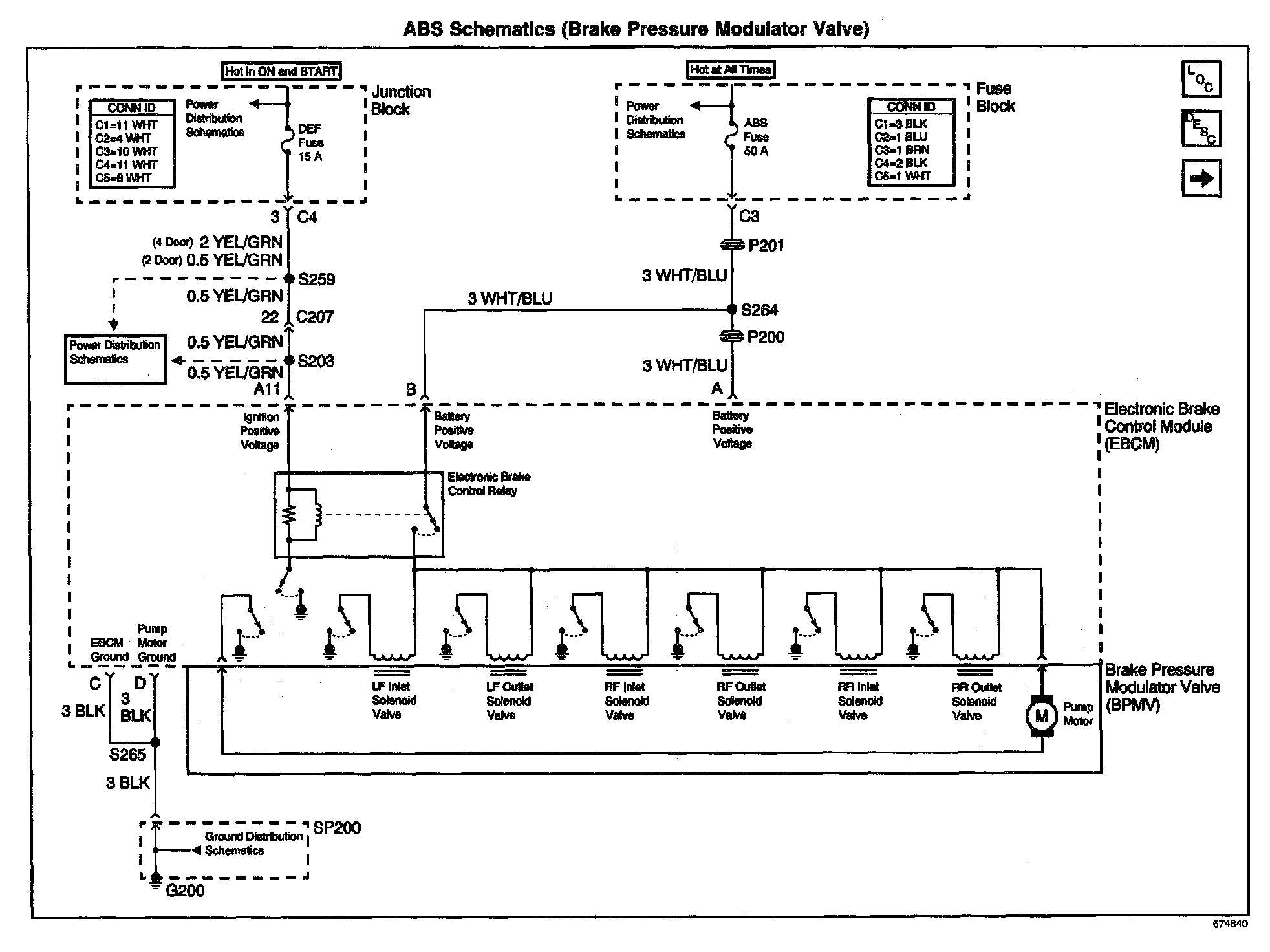

ABS Schematics: Brake Pressure Modulator Valve:
