System Diagram

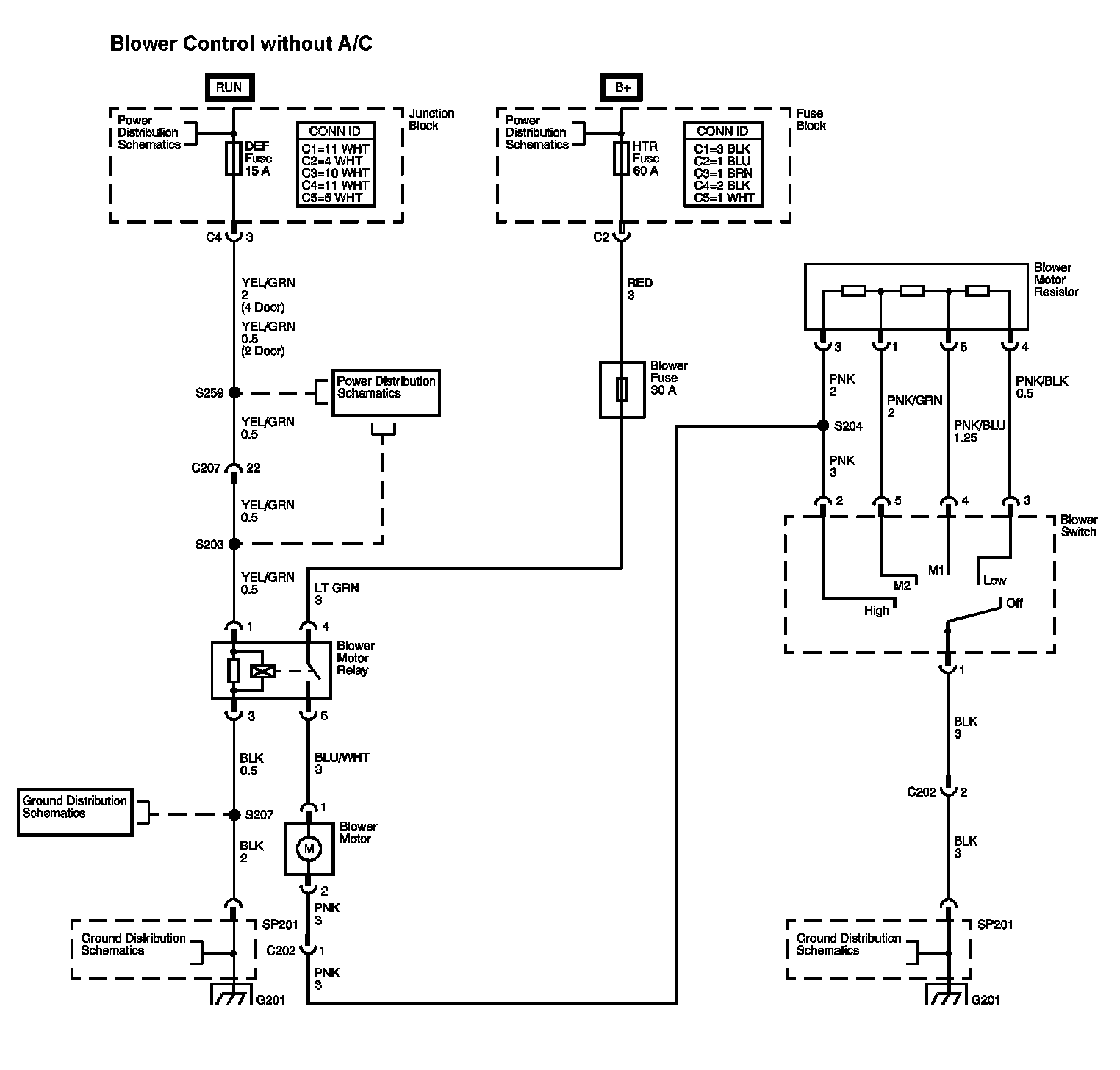

HVAC Diagram 1:

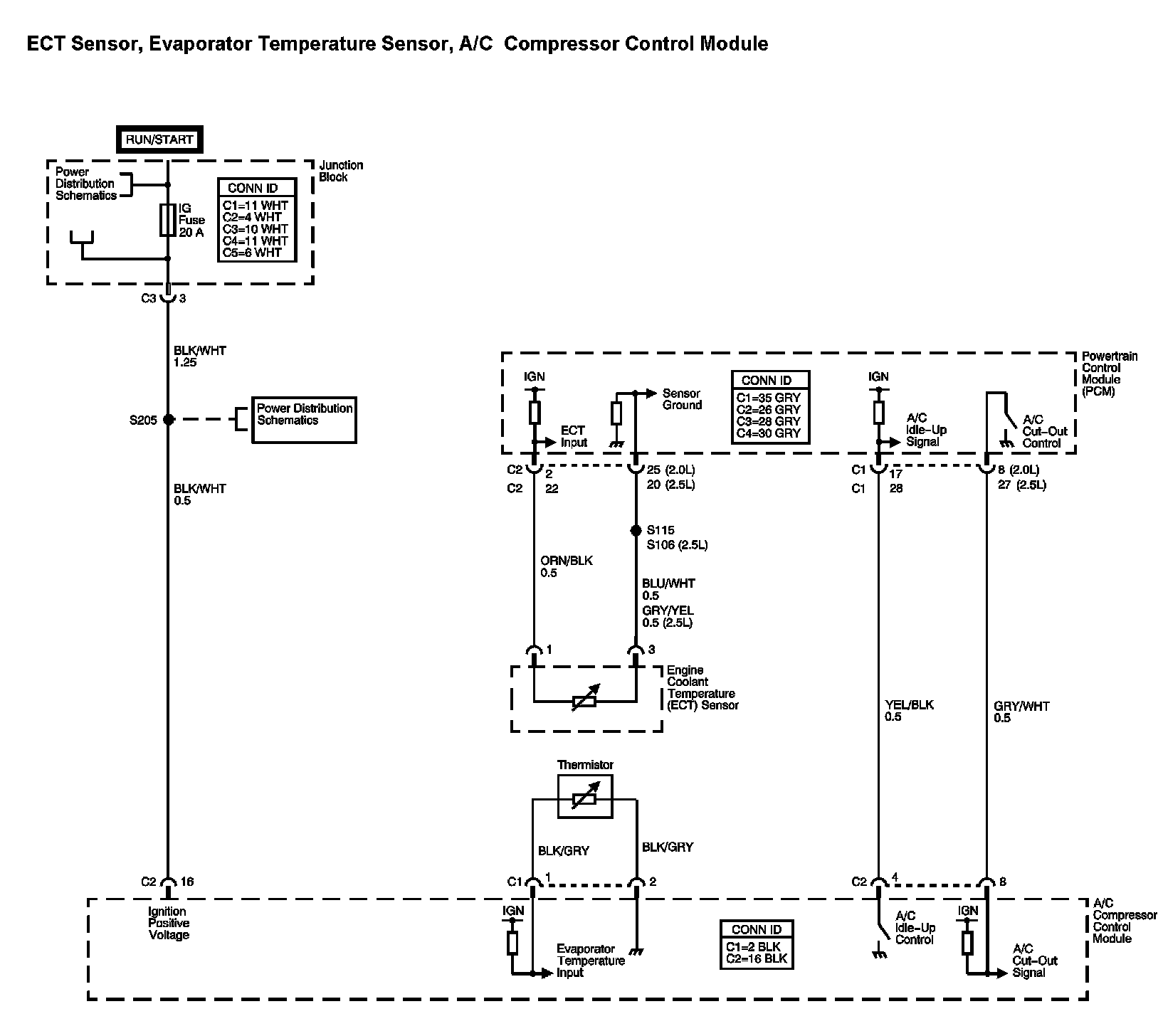

HVAC Diagram 2:




HVAC Diagram 3:




HVAC Diagram 4:




HVAC Diagram 5:
