Home >> Chevy Truck >> 2003 >> Tracker 4WD L4-2.0L VIN C >> Repair and Diagnosis >> Diagrams >> Harness >> Door Harnesses Views >> Back Door Harness (4-DR)

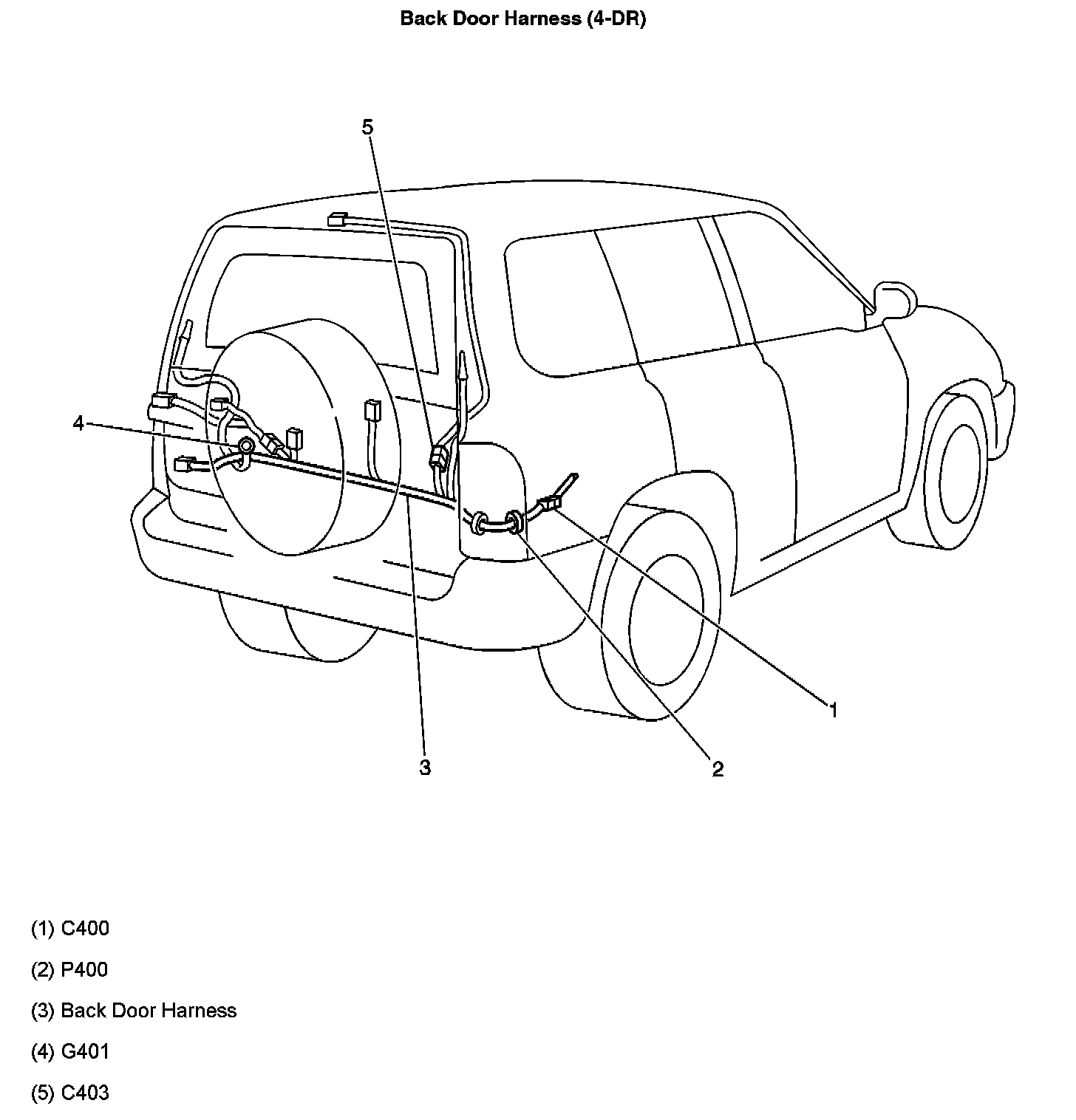

Back Door Harness (4-DR)

Back Door Harness (4-DR):
