Home >> Chevy Truck >> 2003 >> Tracker 4WD L4-2.0L VIN C >> Repair and Diagnosis >> Diagrams >> Harness >> Floor Harness Views >> Floor Harness (4-DR)

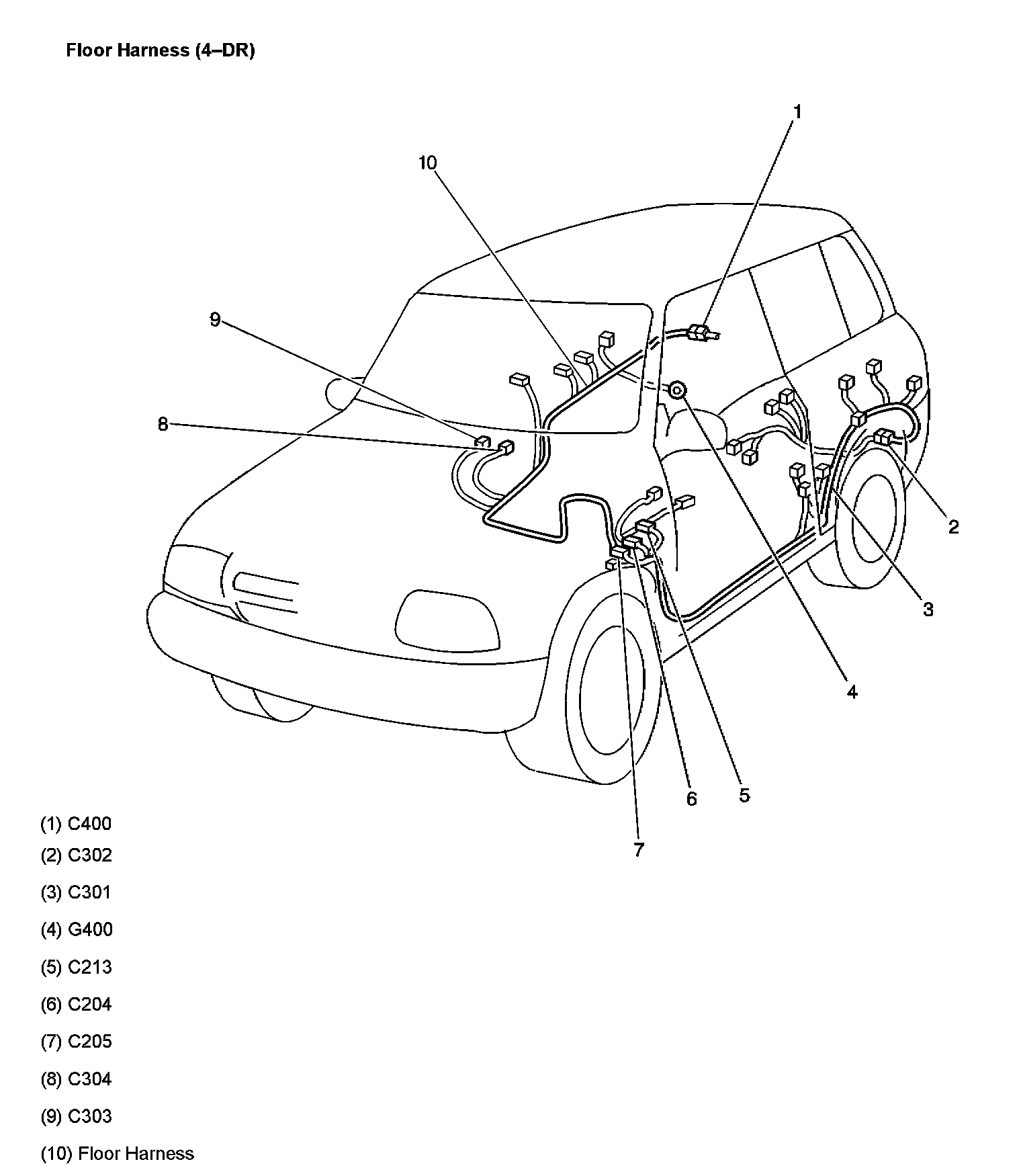

Floor Harness (4-DR)

Floor Harness (4-DR):
