Home >> Chevy Truck >> 2003 >> Tracker 4WD L4-2.0L VIN C >> Repair and Diagnosis >> Diagrams >> Splices >> Splice/Splice Packs By Number >> S200 - S299 >> S260

S260

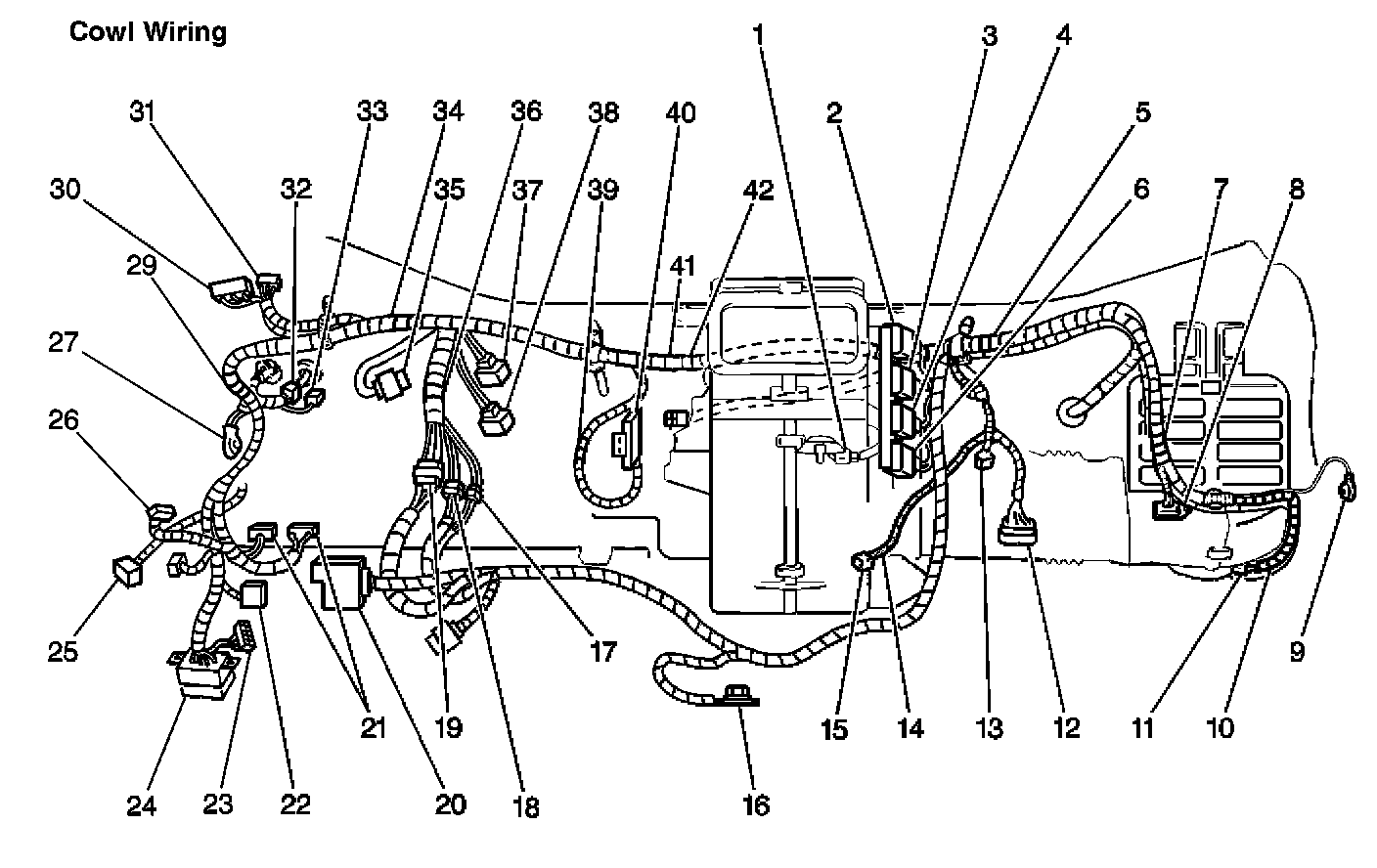

Cowl Wiring Part 1:

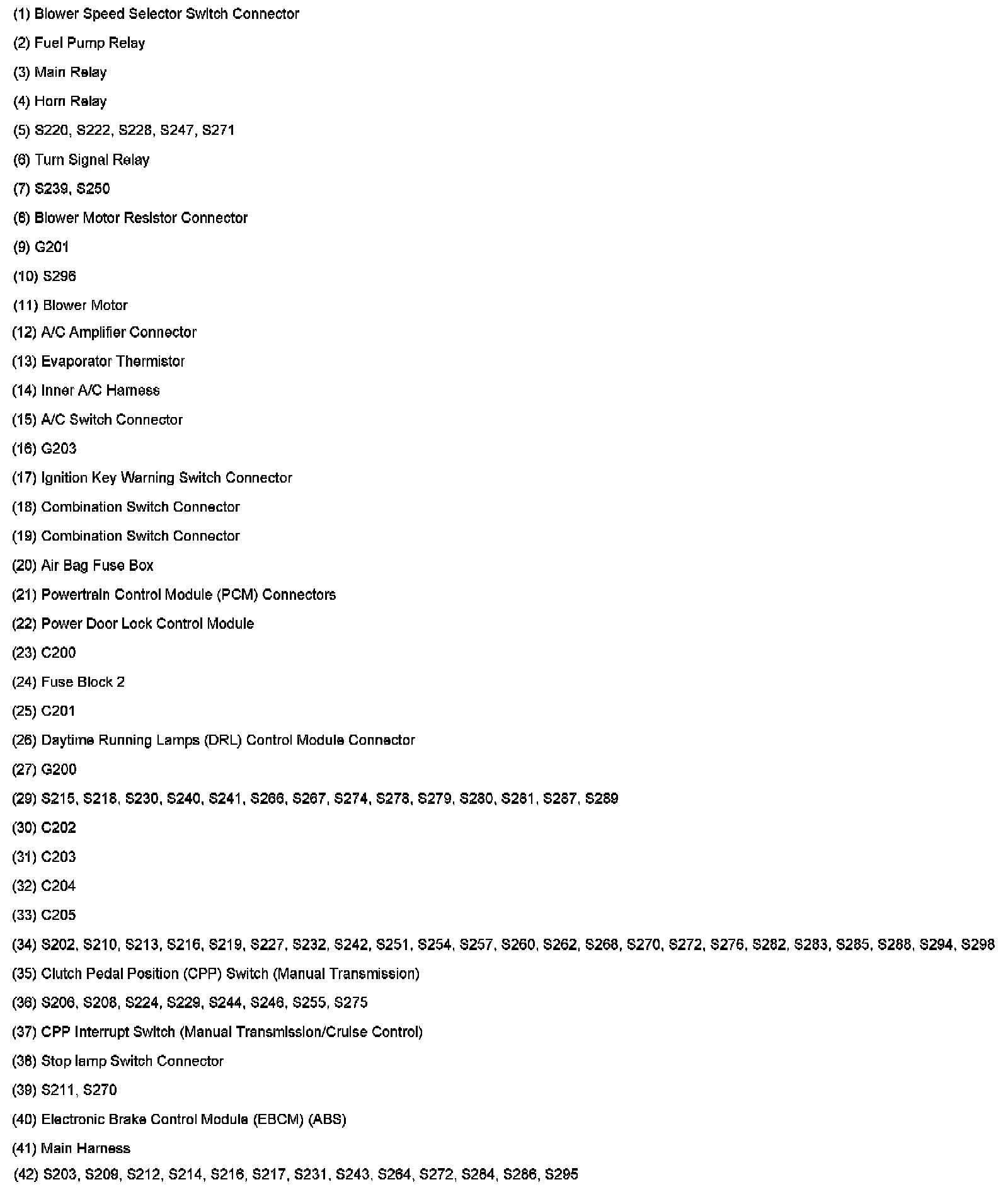

Cowl Wiring Part 2:
