Blower Motor: Service and Repair

BLOWER MOTOR REPLACEMENT

REMOVAL PROCEDURE
1. Disconnect the negative battery cable.

CAUTION:
- Refer to SIR Caution in Service Precautions.
- Refer to Battery Disconnect Caution in Service Precautions.

2. Disconnect the blower motor electrical connector.
3. Remove the PCM.

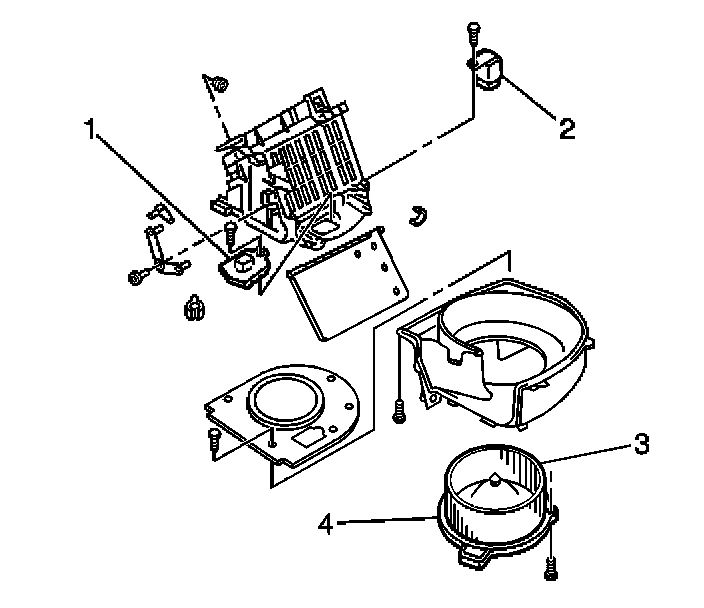

4. Remove 3 screws and the blower motor and fan (4) from the blower case.
5. If necessary to remove the blower case, refer to Heater Case Replacement.

INSTALLATION PROCEDURE




1. Install the blower motor and fan (4) to the blower case. Secure the blower motor with 3 screws.
2. Install the PCM.
3. Connect the blower motor electrical connector.
4. Connect the negative battery cable.
