Instrument Panel (IP) - Air Deflector/Louver - Center

DEFLECTOR REPLACEMENT - INSTRUMENT PANEL AIR - CENTER

REMOVAL PROCEDURE

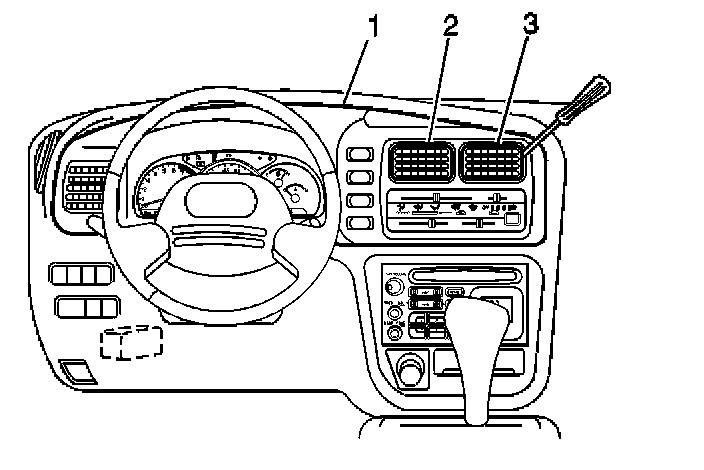

1. Using a taped flat bladed tool, gently pry and release the tab on each side of the center vent louver (2 or 3).
2. Remove the center vent louver (2 or 3) from the instrument cluster trim plate (1).

INSTALLATION PROCEDURE




Install the center vent louver (2 or 3) to the instrument cluster trim plate (1) by inserting straight in,until the tabs engage.
