High Mount Stop Lamp Bracket Replacement

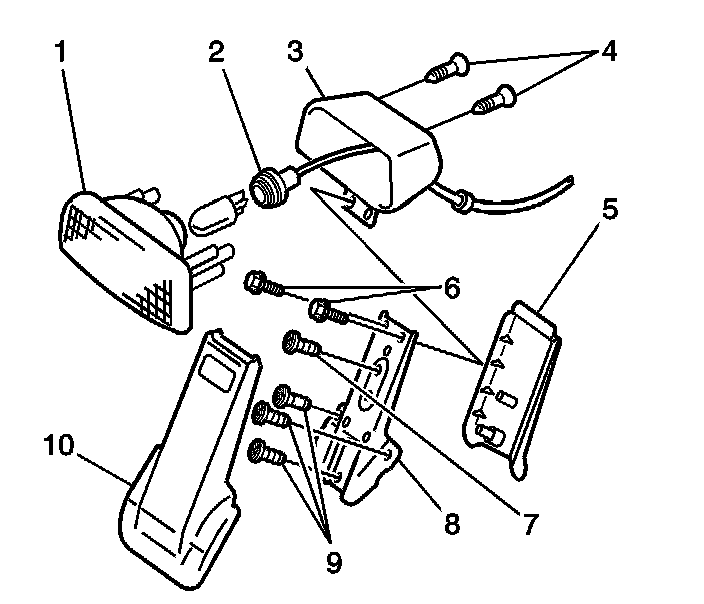

HIGH MOUNT STOP LAMP BRACKET REPLACEMENTREMOVAL PROCEDURE
1. Remove the high mount stop lamp bracket front cover (10) from the high mount stop lamp bracket (8).
2. Remove the high mount stop lamp bracket screws (9).
3. Remove high mount stop lamp bracket (8) from the end gate.
4. Remove the high mount stop lamp bracket rear cover screw (7).
5. Remove the high mount stop lamp bracket rear cover (5) from the high mount stop lamp bracket (8).
6. Remove the high mount stop lamp housing screws (6) and move the stop lamp housing (3) to the side.
INSTALLATION PROCEDURE
1. Install the high mount stop lamp housing (3) to the high mount stop lamp bracket (8).
2. Secure the high mount stop lamp housing (3) with the high mount stop lamp housing screws (6).
3. Install the high mounted stop lamp bracket rear cover (5) to the high mount stop lamp bracket (8).
4. Secure the high mount stop lamp bracket rear cover (5) with the high mount stop lamp bracket rear cover screw (7).
5. Install the high mount stop lamp bracket (8) to the end gate and secure with the screws (9).
6. Install the high mount stop lamp bracket front cover (10) to the high mount stop lamp bracket (8).
