High Mounted Stop Lamp Replacement (2 Door)

HIGH MOUNTED STOP LAMP REPLACEMENT (2 DOOR)

REMOVAL PROCEDURE




1. Open the rear door.

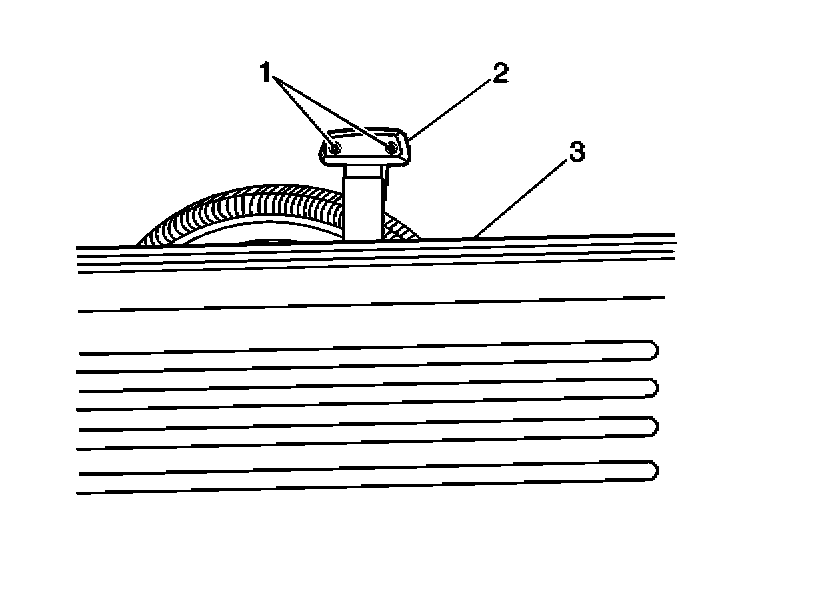

2. Remove the 2 screws (1) which secure the high mounted stop lamp (2).

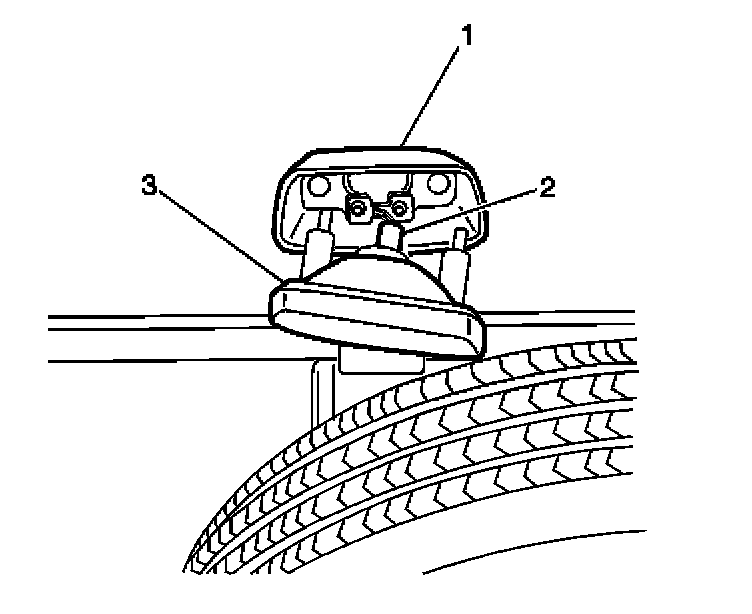

3. Pull the stop lamp (3) from the high mounted stop lamp housing (1).
4. Remove the stop lamp bulb socket (2) from the stop lamp (3).
5. Remove the bulb from the socket (2), if necessary.

INSTALLATION PROCEDURE




1. Install the bulb to the socket (2), if removed.
2. Install the high mounted stop lamp bulb socket (2) to the stop lamp (3).
3. Install the stop lamp (3) to the housing (1).

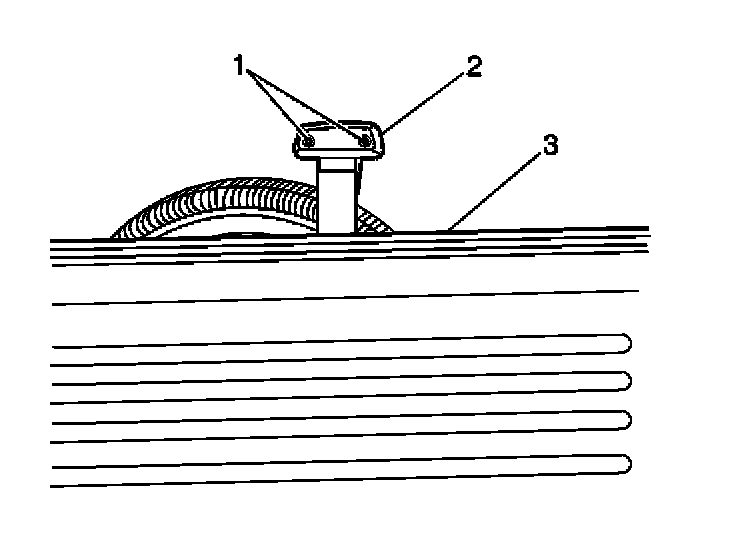

4. Install the 2 screws (1) which secure the stop lamp (2) to the housing.
5. Close the rear door.
