Chevy Truck
>>
2003
>>
Tracker 4WD L4-2.0L VIN C
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Seat Belt Systems
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

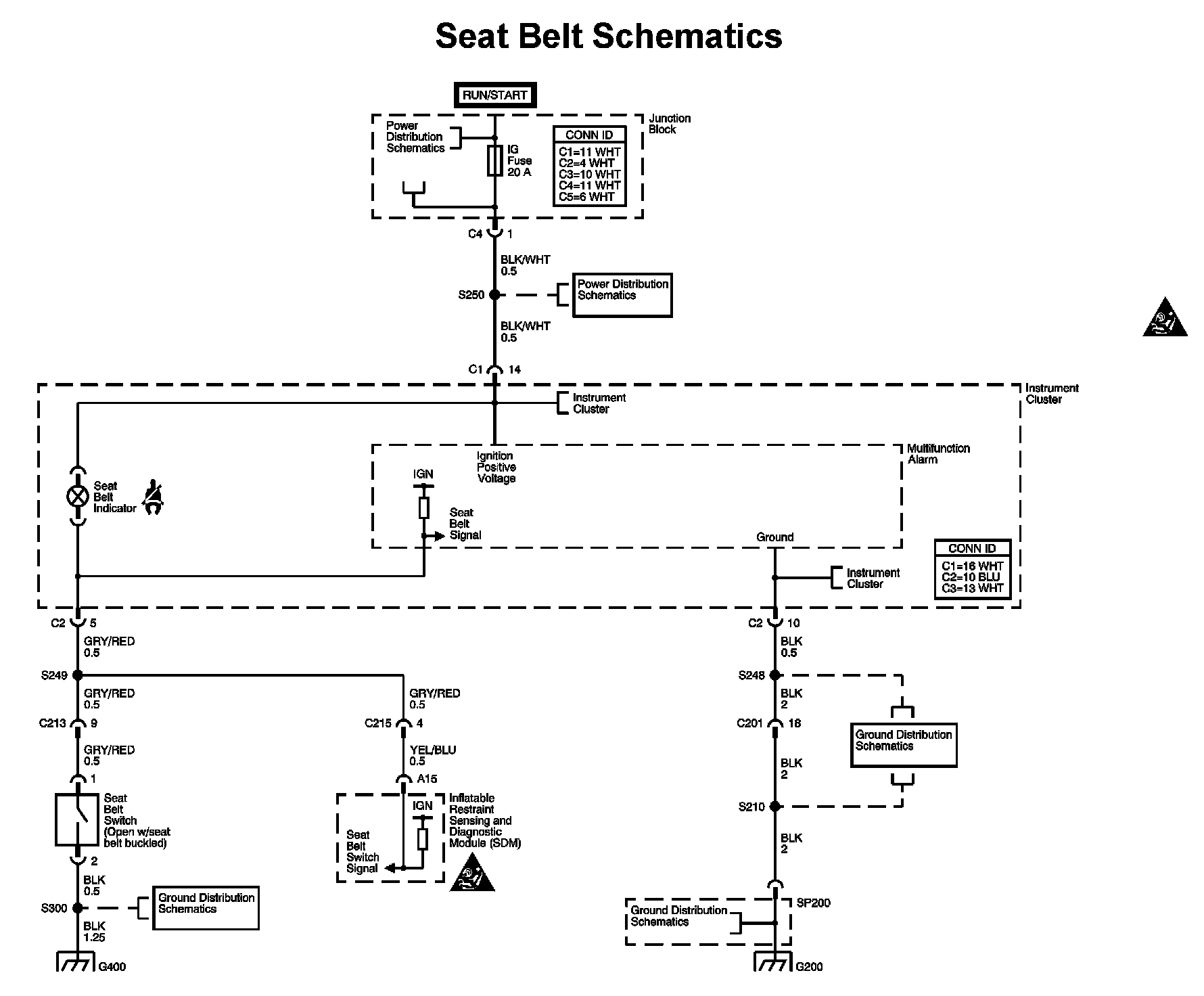

Seat Belt Diagram:
