Wheel Speed Sensor: Diagrams

ABS Connector End Views

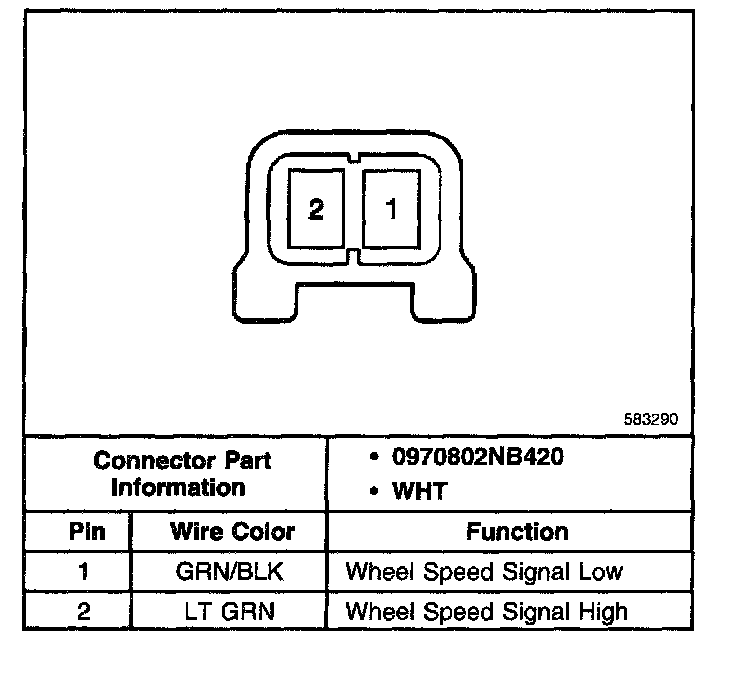

LF Wheel Speed Sensor





LR Wheel Speed Sensor





RF Wheel Speed Sensor





RR Wheel Speed Sensor
