P0161
CIRCUIT DESCRIPTIONThe DTC P0161 Heated Oxygen Sensor (HO2S) Heater Performance Bank 2 Sensor 2 diagnostic monitors the operation of the heater of the bank 2 HO2S 2. The heated oxygen sensors (HO2S) increase the amount of time the sensor spends in Closed Loop fuel control operation or catalyst monitoring operation. The oxygen sensor heater greatly reduces the amount of time required for the fuel control HO2S to become active. The oxygen sensor heater is required by the post-catalyst HO2S in order to maintain the high operating temperatures. The heater helps provide accurate oxygen content readings of the engine exhaust by the HO2S.
CONDITIONS FOR RUNNING THE DTC
The engine is running.
CONDITIONS FOR SETTING THE DTC
- The current of the HO2S heater is more than 5.3 amps or less than 0.15 amps when the heater is ON.
- The voltage of the HO2S heater is more than 13.8 volts or less than 8.7 volts when the heater is ON.
- The voltage of the HO2S heater is 6 volts with the heater OFF.
- One of the above conditions is present for 3 seconds.
ACTION TAKEN WHEN THE DTC SETS
- The powertrain control module (PCM) illuminates the malfunction indicator lamp (MIL) after 2 consecutive ignition cycles in which the diagnostic runs with the fault active.
- The PCM records the operating conditions at the time the diagnostic fails. This information is stored in the Freeze Frame buffer.
CONDITIONS FOR CLEARING THE MIL/DTC
- The MIL turns OFF after 3 consecutively passing trips without a fault present.
- A history DTC will clear after 40 consecutive warm-up cycles without a fault.
- Perform the scan tool Clear DTC Information function in order to clear the DTC.
DIAGNOSTIC AIDS
1. Check the resistance of the HO2S relay. The resistance across terminal 3 and terminal 4 is 79-95 ohms at 20°C (68°F). The resistance across terminal 1 and terminal 2 is infinite.
2. The HO2S relay electrical contacts may be pitted or sticking. Replace the HO2S relay if tapping gently on the relay or wiggling the relay causes a change in the relay's operation.
3. The performance of the HO2S relay may be affected by temperature. Check the HO2S relay after sitting outside overnight and after running the engine 30 minutes.
4. If a DTC P0161 is intermittent, driving the vehicle under the conditions outlined in the Inspection/Maintenance (I/M) section can verify whether the fault is present. Refer to Inspection/Maintenance (I/M) Heated Oxygen Sensor (HO2S) Heater System Set Procedure. I/M HO2S/O2S System Set
An intermittent malfunction may be caused by a problem in the HO2S 2 sensor electrical circuit. Inspect the wiring harness and components for an intermittent condition. Refer to Intermittent Conditions. Intermittent Conditions
If the DTC P0161 cannot be duplicated, the information included in the Freeze Frame data can be useful in determining vehicle operating conditions when the DTC was first set.
Use the relay cavity table in order to locate the correct cavities to probe during diagnosis. The table layout corresponds to the cavity layout of the relay connector.
TEST DESCRIPTION
Steps 1-4:

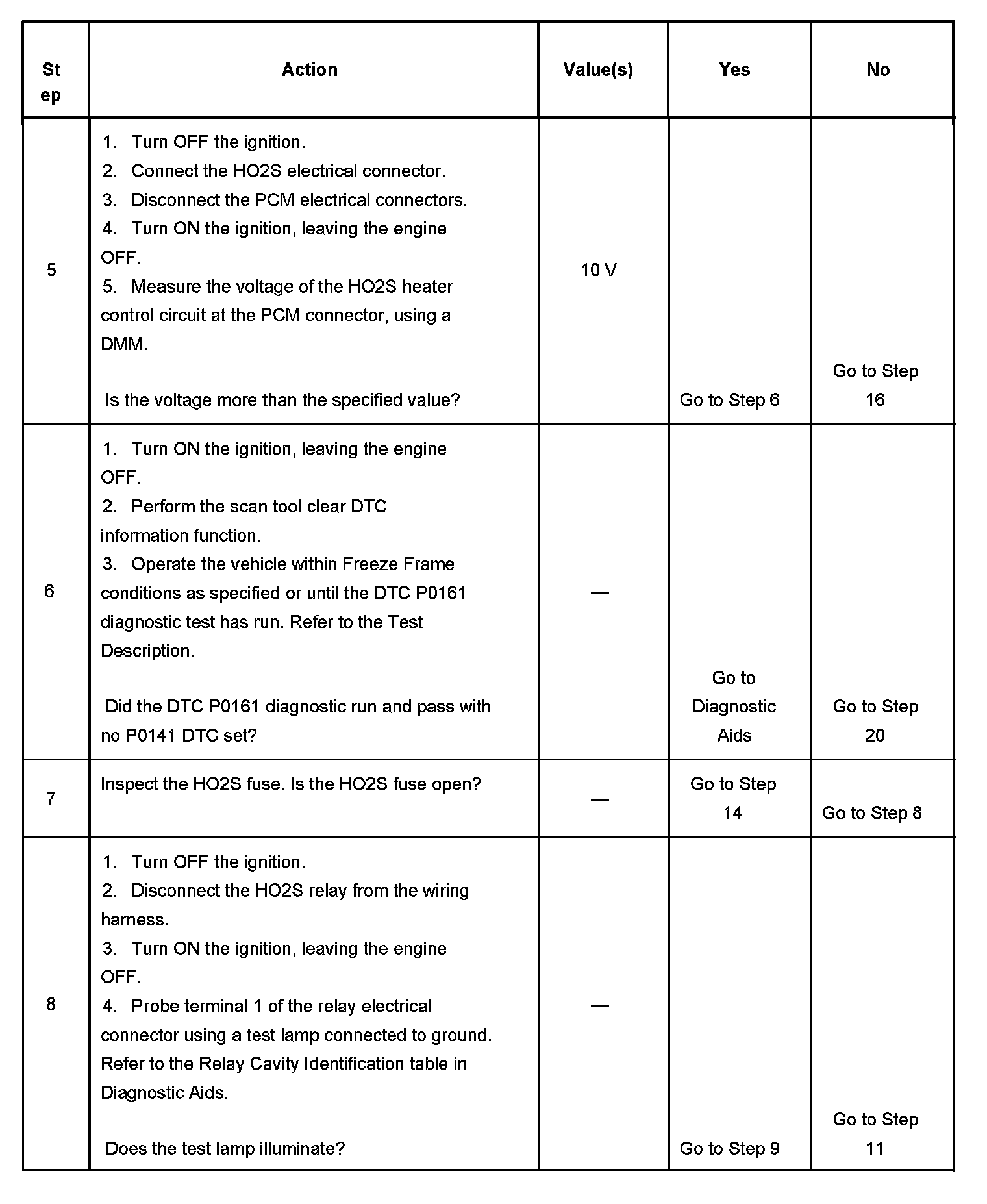

Steps 5-8:

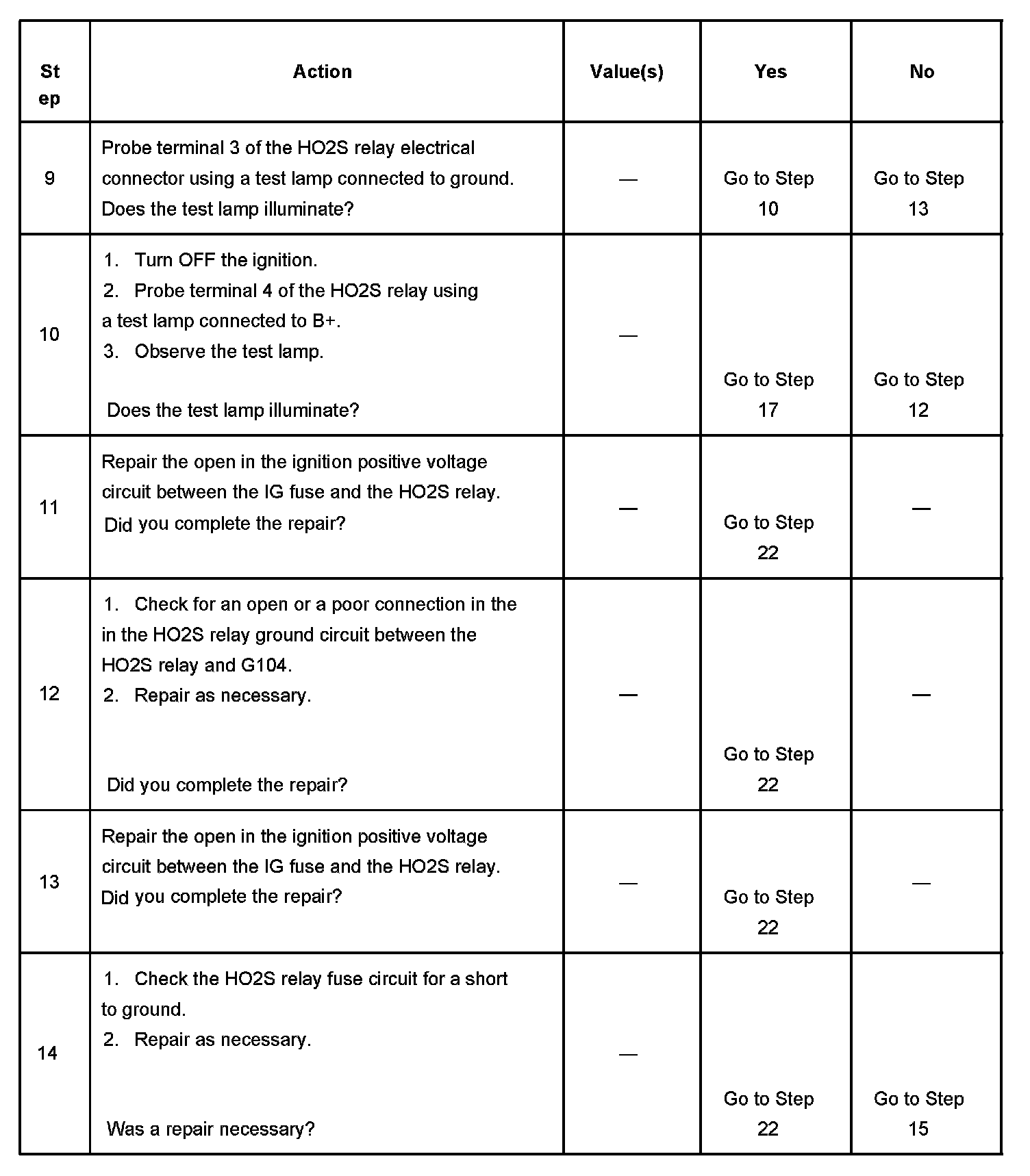

Steps 9-14:

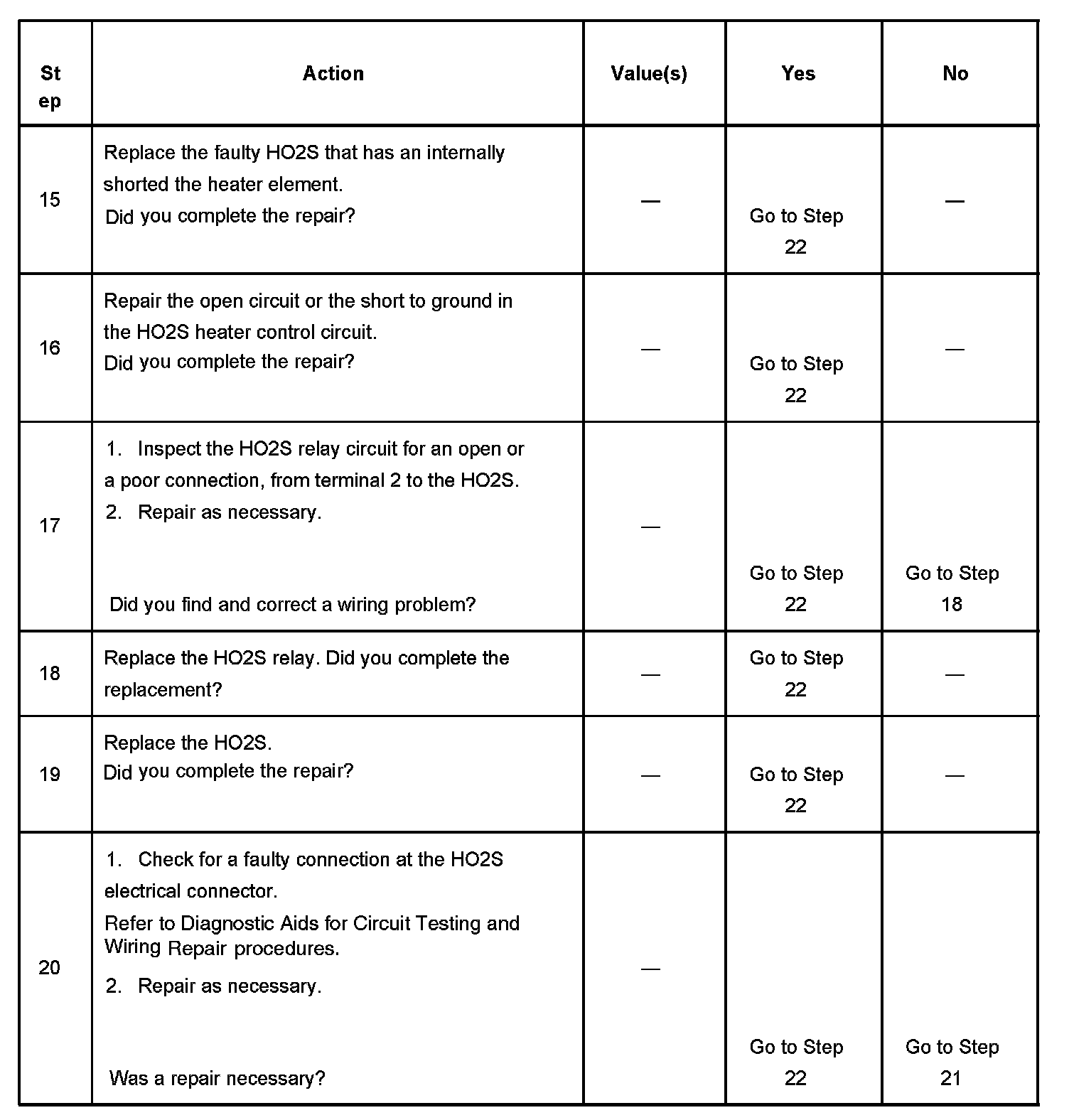

Steps 15-20:
Steps 21-23:
The numbers below refer to the step numbers in the diagnostic table.
1. The Diagnostic System Check-Computers and Control Systems prompts the technician to complete some basic checks and store the Freeze Frame data on the scan tool if applicable. This creates an electronic copy of the data taken when the fault occurred. The information is then stored in the scan tool for later reference.
4. This step measures the resistance of the heater circuit of the HO2S.
6. This step checks whether the malfunction that caused the DTC is still present. Driving the vehicle under these conditions will verify whether the fault is present. After performing the scan tool clear DTC information function, the DTC P0161 diagnostic can be monitored on the scan tool under the Not Ran Since Code Cleared selection in the DTC Information menu. If a DTC P0161 appears in the Not Ran Since Code Cleared list, the diagnostic has not yet run. When the DTC does not appear in the Not Ran Since Code Cleared list, the DTC diagnostic has run. If the MIL is NOT illuminated and there is no Pending DTC Status in DTC Information, the DTC diagnostic has passed. The DTCs MUST be cleared in order to view the Current Status of the Not Ran Since Code Cleared list. DO NOT forget that the Not Ran Since Code Cleared list only indicates that the test has run, not whether the test passed or failed. The DTC Information screen must be checked for Current or Pending status, in order to determine the outcome of the diagnostic test involved.
14. This step checks for a short to ground in the HO2S heater circuit. If no problem is found in the HO2S heater circuit, the problem may be a faulty or shorted HO2S.
22. Clearing the DTCs by removing the DOME fuse also clears the PCM long term memory. Using the scan tool to clear DTCs leaves the long term memory active. DTC emitting diagnostics may not run to completion as expected unless the long term memory is cleared. Removal of the DOME fuse also clears the time display of the radio. The DTC P0161 diagnostic can be monitored on the scan tool under the Not Ran Since Code Cleared selection in the DTC Information menu. If a DTC P0161 appears in the Not Ran Since Code Cleared list, the DTC P0161 diagnostic has not yet run. When the DTC P0161 does not appear in the Not Ran Since Code Cleared list, the DTC P0161 diagnostic has run. If the MIL is NOT illuminated, and there is no Pending DTC Status in DTC Information, the DTC P0161 diagnostic has passed. The DTCs MUST be cleared in order to view the Current Status of the Not Ran Since Code Cleared list. DO NOT forget that the Not Ran Since Code Cleared list only indicates that the test has run, not whether the test passed or failed. The DTC Information screen must be checked for Current or Pending status, in order to determine the outcome of the diagnostic test involved.
