Air Distribution Duct Replacement
AIR DISTRIBUTION DUCT REPLACEMENTREMOVAL PROCEDURE
1. Remove the instrument panel (IP).

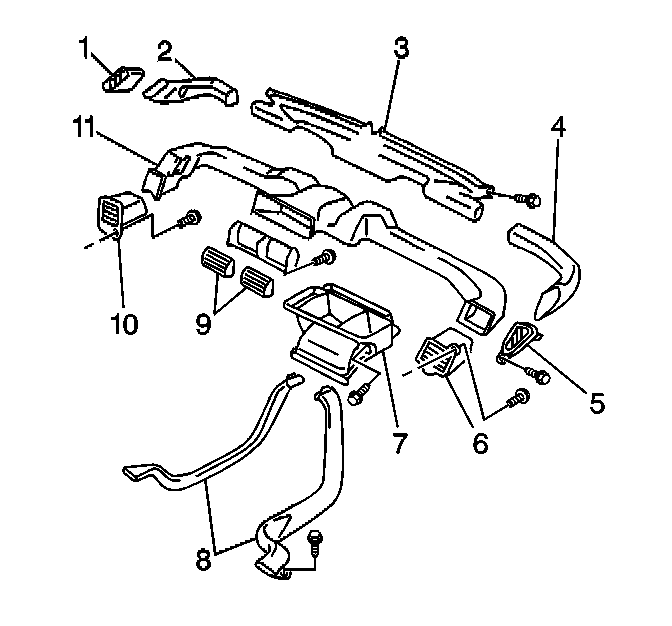

2. Remove the 1 screw and the center air distributor duct (7).
INSTALLATION PROCEDURE

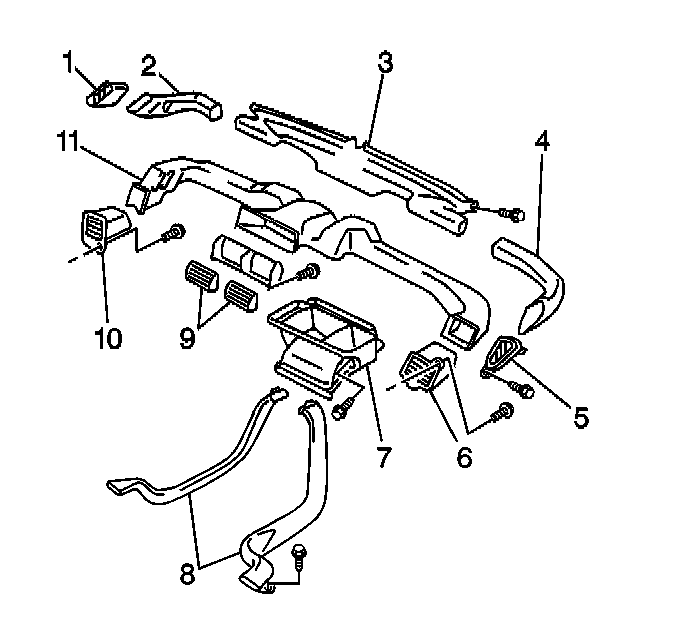

1. Install the center air distributor duct (7). Secure with the screw.
2. Install the IP.
