Home
>>
Chevy Truck
>>
2003
>>
TrailBlazer 2WD V8-5.3L VIN P
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Relay Box
>>
Application and ID
Relay Box: Application and ID

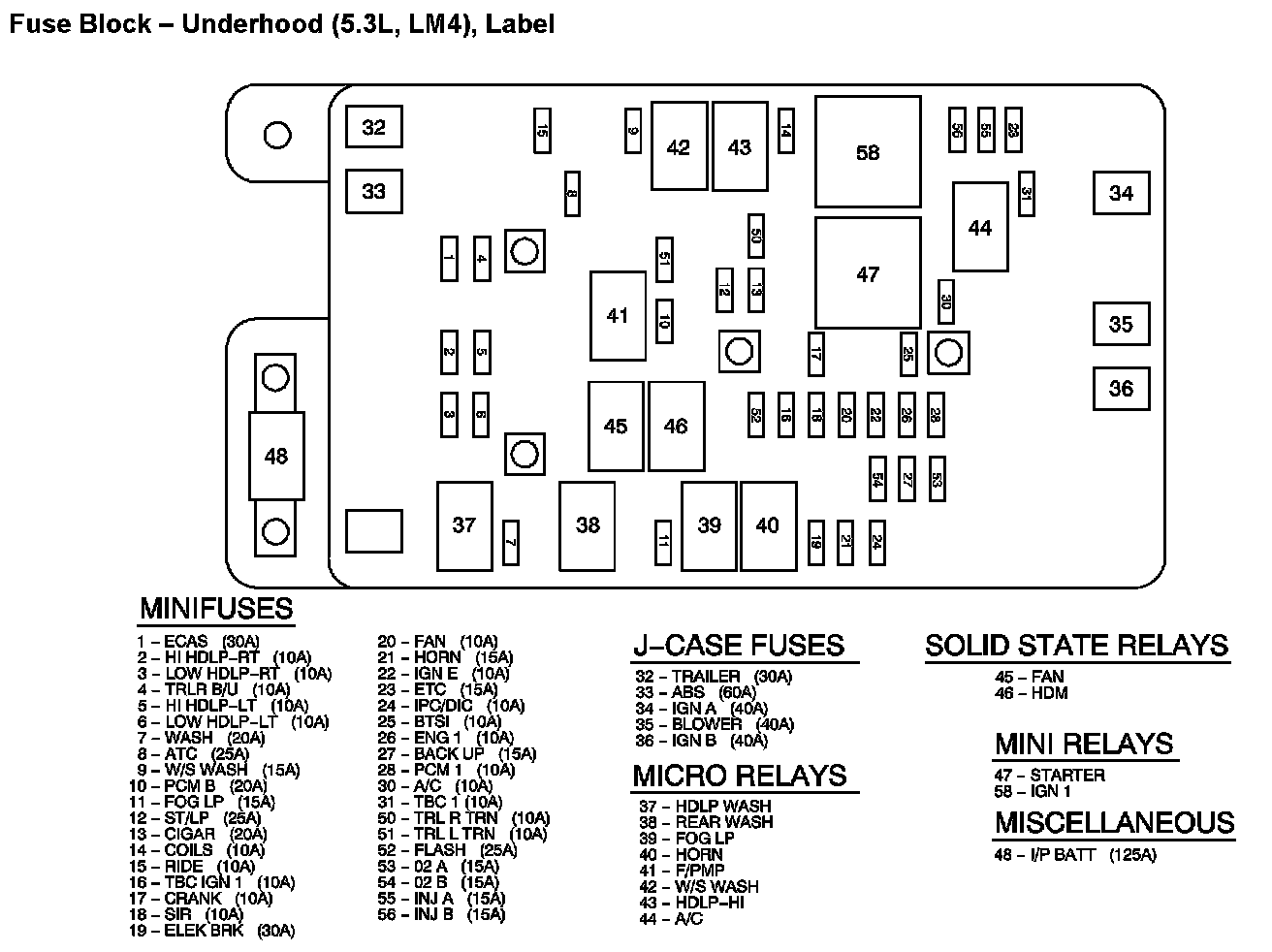

Location View:

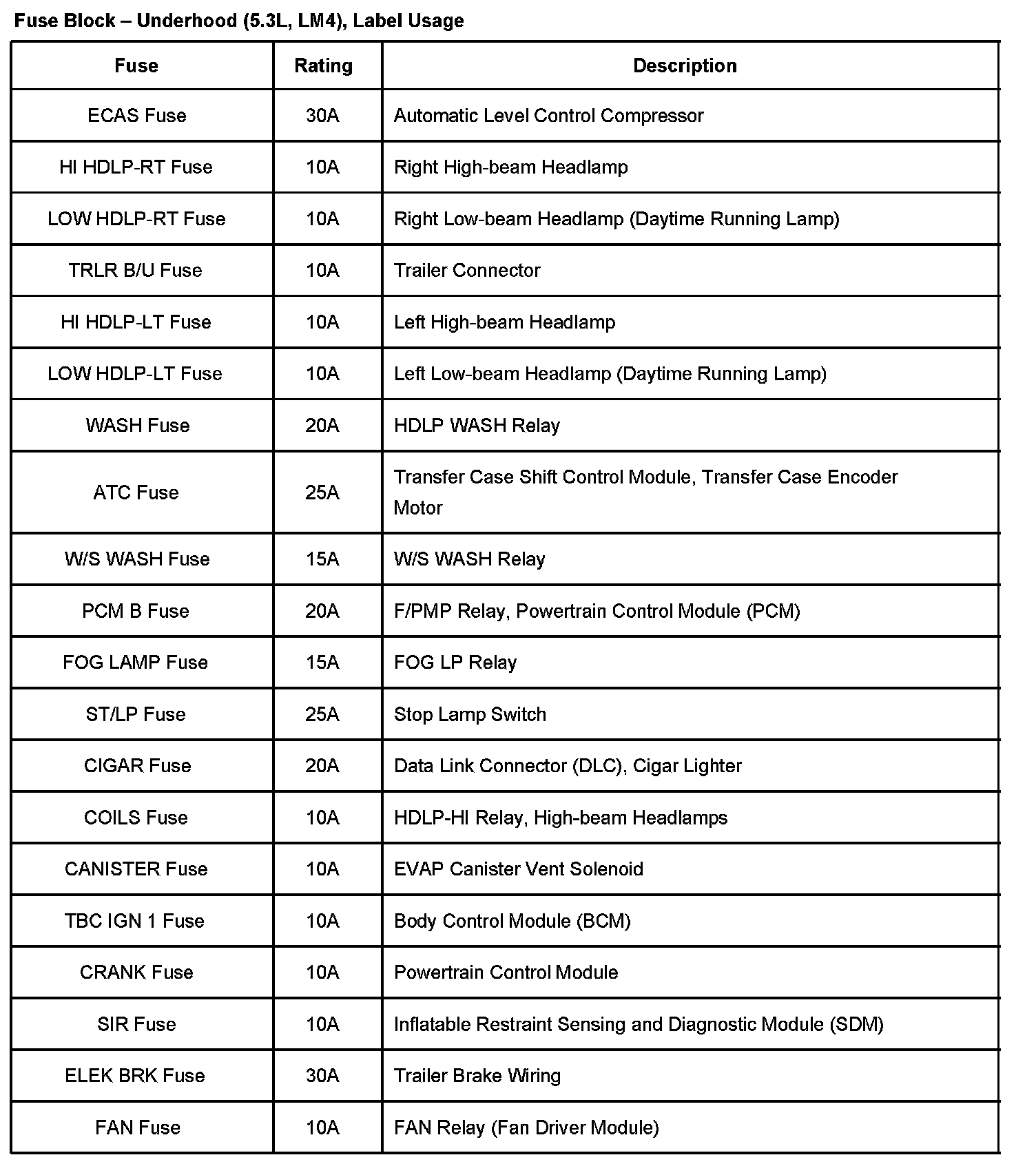

Application Table Part 1:

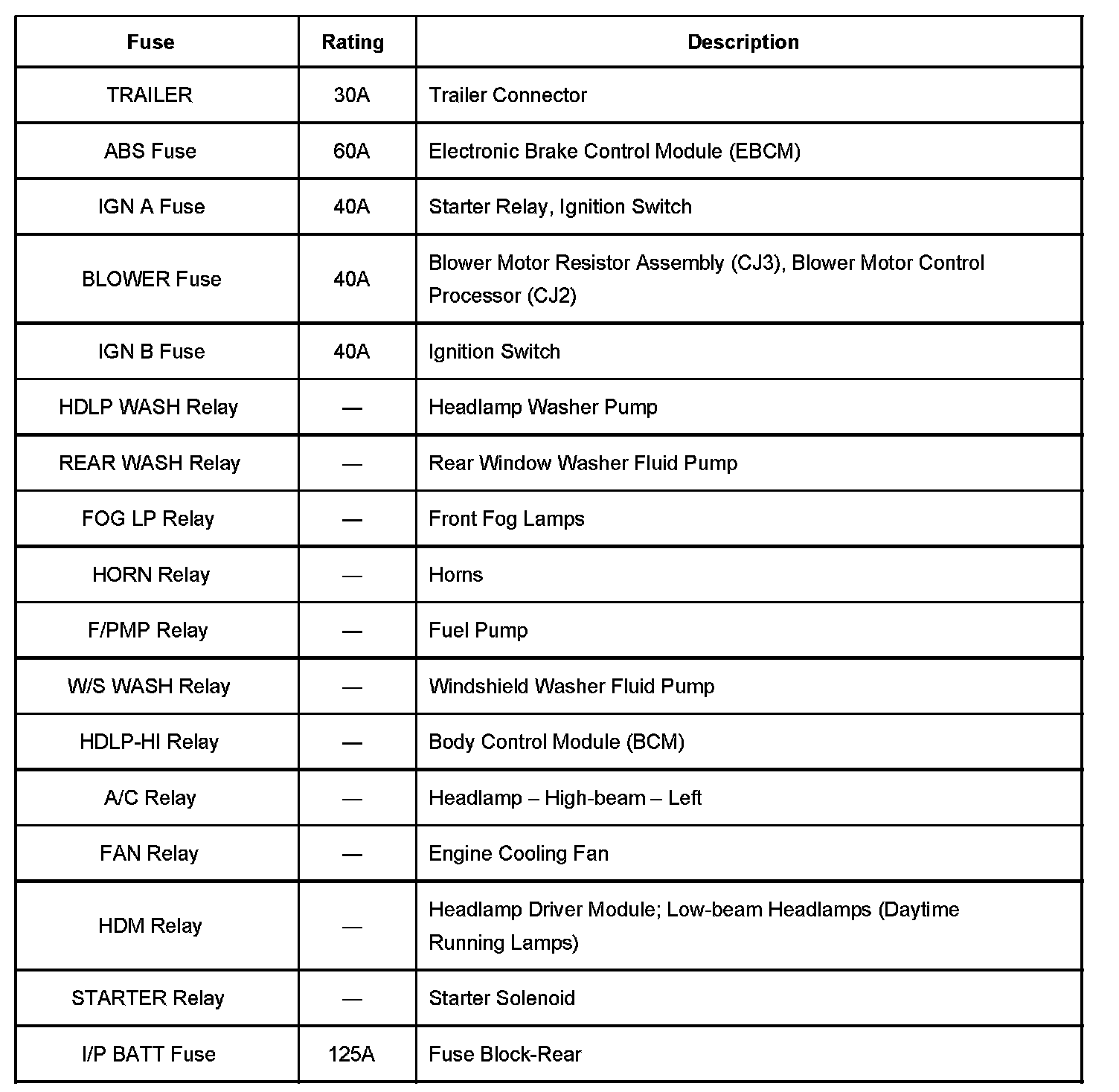

Application Table Part 2:
Application Table Part 3:
Location View:
Location View:
