Home >> Chevy Truck >> 2003 >> TrailBlazer 4WD L6-4.2L VIN S >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Turn Signal Lamps and/or Indicators Inoperative

Turn Signal Lamps and/or Indicators Inoperative

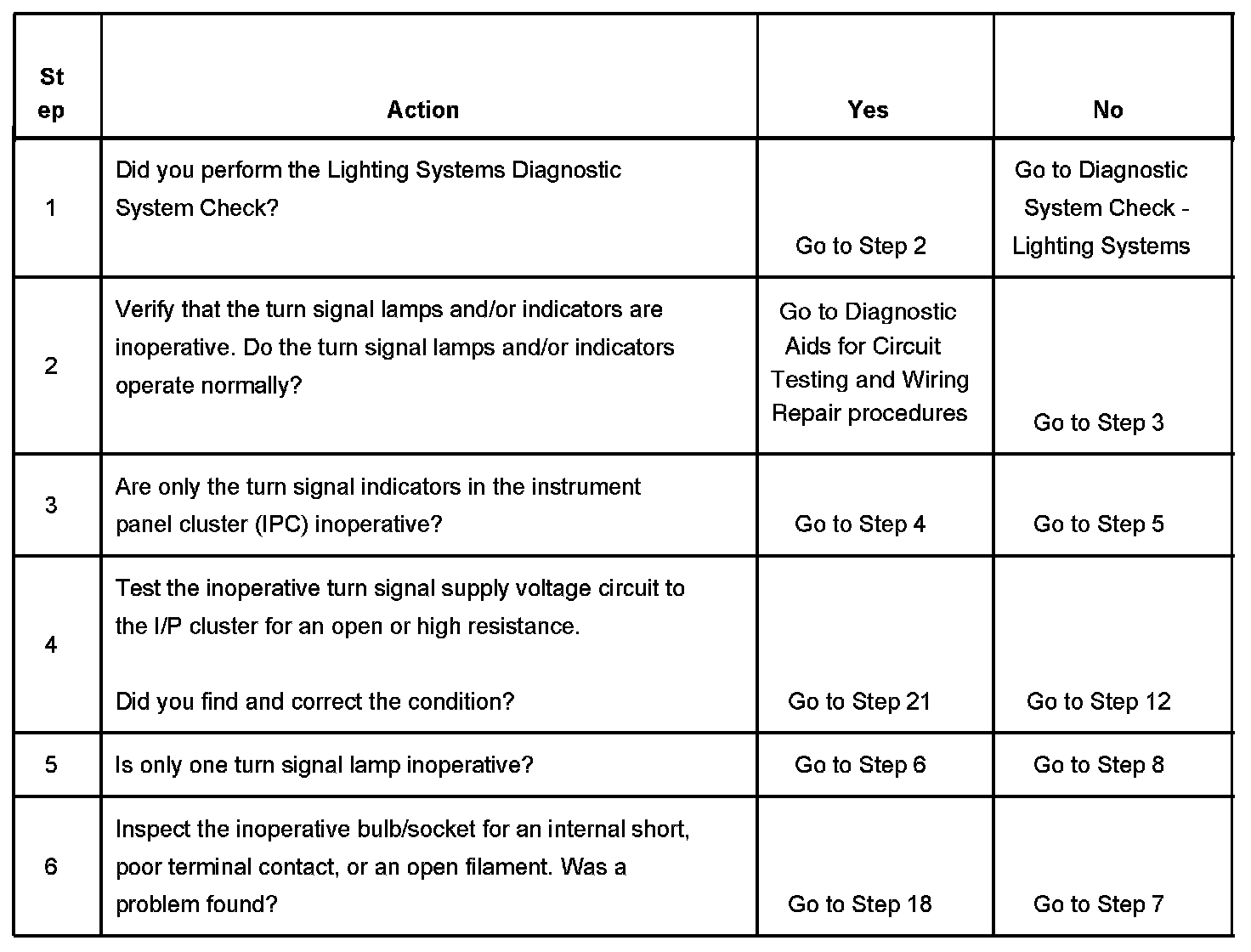

Steps 1-6:

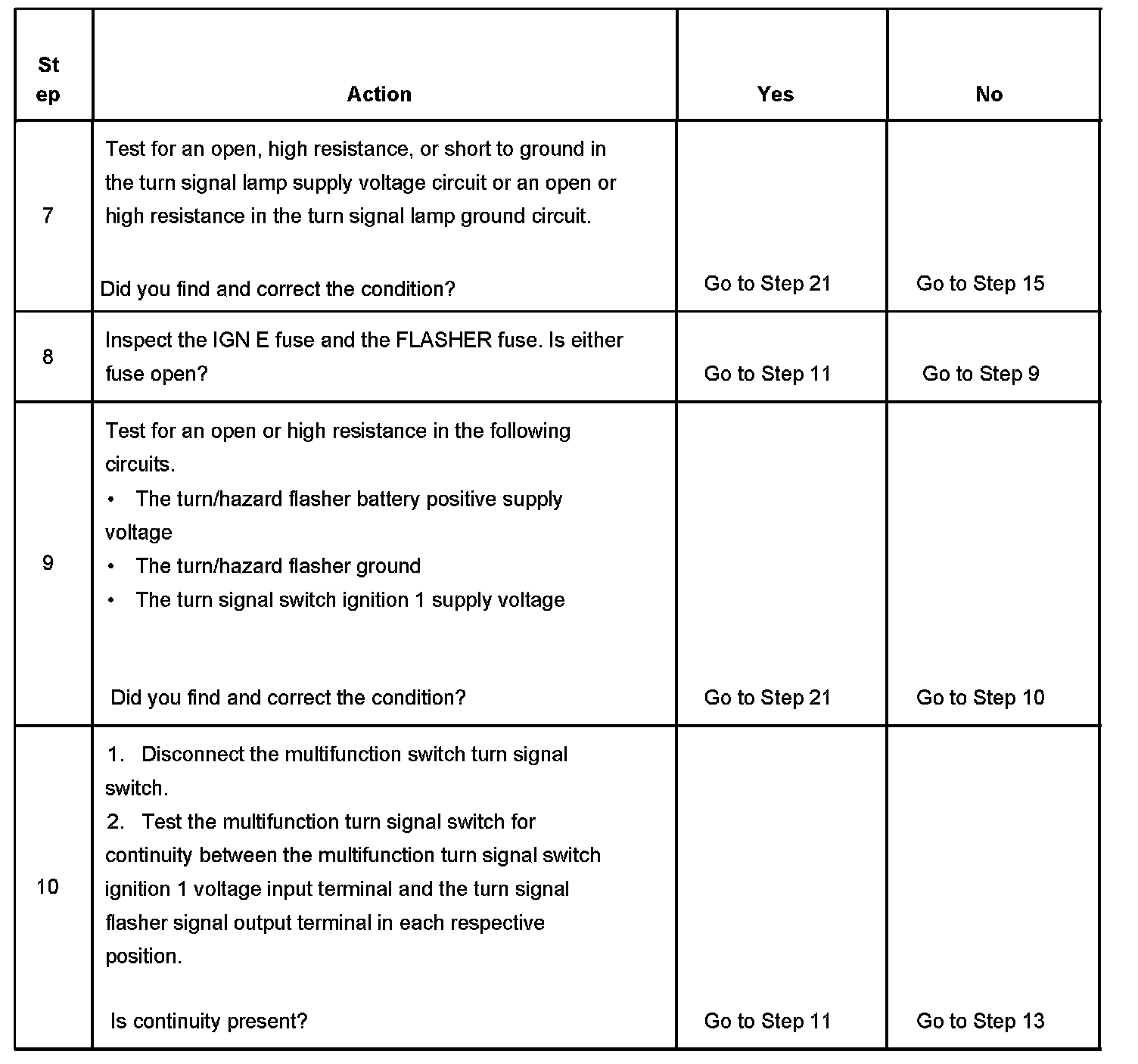

Steps 7-10:



Steps 11-15:

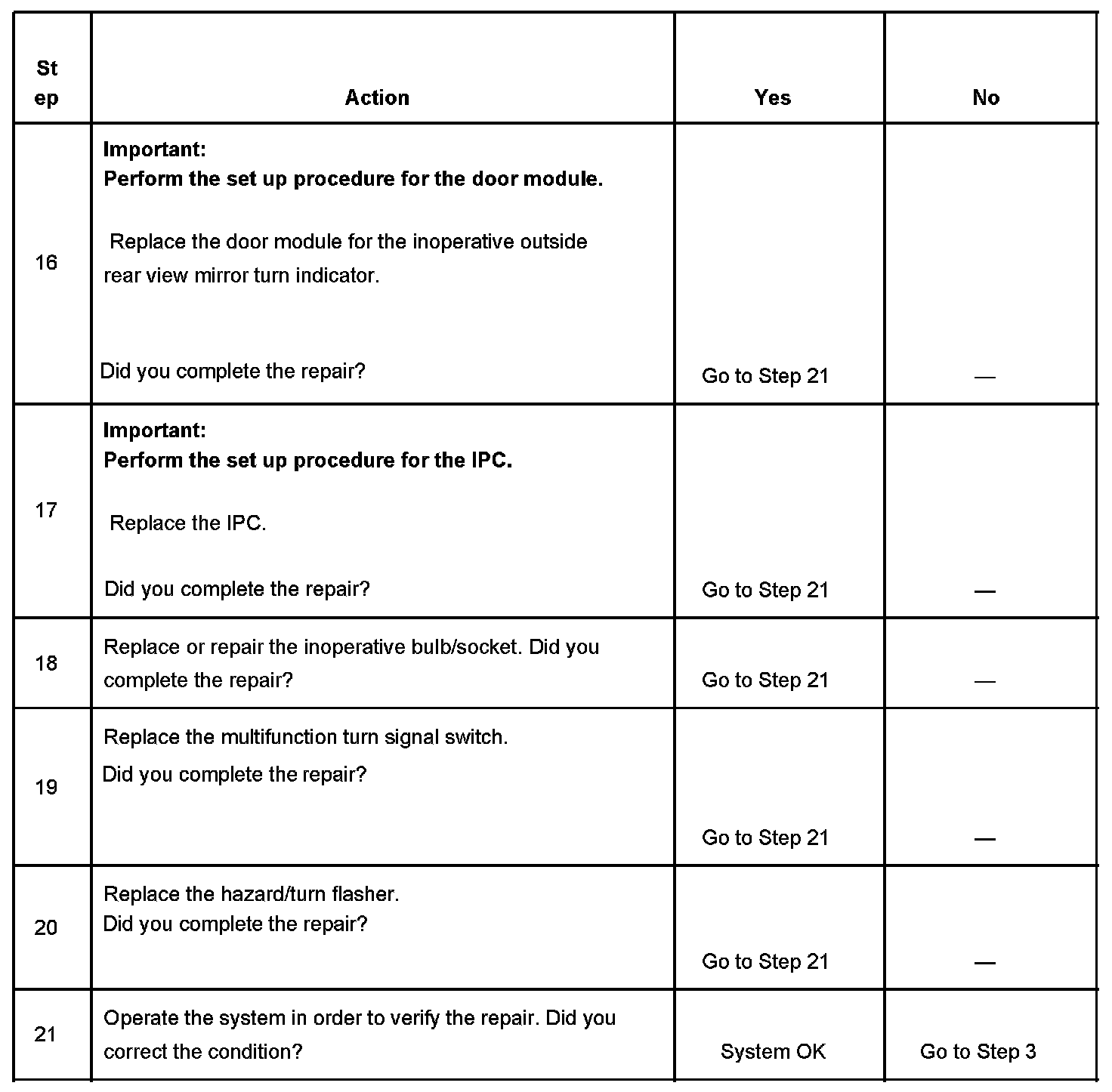

Steps 16-21:
