Refrigerant Pressure Sensor / Switch: Diagrams

A/C Refrigerant Pressure Switch (w/Manual - HVAC System):

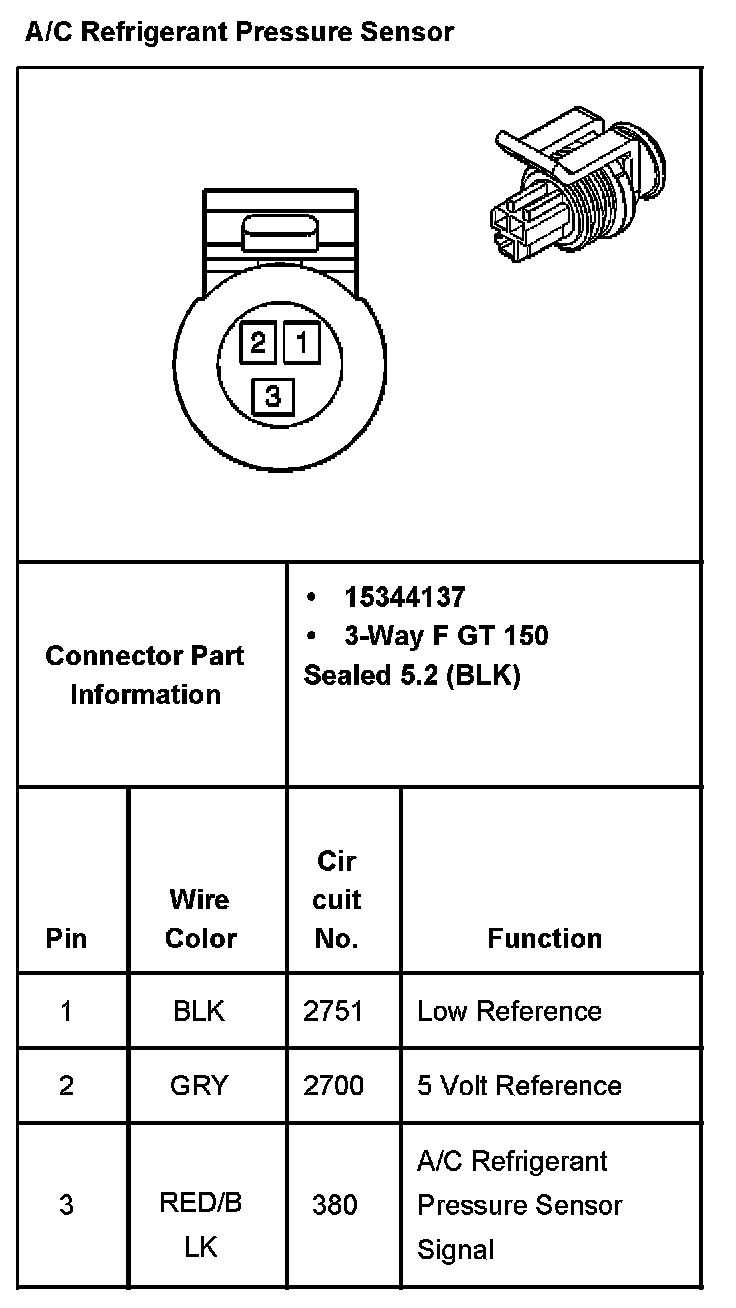

A/C Refrigerant Pressure Sensor (w/Automatic HVAC System):
