Wipers Inoperative - One or More Modes
WIPERS INOPERATIVE - ONE OR MORE MODESTEST DESCRIPTION

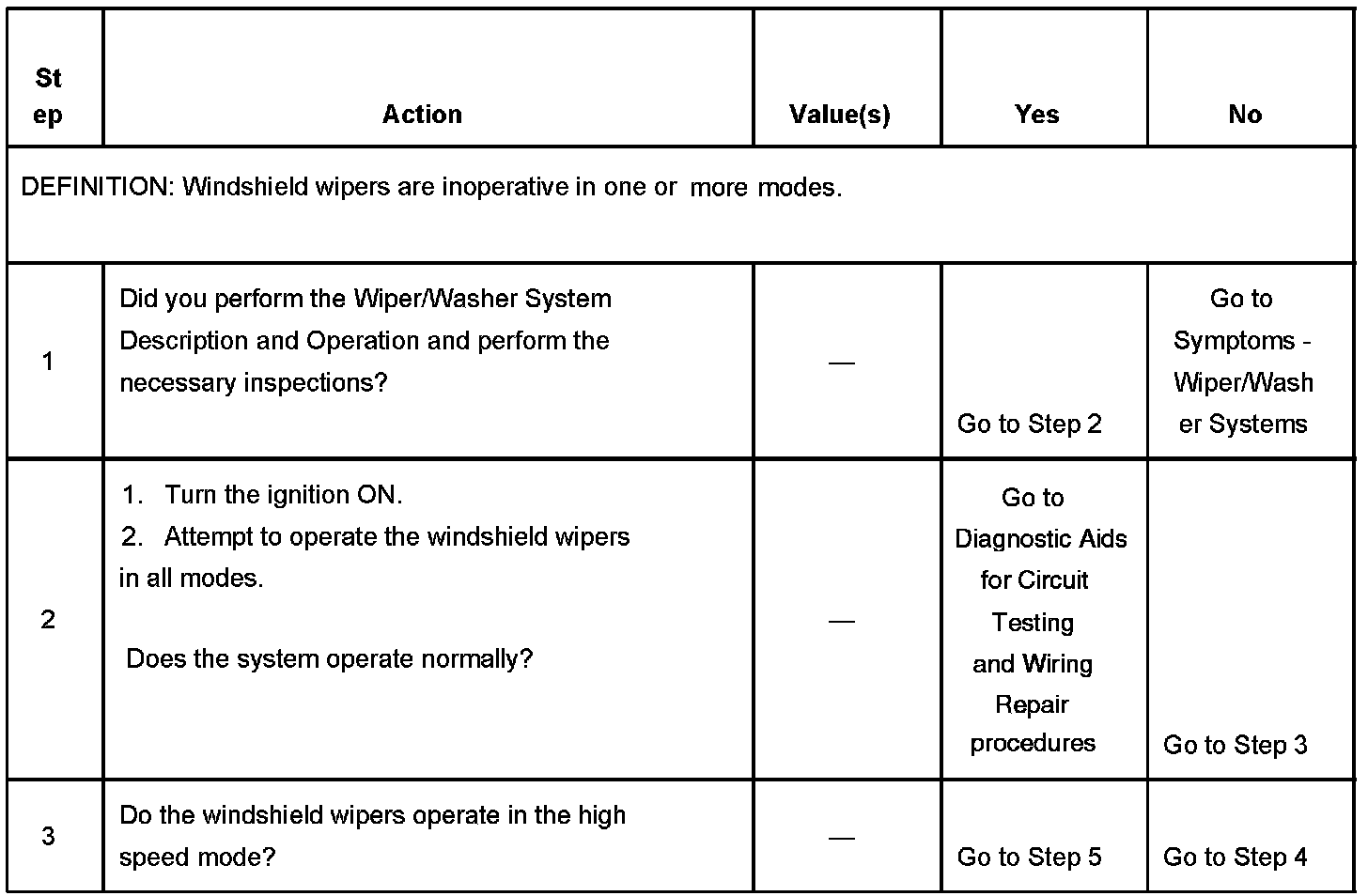

Steps 1-3:

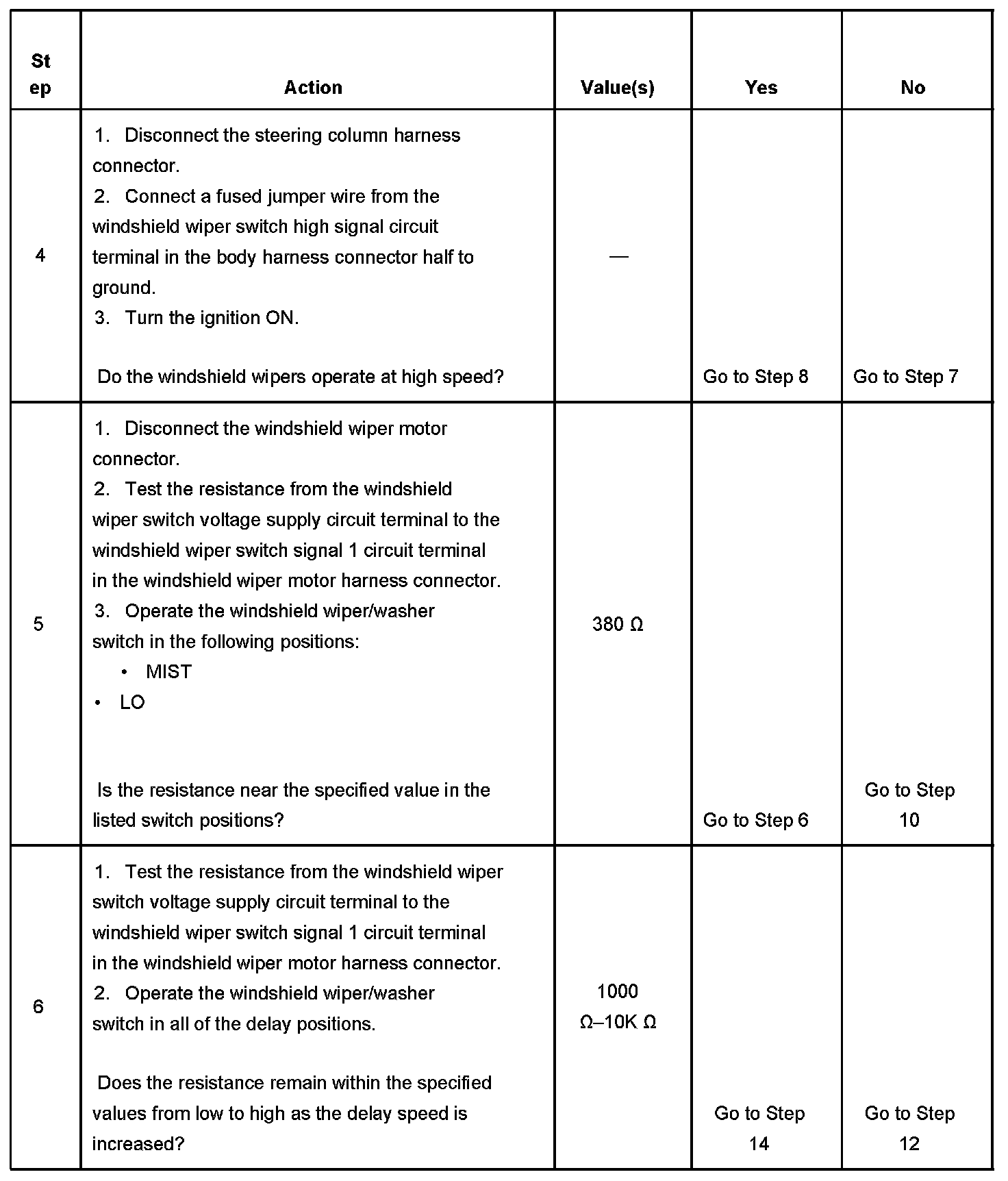

Steps 4-6:

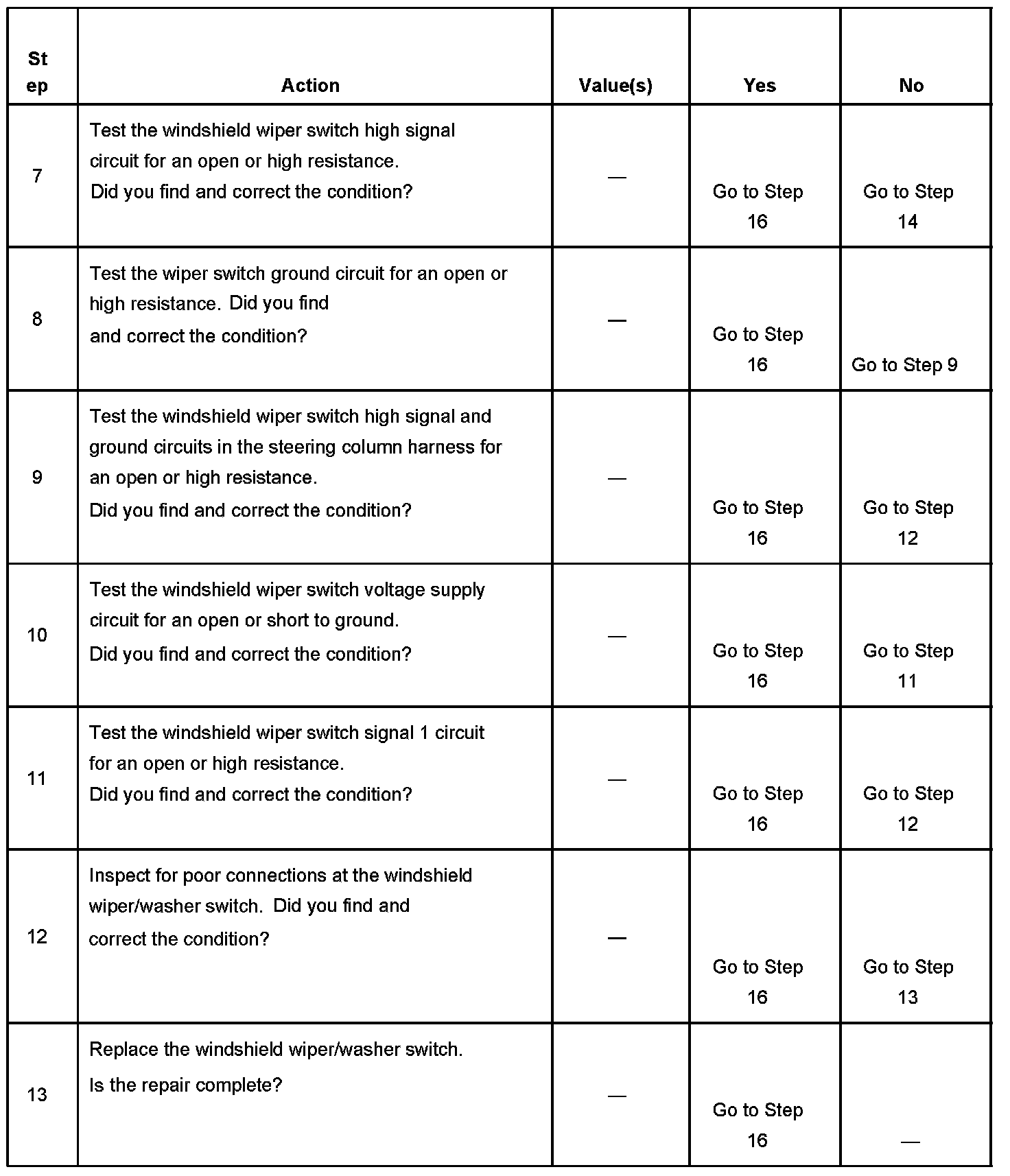

Steps 7-13:

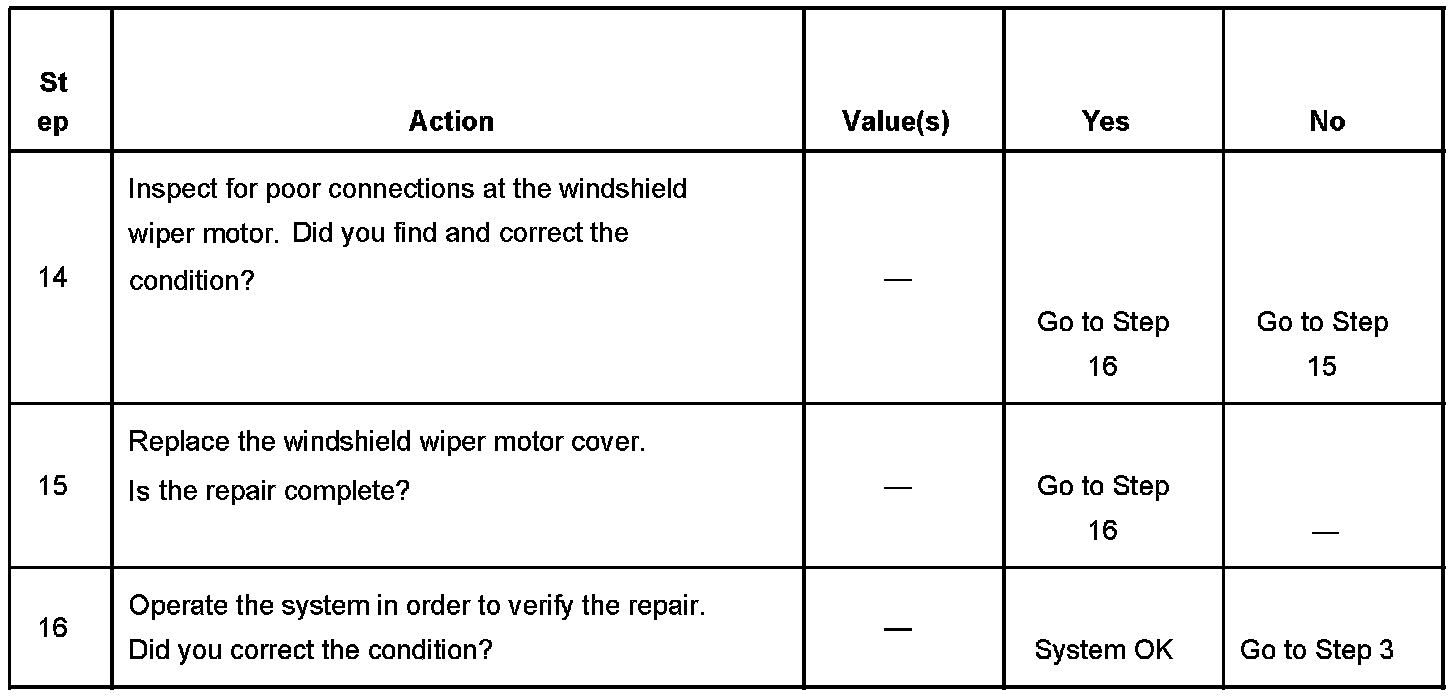

Steps 14-16:
The numbers below refer to the step numbers on the diagnostic table.
5. This step tests for continuity through the 390 ohms resistor in the windshield wiper/washer switch.
6. This step tests for continuity through the delay resistors in the windshield wiper/washer switch. The measured resistance will change in sequence from low to high as the delay speed is increased.
