Radiator Support: Service and Repair

Support Replacement - Center

Removal Procedure

1. Remove the grille. Refer to Grille Replacement (Grille Replacement) in Exterior Trim.
2. Remove the outside air temperature sensor and wiring, if equipped.

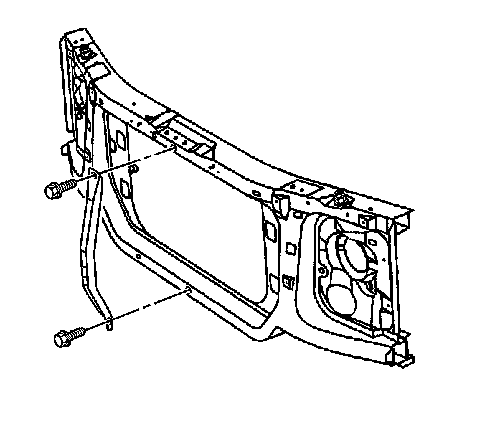

3. Remove the center support bracket bolts.




4. Remove the support bracket from the vehicle.



Installation Procedure

1. Install the center support bracket to the vehicle.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the support bracket bolts.

Tighten the bolts to 25 N.m (18 lb ft).

3. Install the outside air temperature sensor and wiring, if equipped.




4. Install the grille. Refer to Grille Replacement (Grille Replacement) in Exterior Trim.
