Center Mounted Brake Lamp: Service and Repair

HIGH MOUNTED STOP LAMP REPLACEMENT

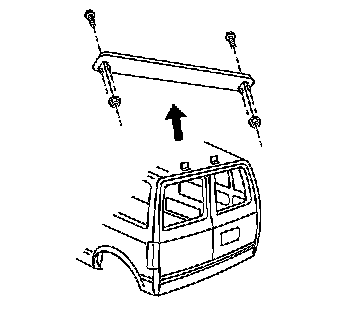

REMOVAL PROCEDURE




1. Remove the center high-mounted stop lamp retaining screws.
2. Gently pull the electrical connector through the top of the roof.
3. Disconnect the electrical connector.
4. Remove the high-mounted stop lamp from the vehicle.

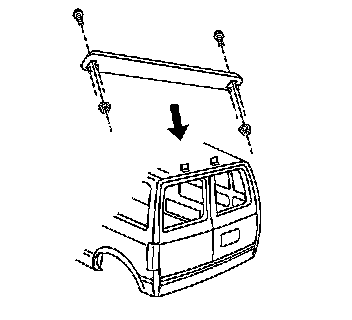

INSTALLATION PROCEDURE




1. Install the high-mounted stop lamp to the vehicle.
2. Connect the electrical connector.
3. Carefully push the electrical connector back into the roof.
4. Install the high-mounted stop lamp retaining screws.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the screws to 2 Nm (18 lb in).
