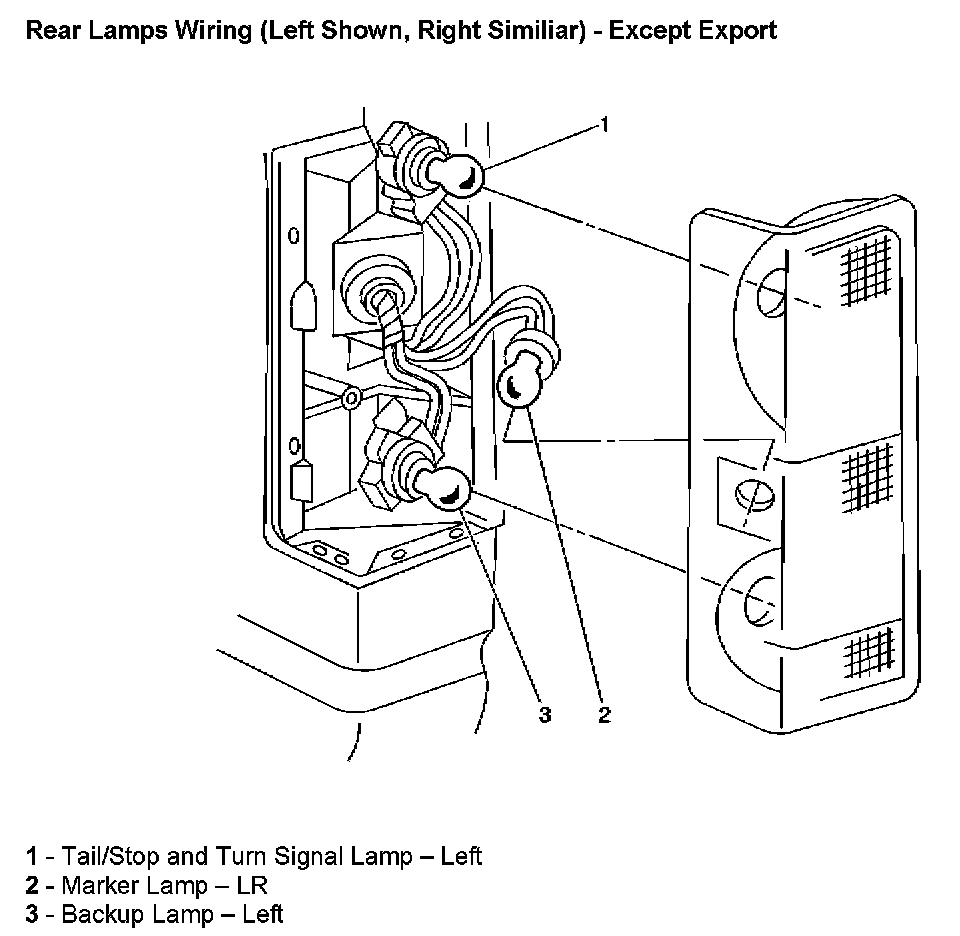

Rear Lamps Wiring (Left Shown, Right Similar) - Except Export
Rear Lamps Wiring (Left Shown, Right Similar) - Except Export
Rear Lamps Wiring (Left Shown, Right Similar) - Except Export:
