Windshield Washer Pump: Service and Repair

WASHER PUMP REPLACEMENT

REMOVAL PROCEDURE
1. Remove coolant recovery reservoir.




2. Remove the washer solvent container.
3. Disconnect the washer hose(s).

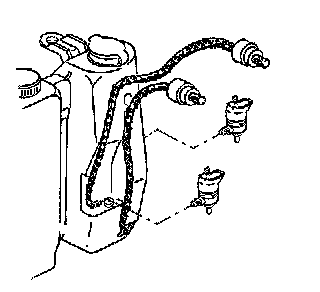

4. Remove the washer pump(s) from the washer solvent container.

INSTALLATION PROCEDURE




1. Install the washer pump(s) in the washer solvent container.
2. Connect the washer hose(s).
3. Install the washer solvent container.
4. Install the coolant recovery reservoir.
