Windshield Washer Pump: Service and Repair

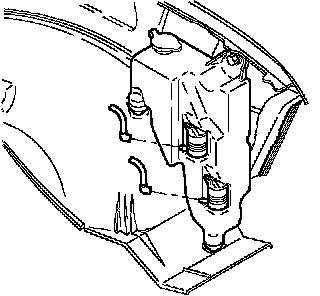

WASHER PUMP/RESERVOIR REPLACEMENT

REMOVAL PROCEDURE
1. Raise and support the hood.




2. Remove the washer solvent from the solvent container.
3. Disconnect the electrical connectors from the washer pumps.
4. Disconnect the hoses from the washer pumps.




5. Remove the screw retaining the solvent container to the vehicle.
6. Remove the solvent container from the vehicle.




7. Remove the washer pumps and grommets from the solvent container.

INSTALLATION PROCEDURE




1. Install the washer pumps and grommets onto the solvent container.




2. Install the solvent container onto the vehicle with the screw.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the screw to 3 N.m (27 lb in).




3. Connect the hoses to the washer pumps.
4. Connect the electrical connectors to the washer pumps.
5. Refill the washer solvent in the solvent container.
6. Close the hood.
