Automatic Transmission/Transaxle
>>
Pressure Regulating Solenoid, A/T
Pressure Regulating Solenoid, A/T

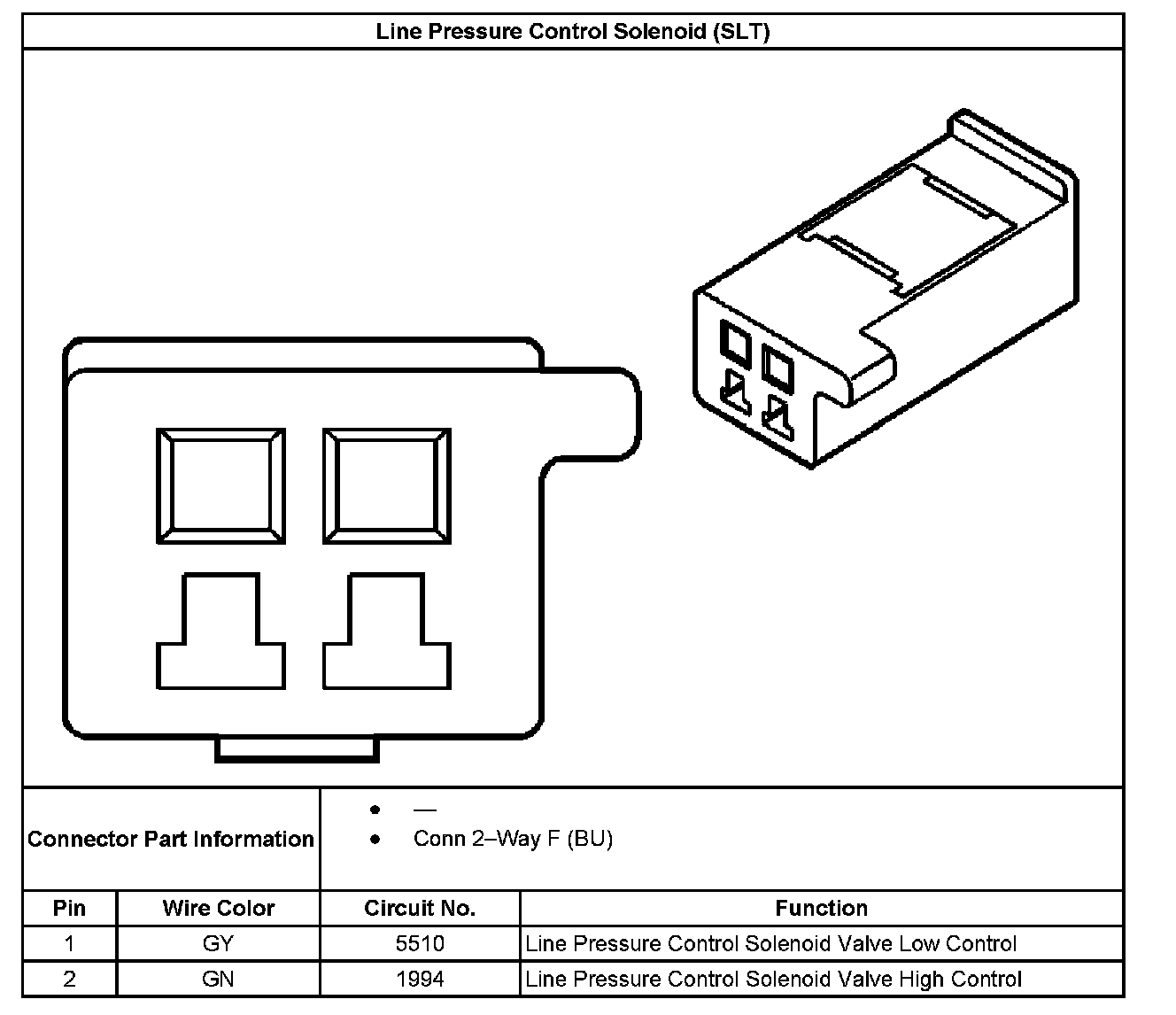

Line Pressure Control Solenoid (SLT):

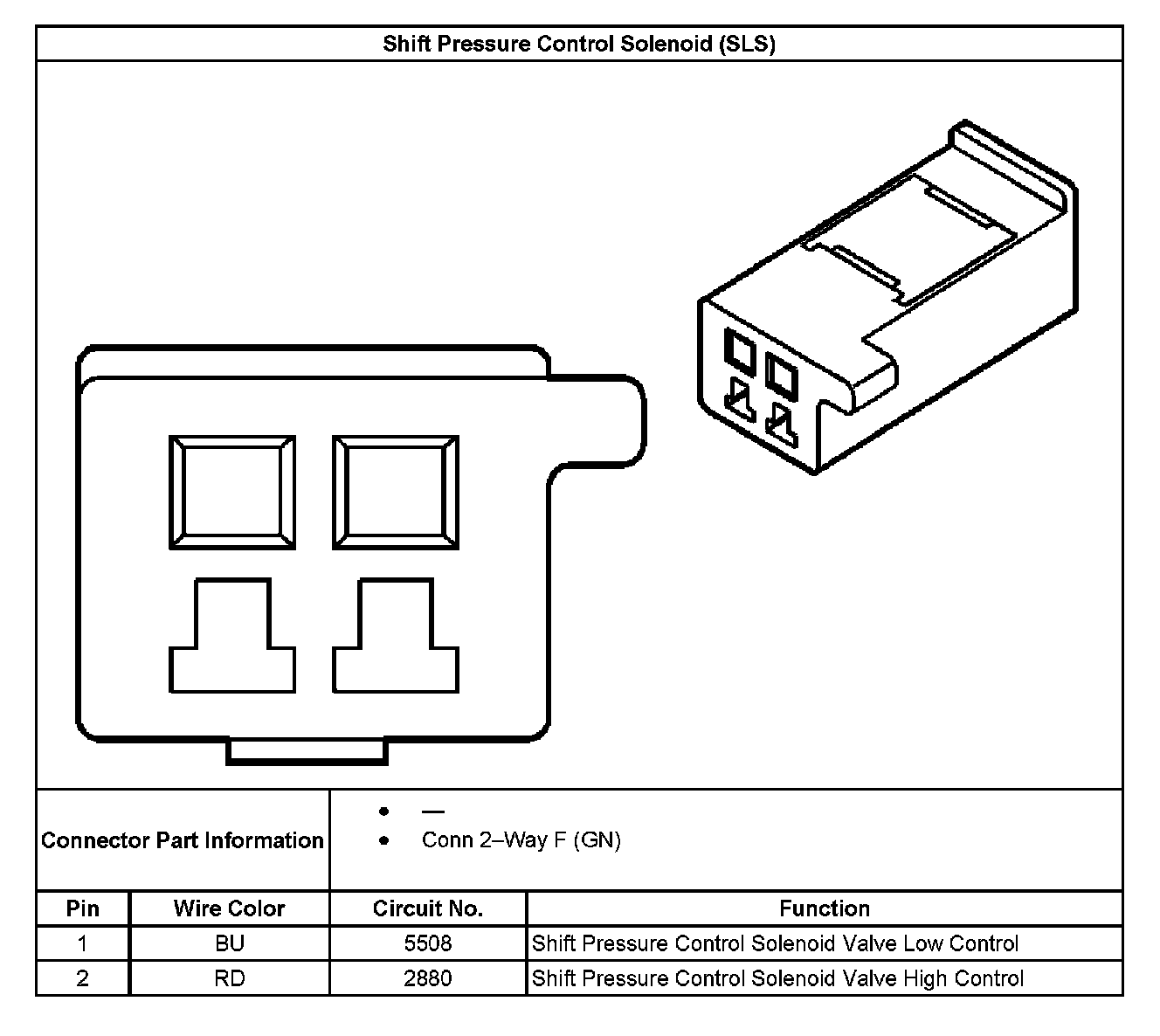

Shift Pressure Control Solenoid (SLS):
