Equinox FWD V6-3.4L VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Automatic Transmission/Transaxle
>>
Torque Converter Clutch Solenoid, A/T
Torque Converter Clutch Solenoid, A/T

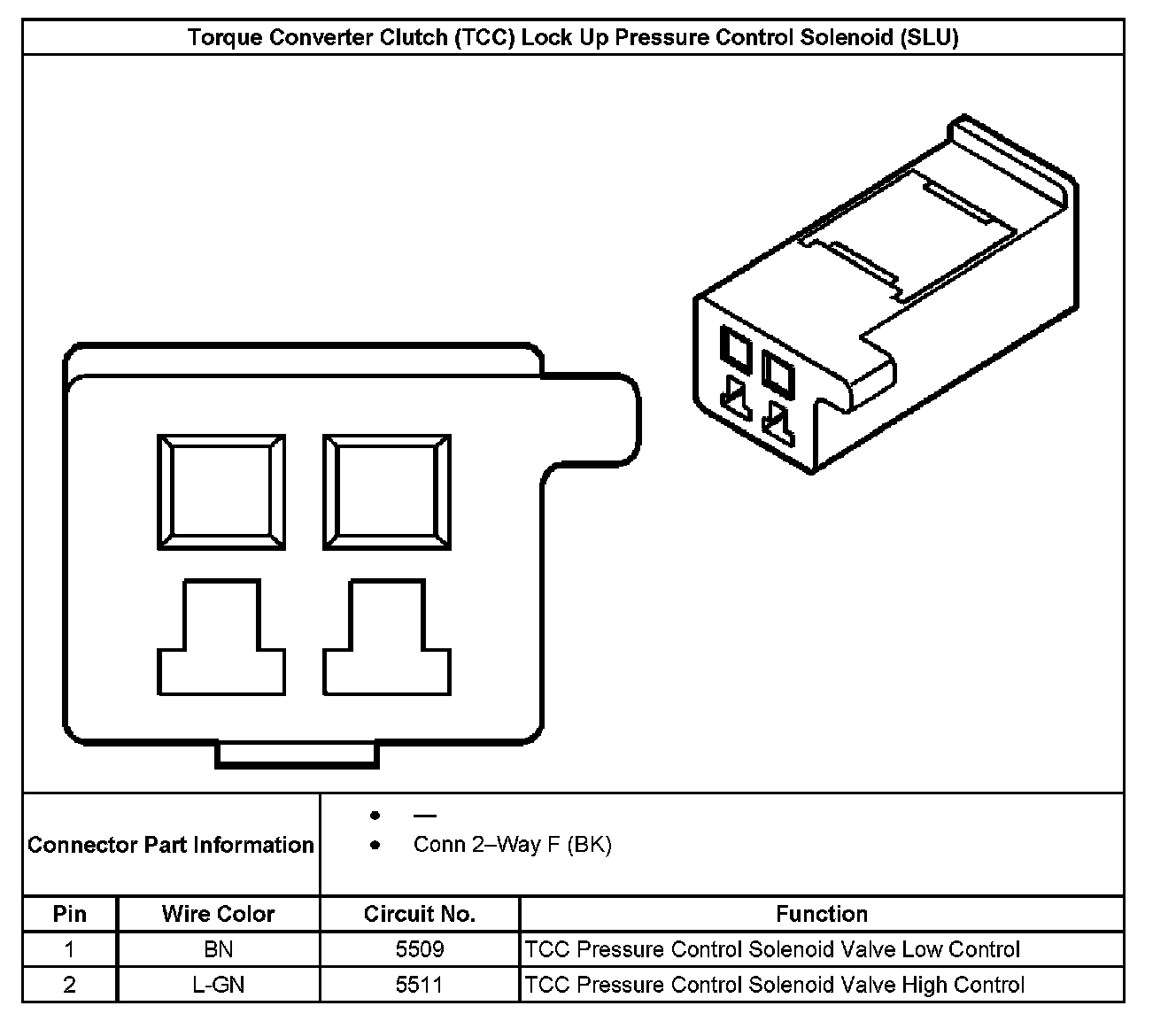

Torque Converter Clutch (TCC) Lock Up Pressure Control Solenoid (SLU):
