Transmission Position Sensor/Switch, A/T

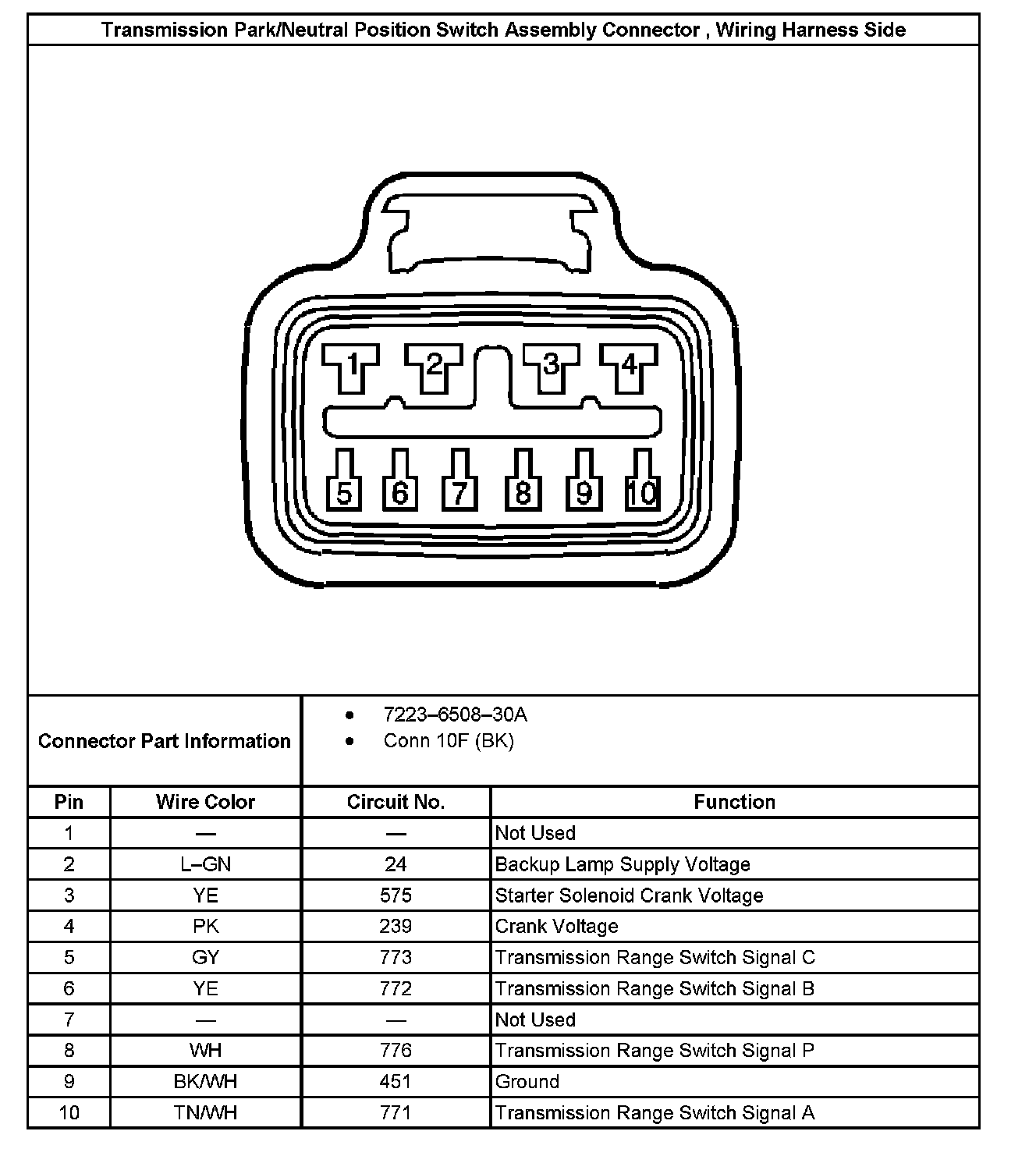

Transmission Park/Neutral Position Switch Assembly Connector , Wiring Harness Side:
