C303
C303

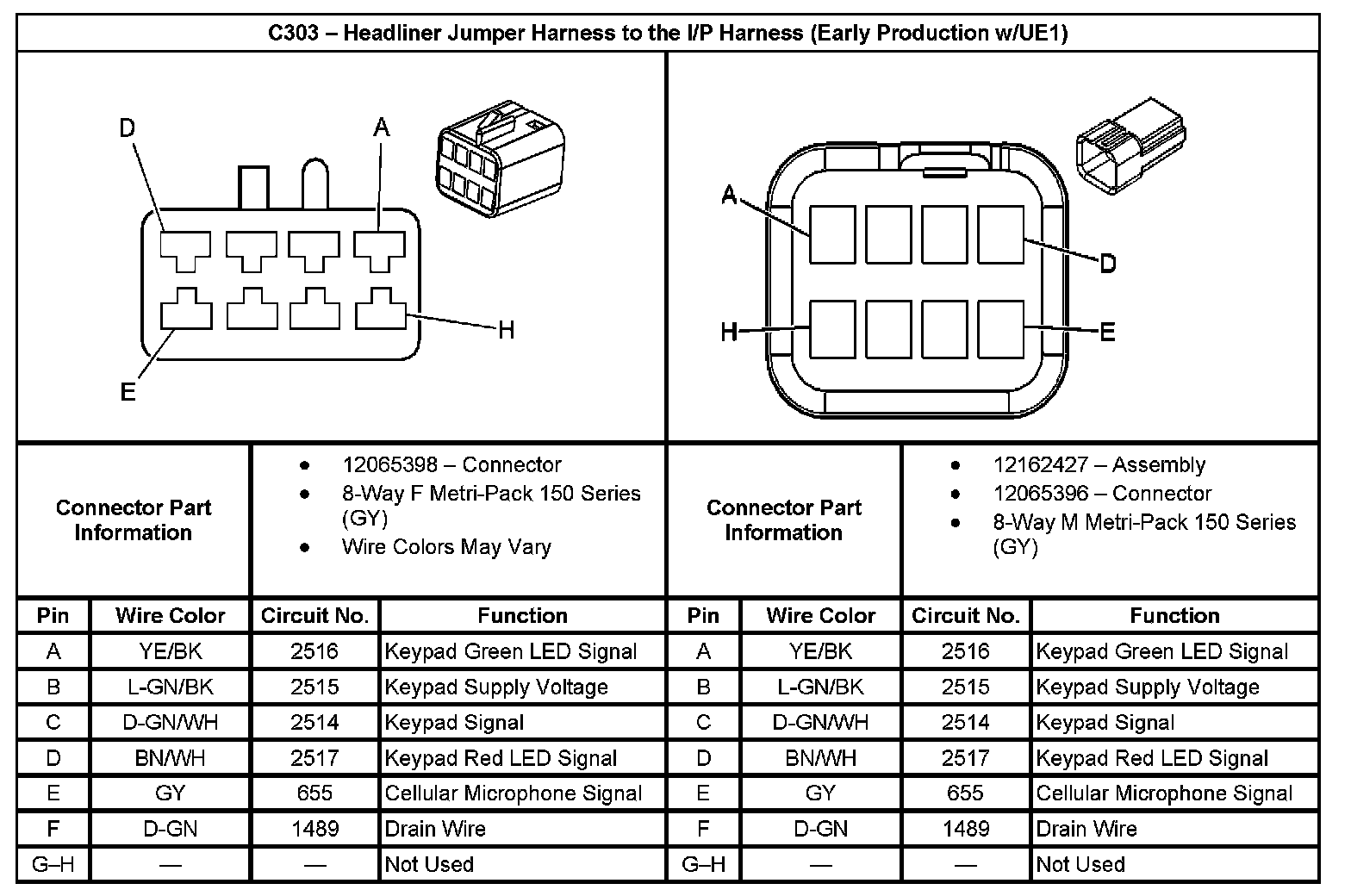

C303 - Headliner Jumper Harness To The I/P Harness (Early Production With RPO Code UE1):
C303 - Headliner Harness To The I/P Harness (Late Production With RPO Code UE1):
