Seat Temperature Control Module
>>
Heated Seat Module - Driver
Heated Seat Module - Driver

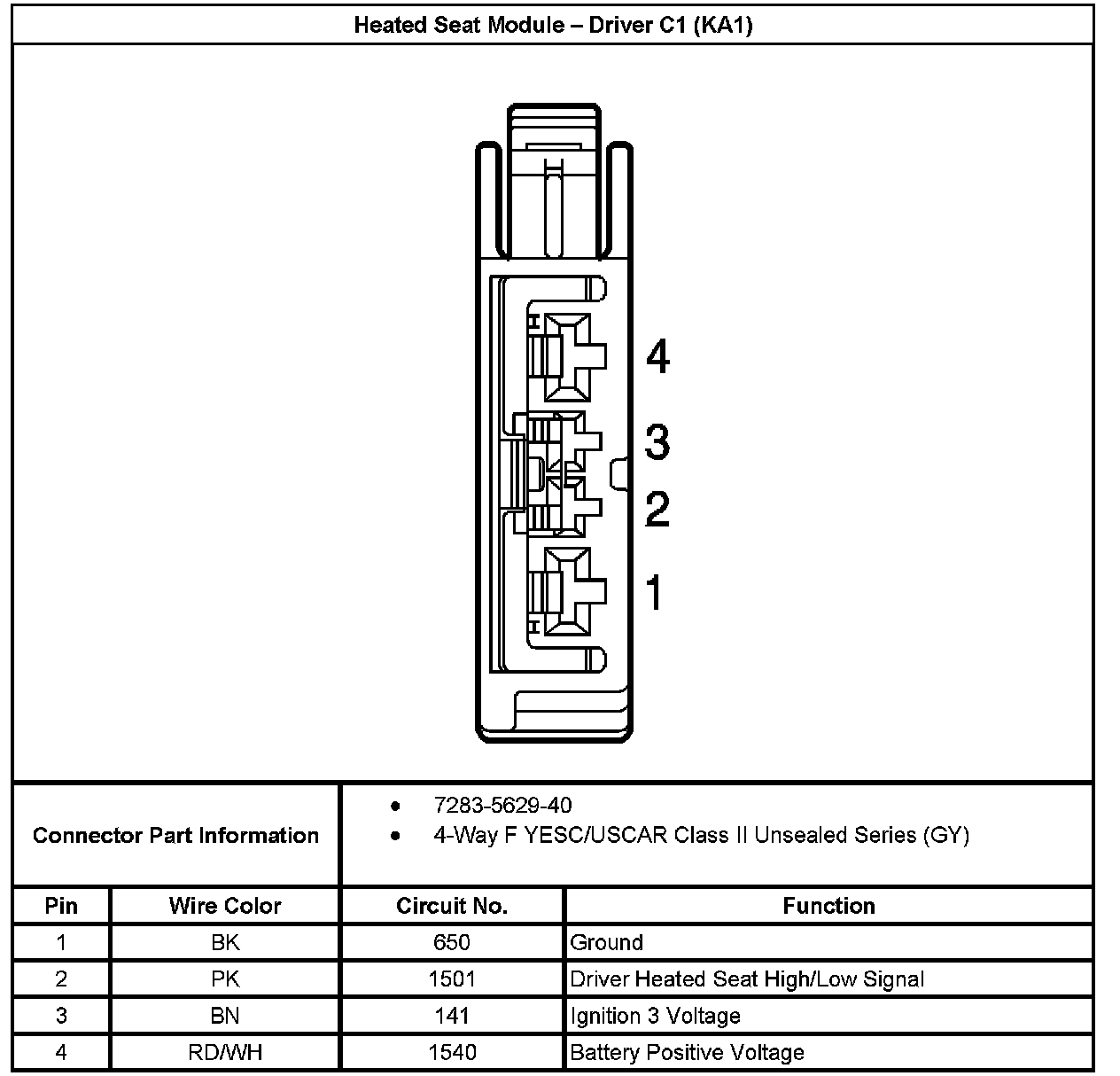

Heated Seat Module - Driver C1 (With RPO Code KA1):
Heated Seat Module - Driver C2 (With RPO Code KA1):

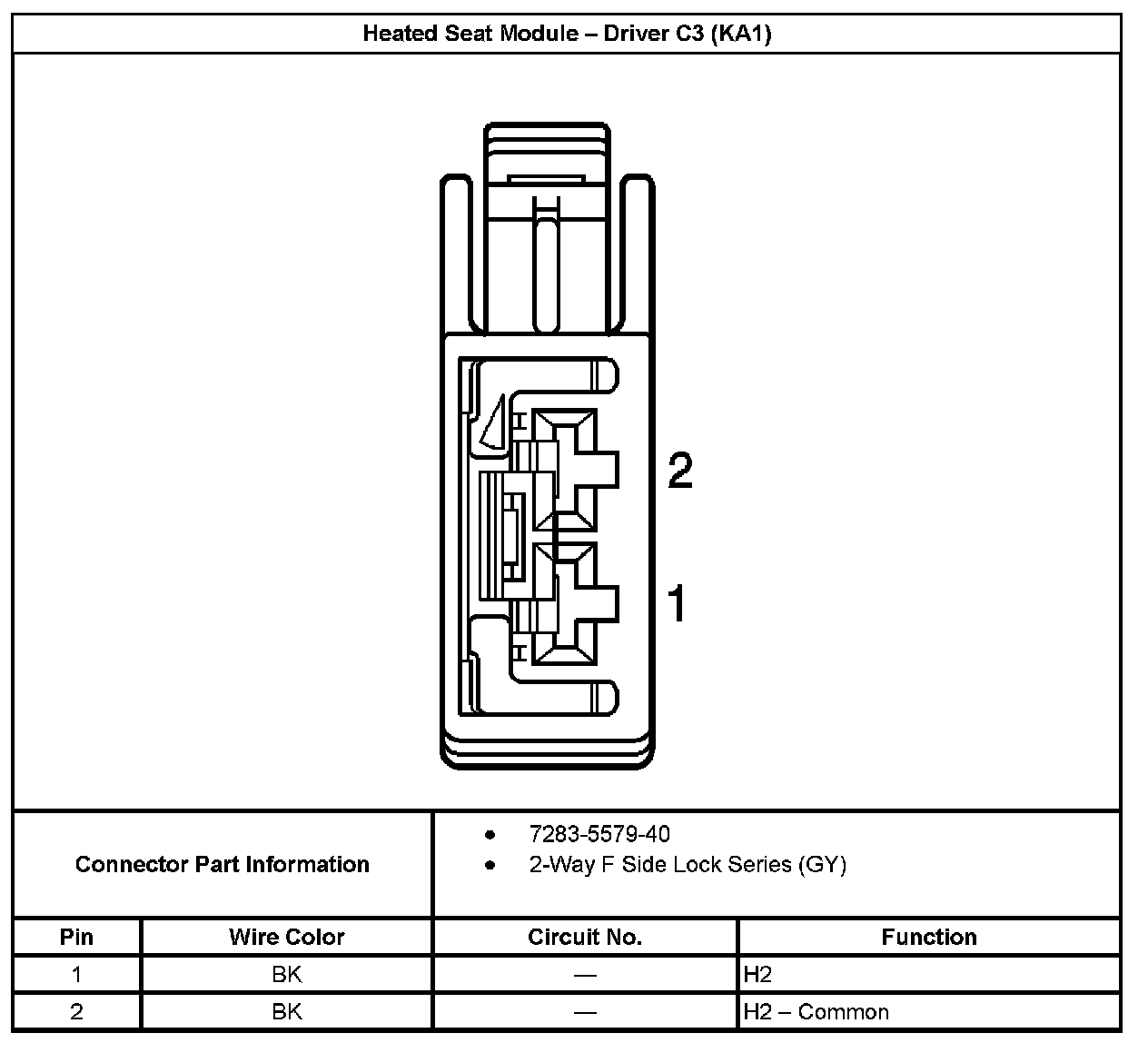

Heated Seat Module - Driver C3 (With RPO Code KA1):
