Home
>>
Chevy Truck
>>
2005
>>
Equinox FWD V6-3.4L VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Turn Signal Lamp
>>
Park/Turn Signal Lamp
Park/Turn Signal Lamp

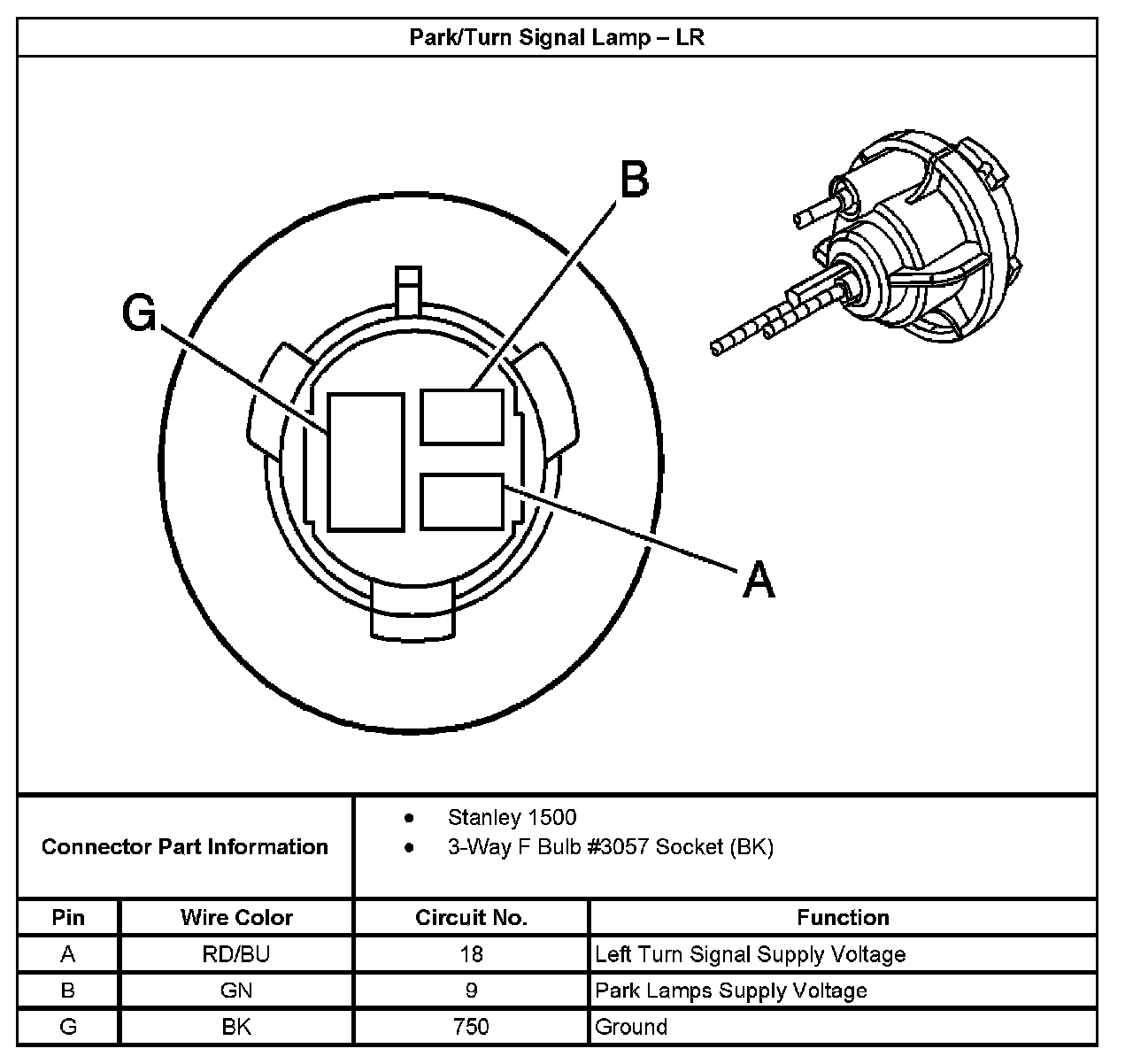

Park/Turn Signal Lamp - LR:

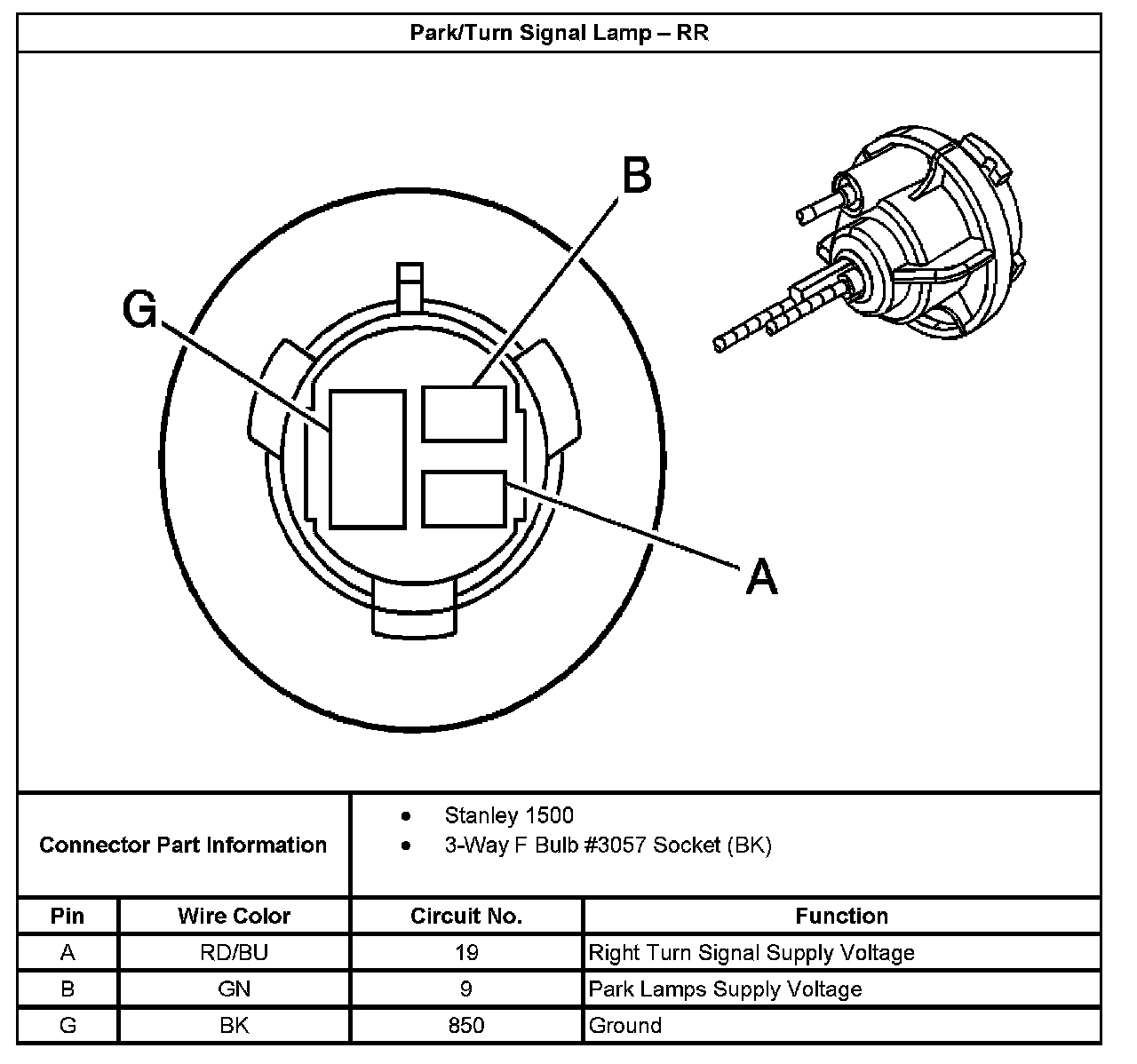

Park/Turn Signal Lamp - RR:
