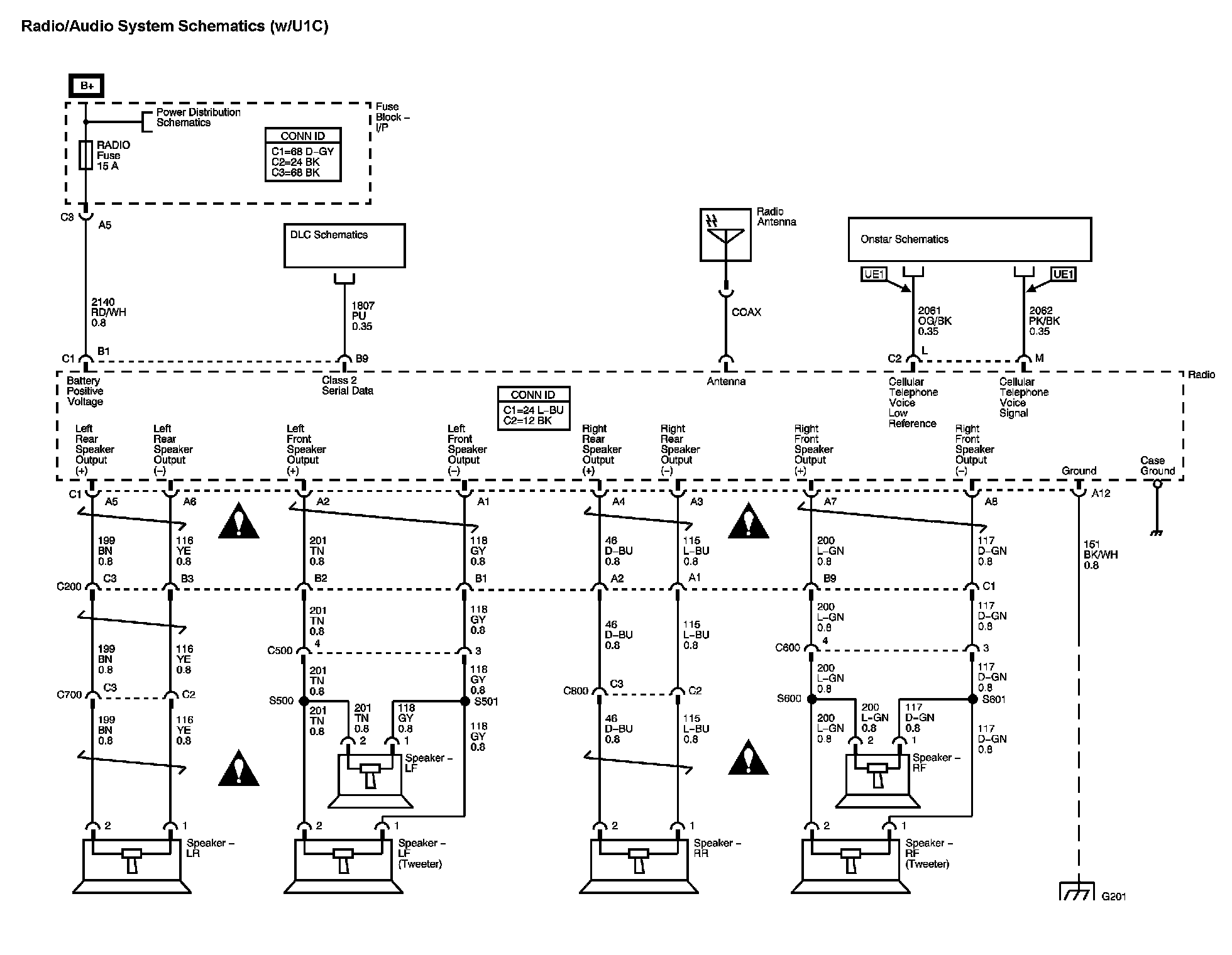

Radio/Audio System Diagrams (With RPO Code U1C)

Radio/Audio System Diagram:

LOCATION: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at vehicle locations. Locations
