Radio/Audio System Diagrams (With RPO Code U66)

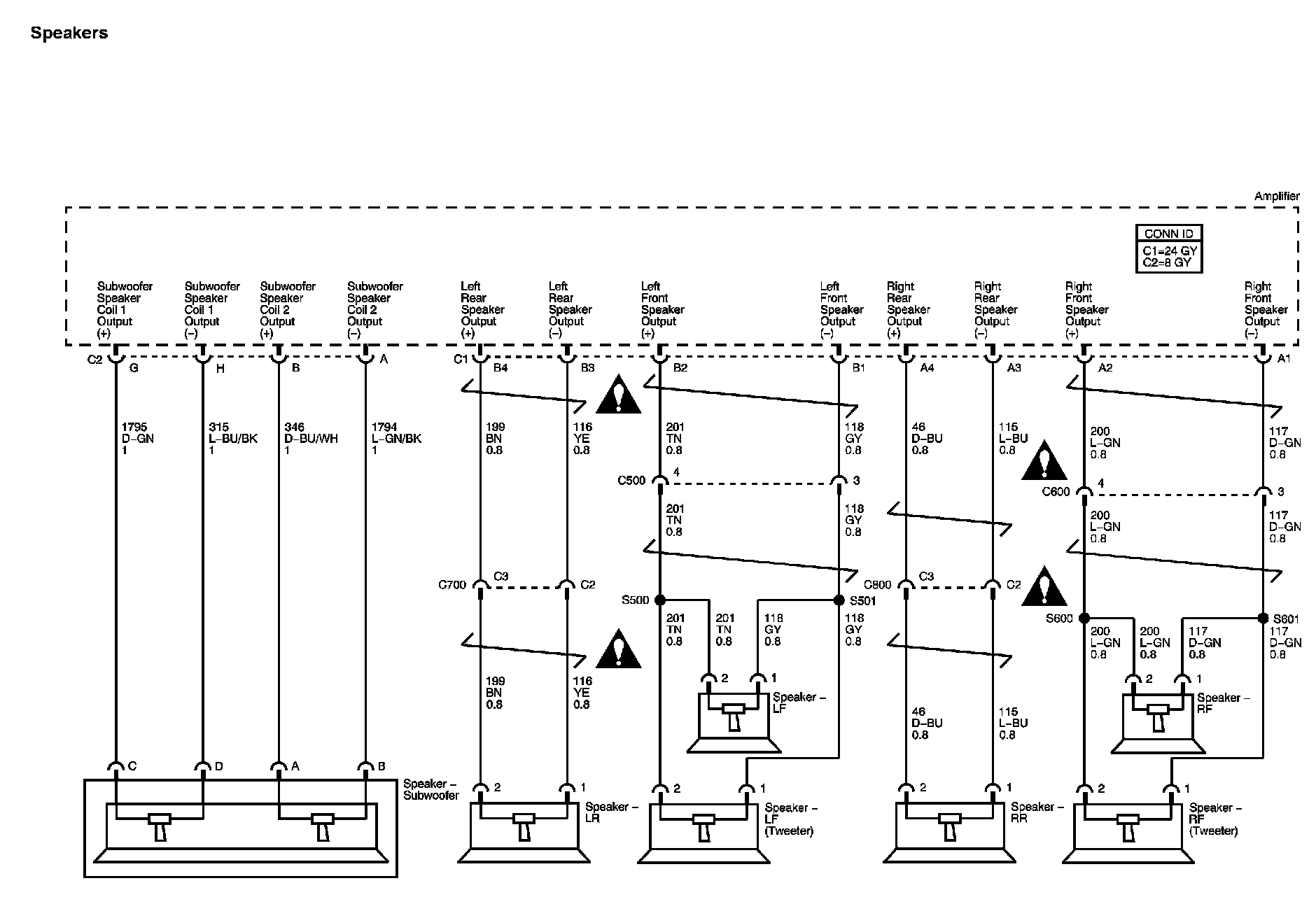

Radio/Audio System Diagram 1:

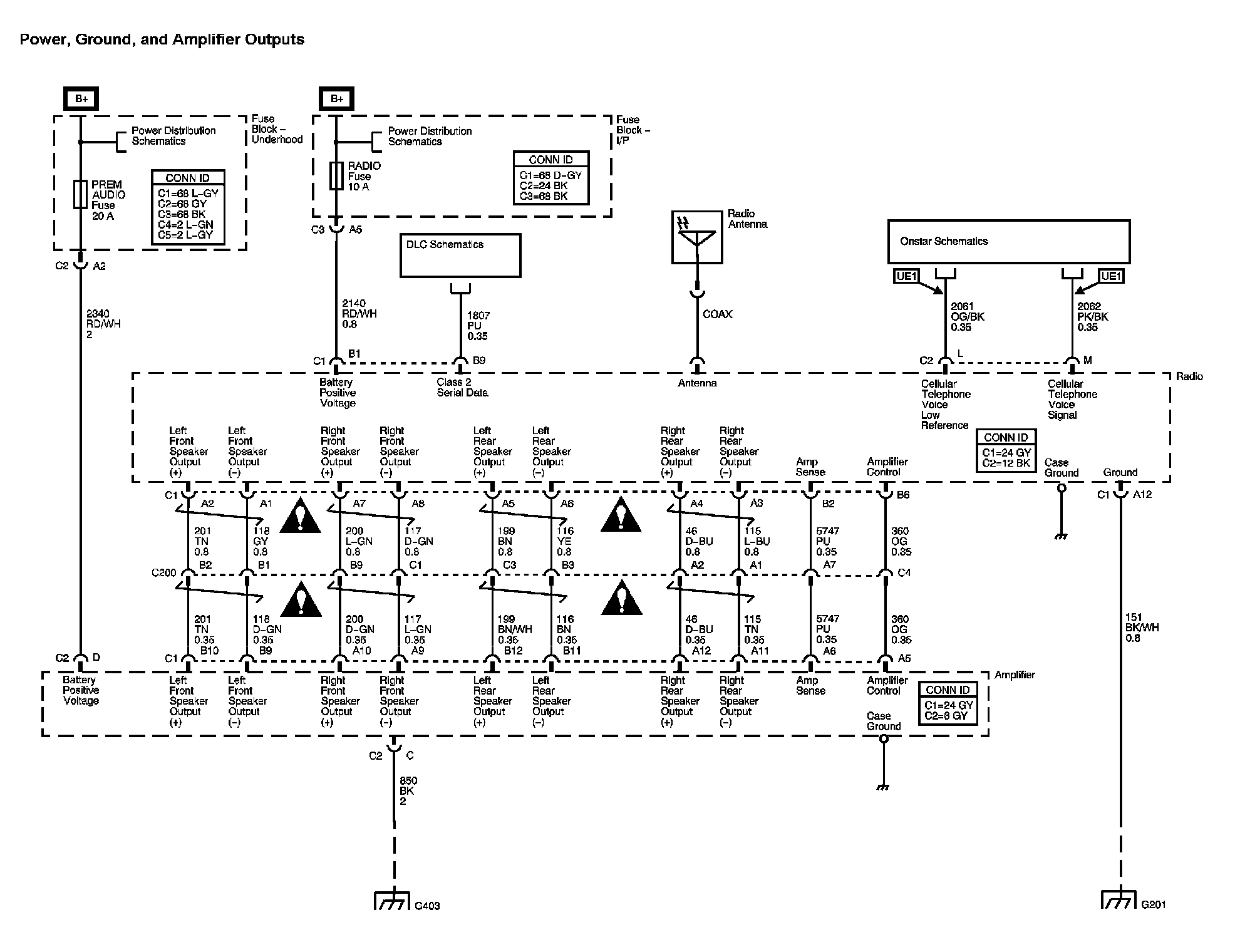

Radio/Audio System Diagram 2:

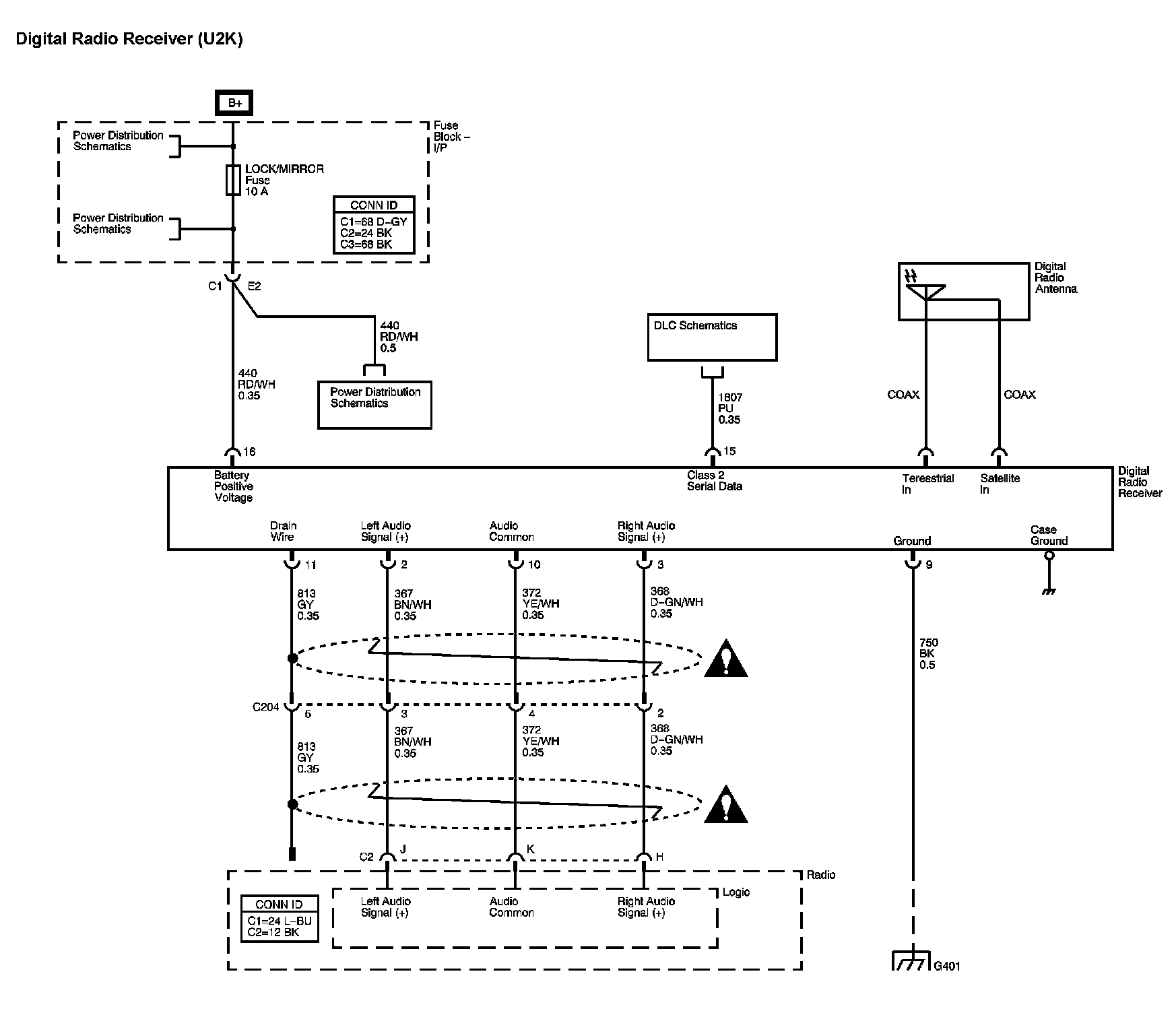

Radio/Audio System Diagram 3:

Radio/Audio System Diagram 4:

LOCATION: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at vehicle locations. Locations
