Automatic Transmission/Transaxle

Park - Engine Running:

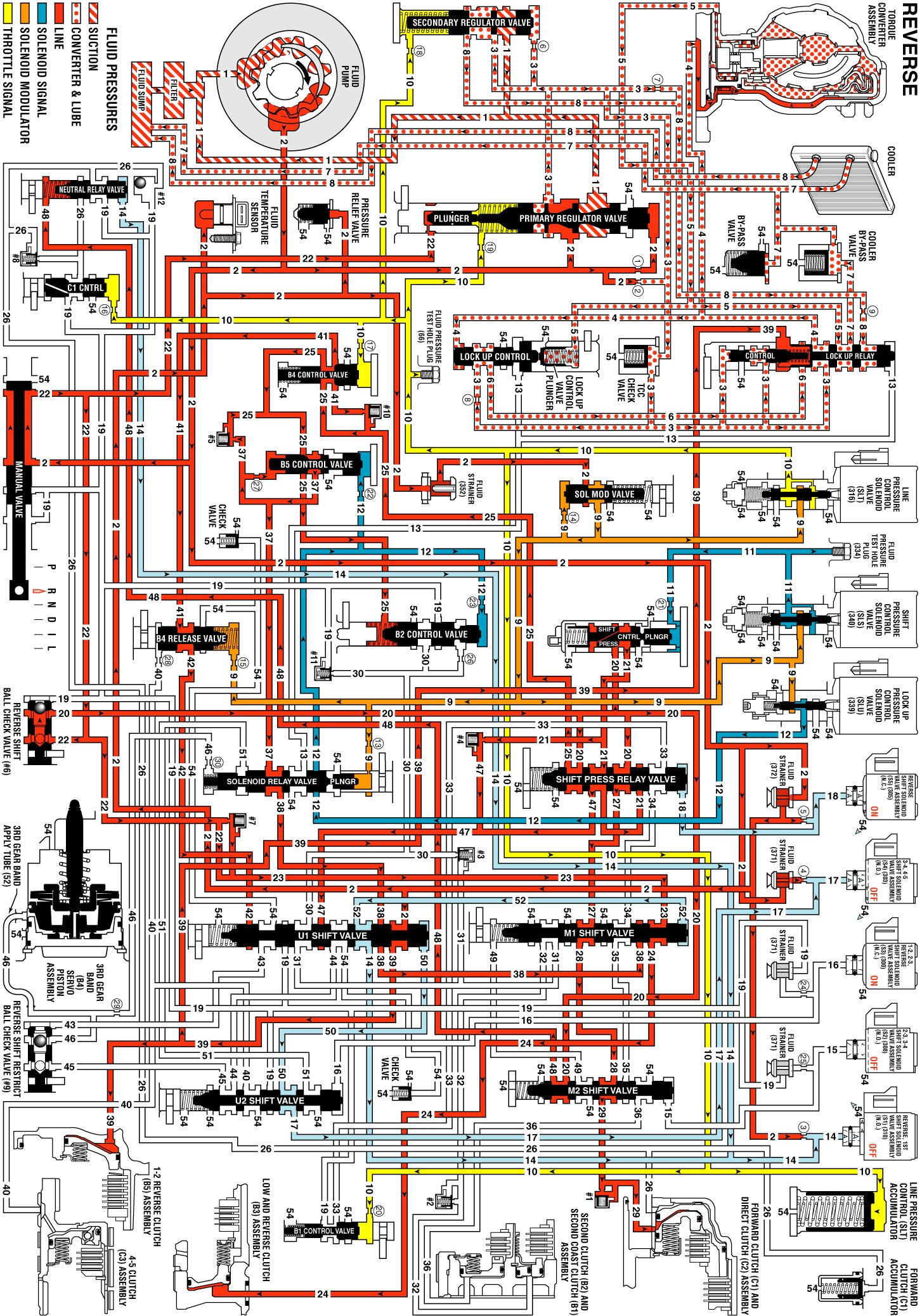

Reverse:

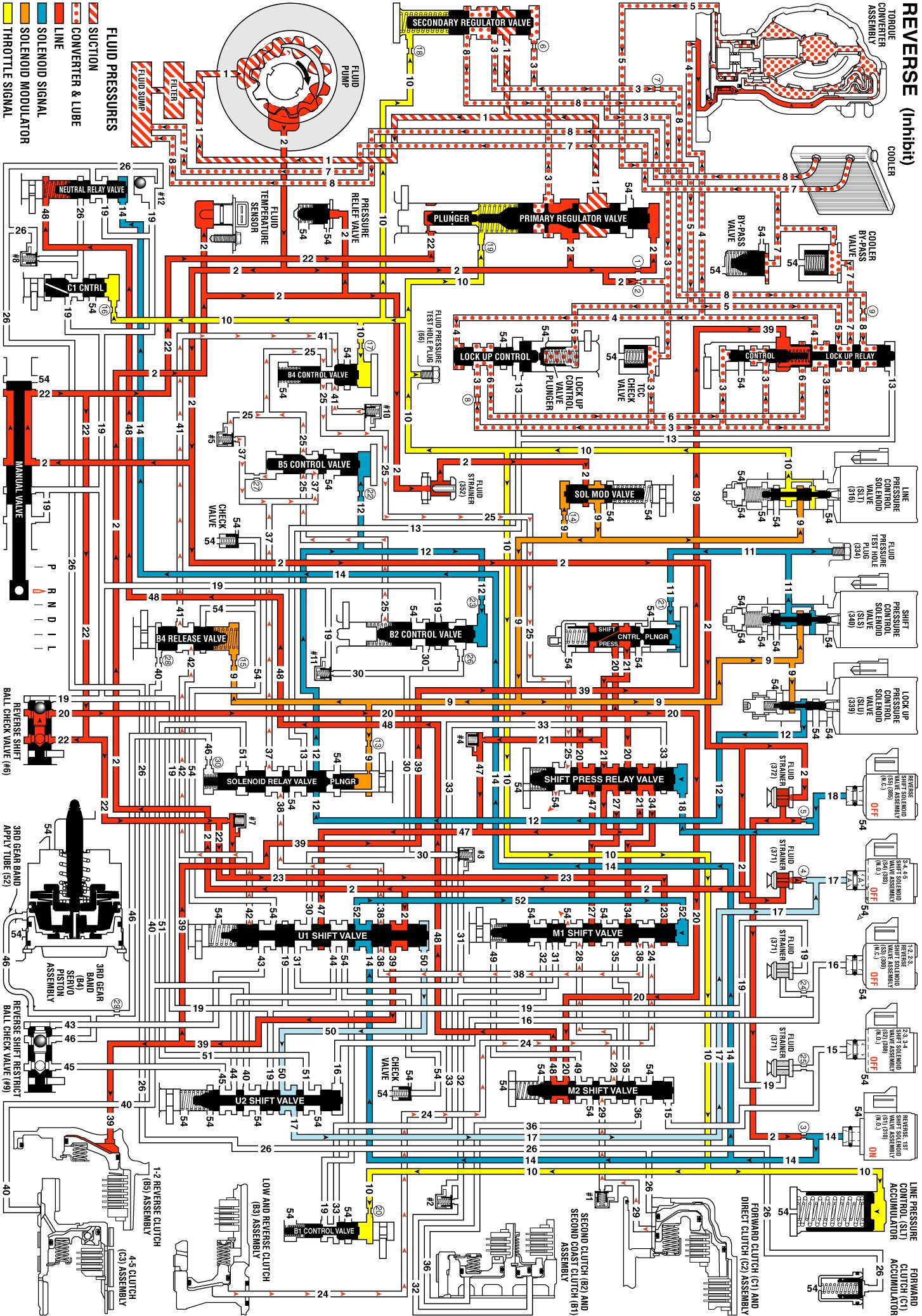

Reverse - Inhibit:

Neutral - Engine Running:

Drive and Intermediate Range - First Gear:

Low Range - First Gear, Engine Braking:

Drive, Intermediate and Low Range - Second Gear:

Drive and Intermediate Range - Third Gear:

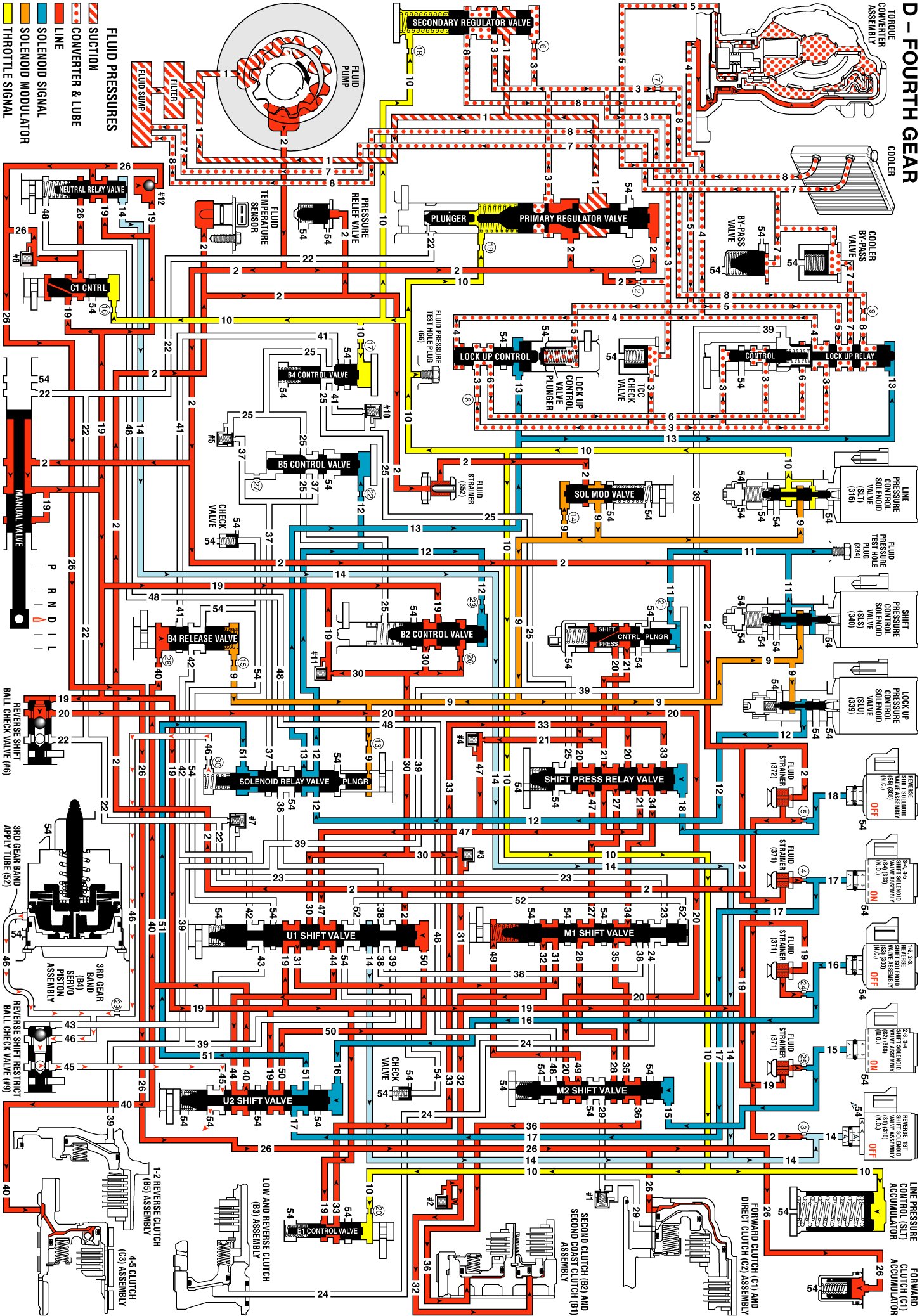

Drive Range - Fourth Gear:

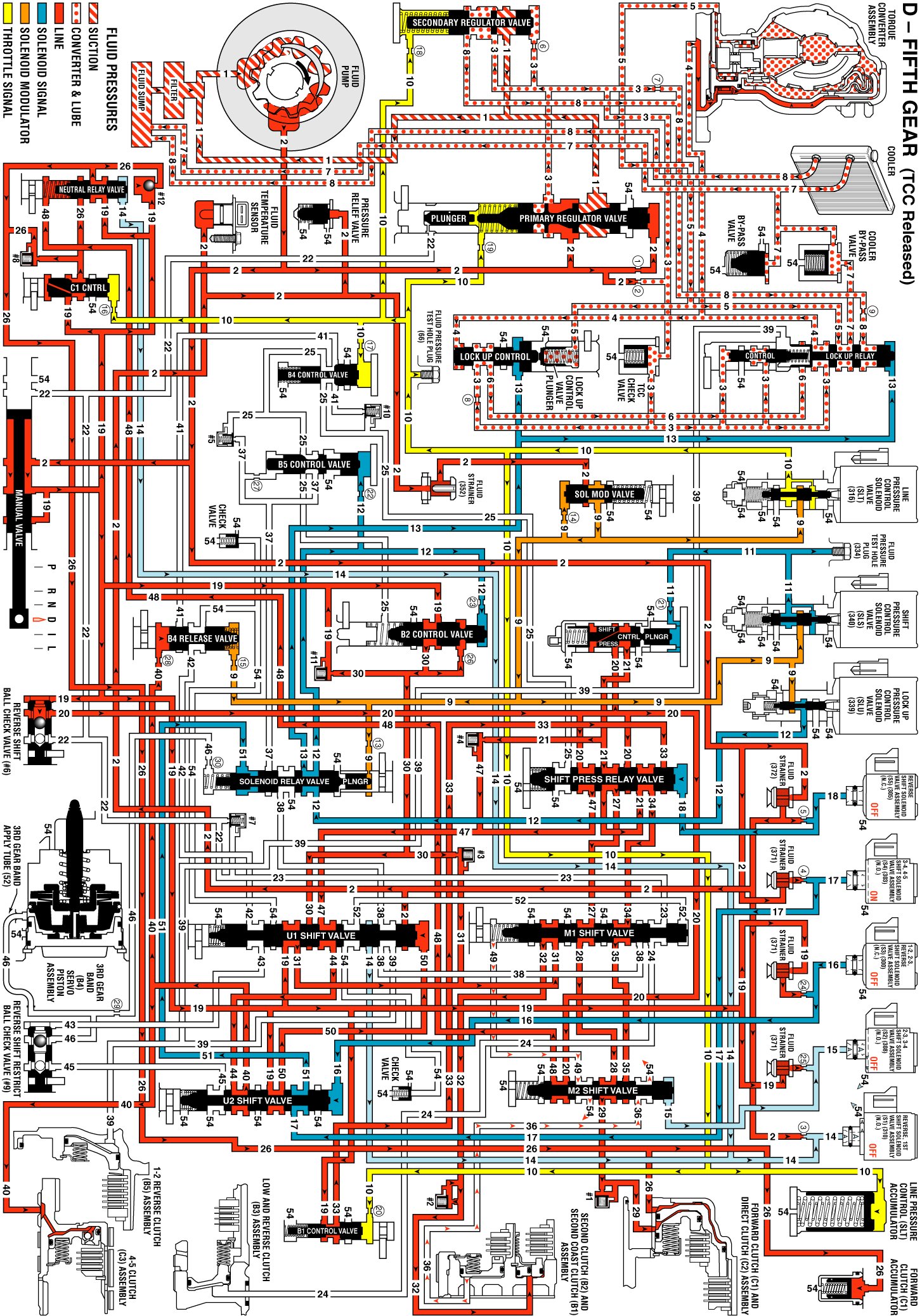

Drive Range Fifth Gear - TCC Released:

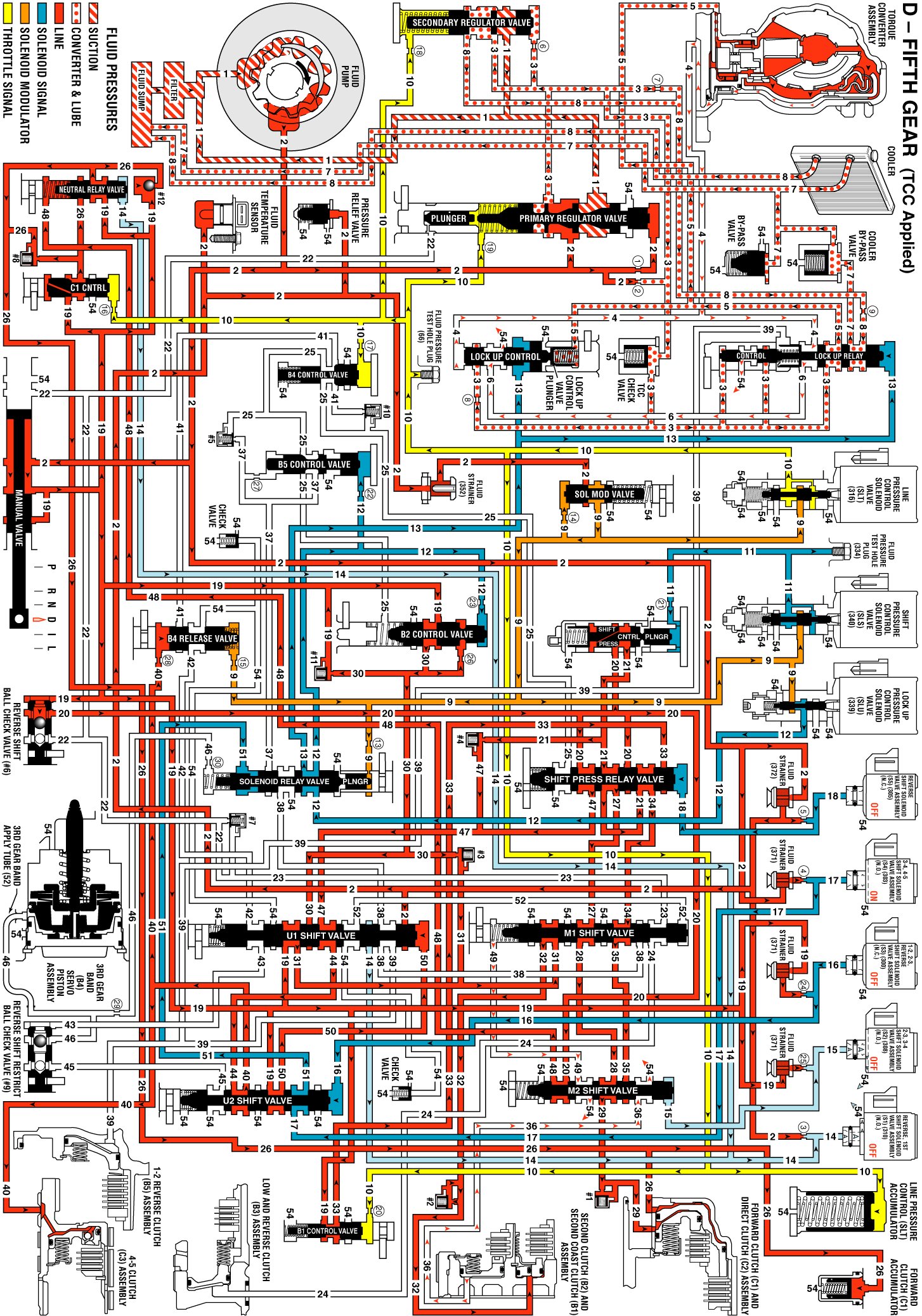

Drive Range Fifth Gear - TCC Applied:

Drive Range - Emergency Fifth Gear:
