Blower Motor Resistor: Service and Repair

BLOWER MOTOR RESISTOR REPLACEMENT

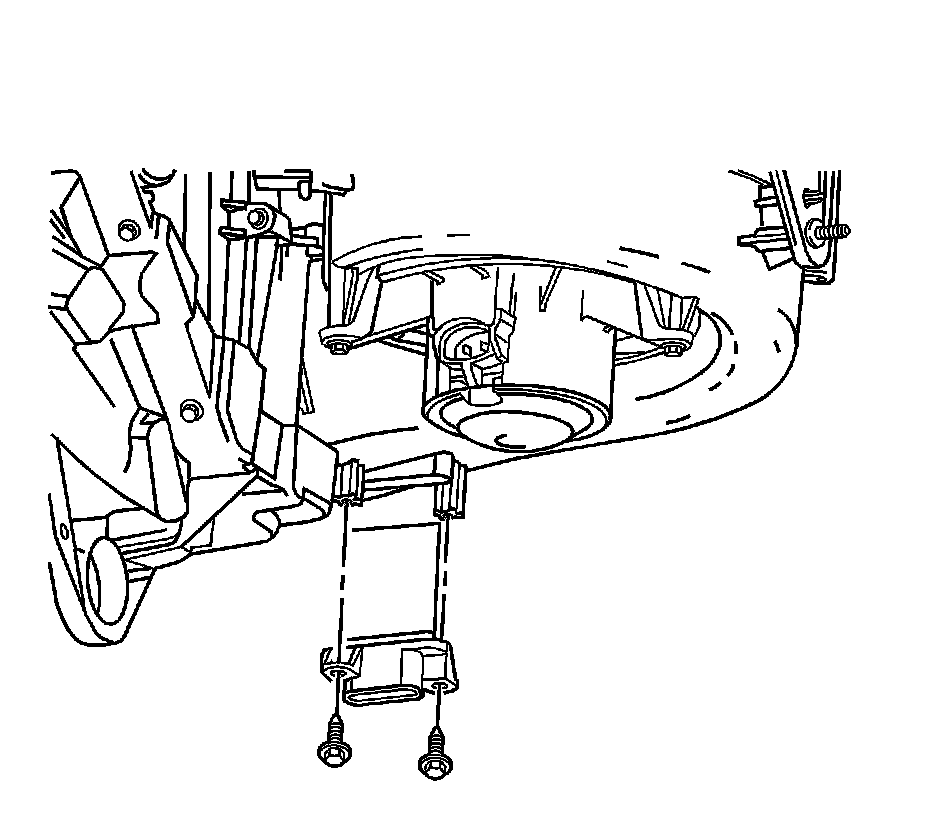

REMOVAL PROCEDURE




1. Disconnect the electrical connector from the blower motor resistor.
2. Remove the blower motor resistor screws from the HVAC module.
3. Remove the blower motor resistor from the HVAC module.

INSTALLATION PROCEDURE




1. Install the blower motor resistor to the HVAC module.
2. Install the blower motor resistor screws to the HVAC module.

Tighten the screws to 1 N.m (9 lb in).

NOTE: Refer to Fastener Notice in Service Precautions.

3. Connect the electrical connector to the blower motor resistor.
