Shift Indicator Inaccurate or Inoperative
Shift Indicator Inaccurate or Inoperative
SHIFT INDICATOR INACCURATE OR INOPERATIVE
DIAGNOSTIC AIDS
An open or short to ground in the I/P lamps
dimmer switch
signal can disable the PRNDL display. Check for DTC B2627 in Lighting Systems.
TEST

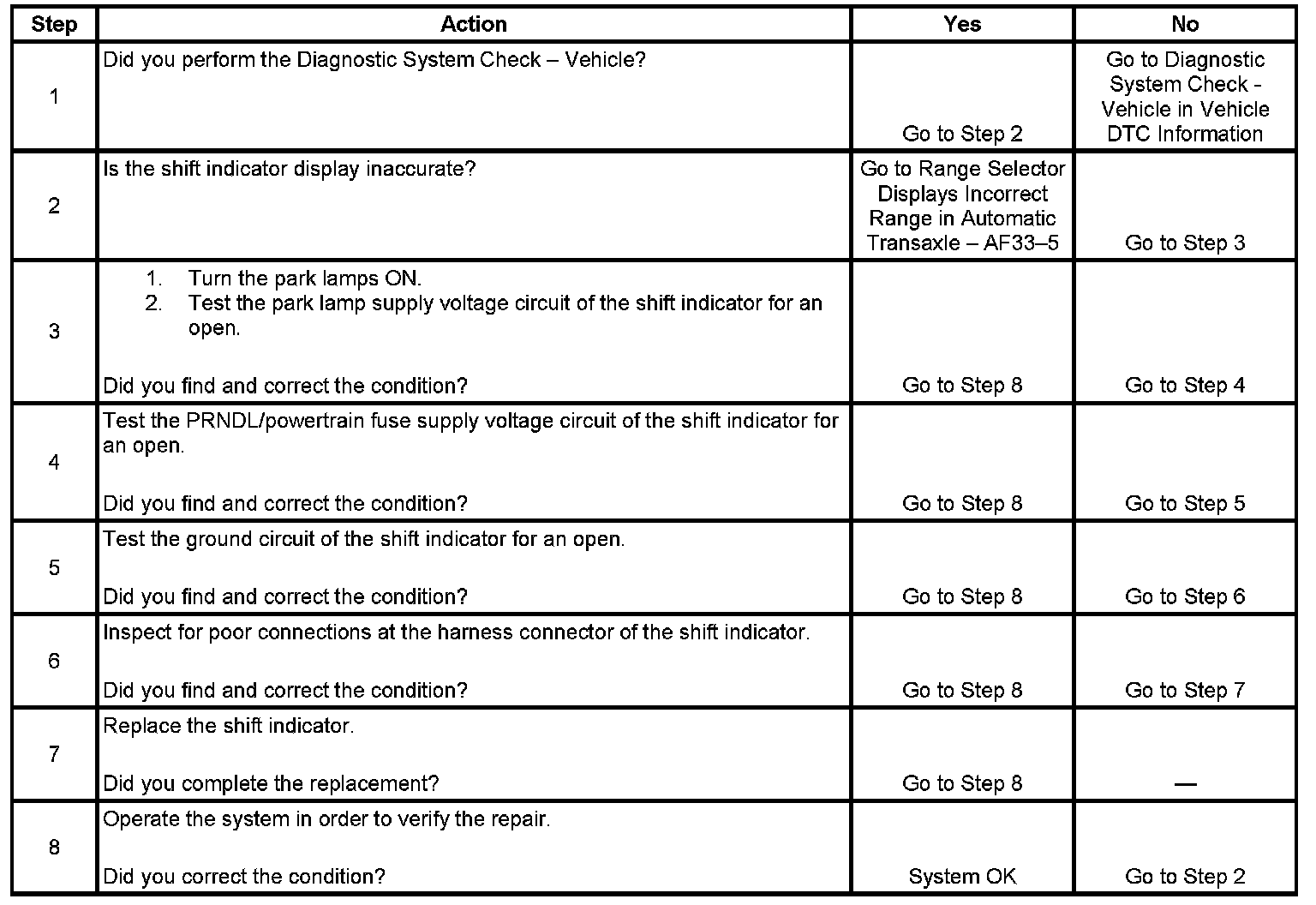

Steps 1-8:
