Differential Housing Support Bushing Replacement

Differential Housing Support Bushing Replacement

^ Tools Required
- J 44866 Support Bushing Remover/Installer





1. Important: Remove the bushing only if damaged or worn out.

Important: Use the high pressure lube supplied with the tool.

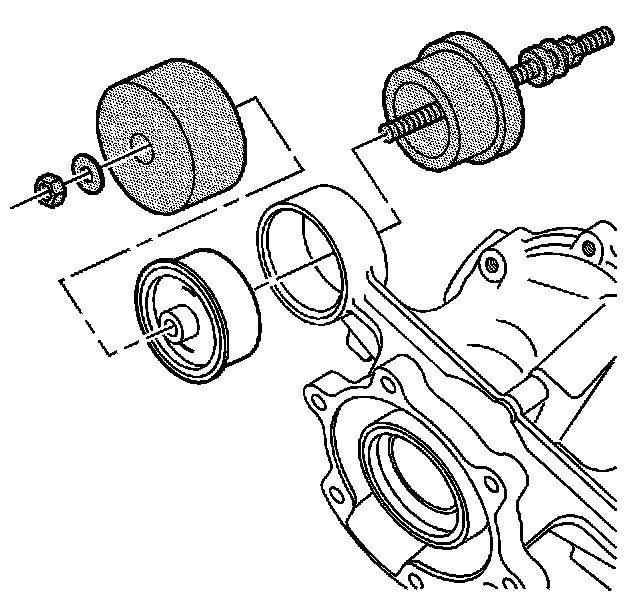

Install J 44866. Tighten the nuts in order to force out the bushing.

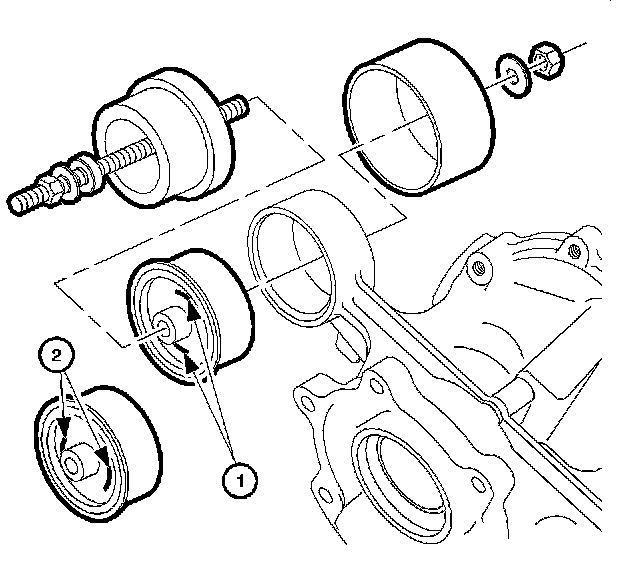

2. Important: The bushing has 2 slots molded into the rubber section. The slots are used to control vibration and must be installed by aligning the slots in the 6 o'clock and 12 o'clock position (1).

Install J 44866. Tighten the nuts in order to force the bushing in.
