Left Rear Cargo Door Harness Routing (Passenger/Cargo)
Left Rear Cargo Door Harness Routing (Passenger/Cargo)

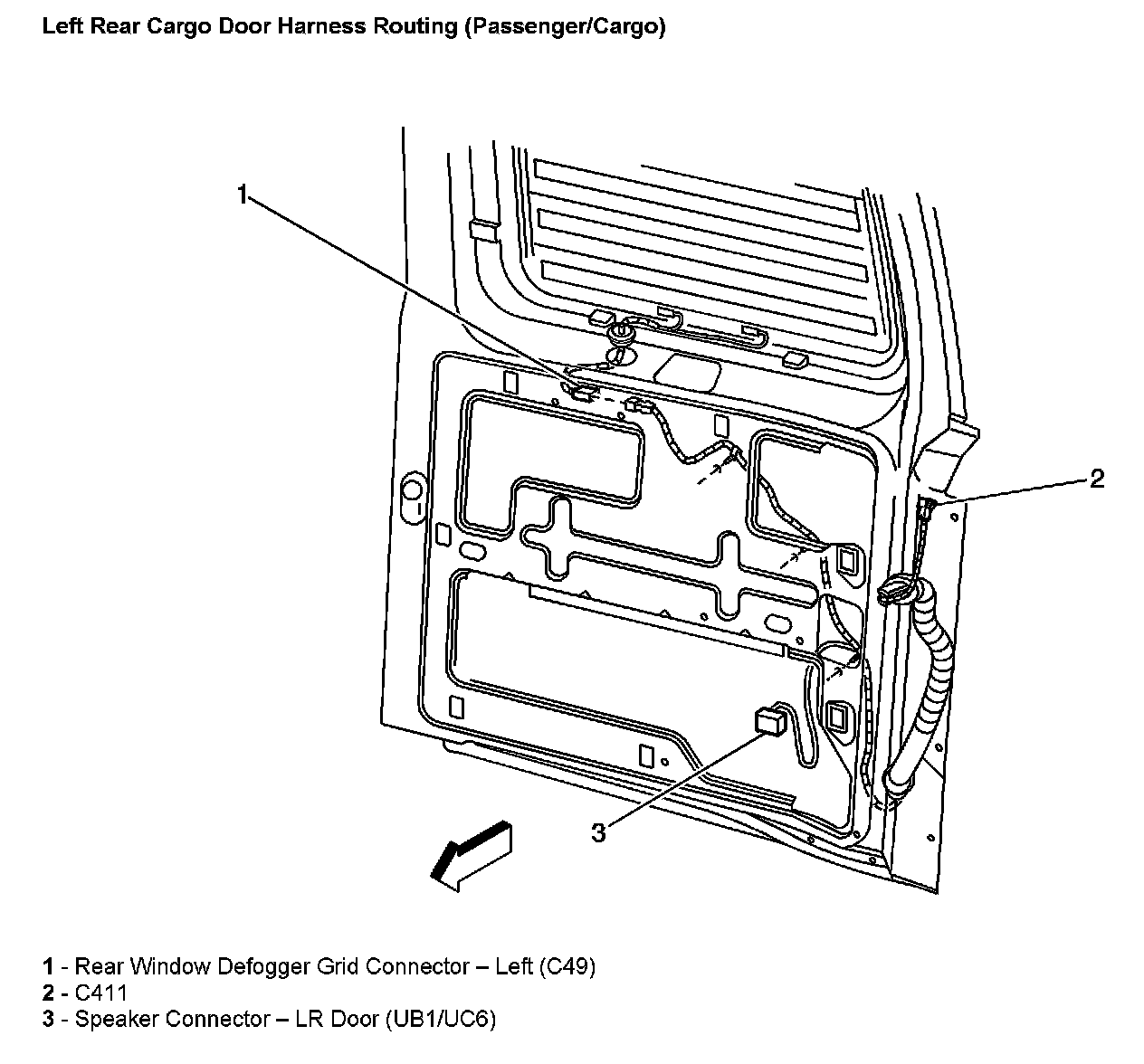

Left Rear Cargo Door Harness Routing (Passenger/Cargo):
