Rear Dome Lamp Harness Routing (Cargo)
Rear Dome Lamp Harness Routing (Cargo)

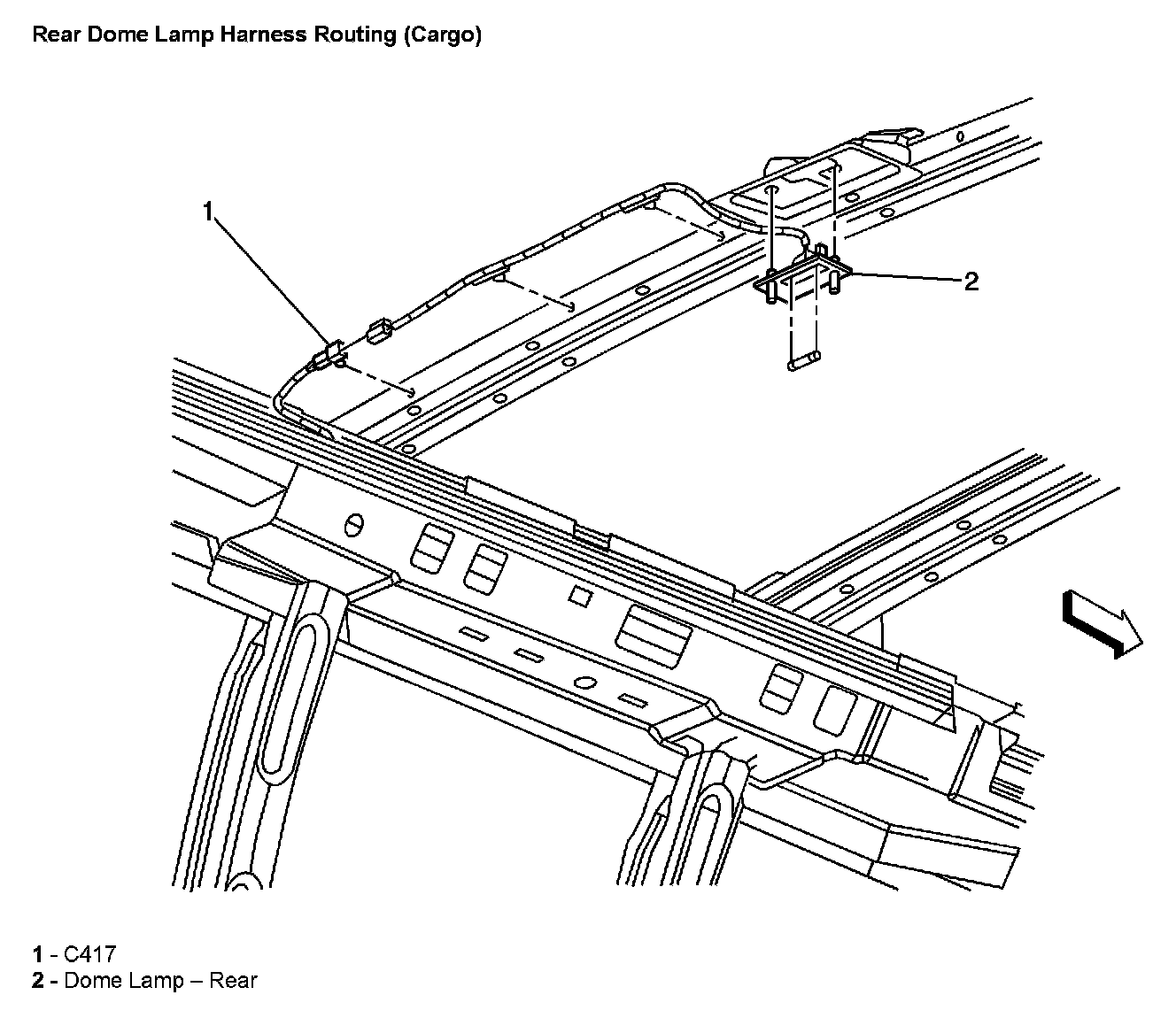

Rear Dome Lamp Harness Routing (Cargo):
