Heating Performance Diagnostic
Heating Performance Diagnostic

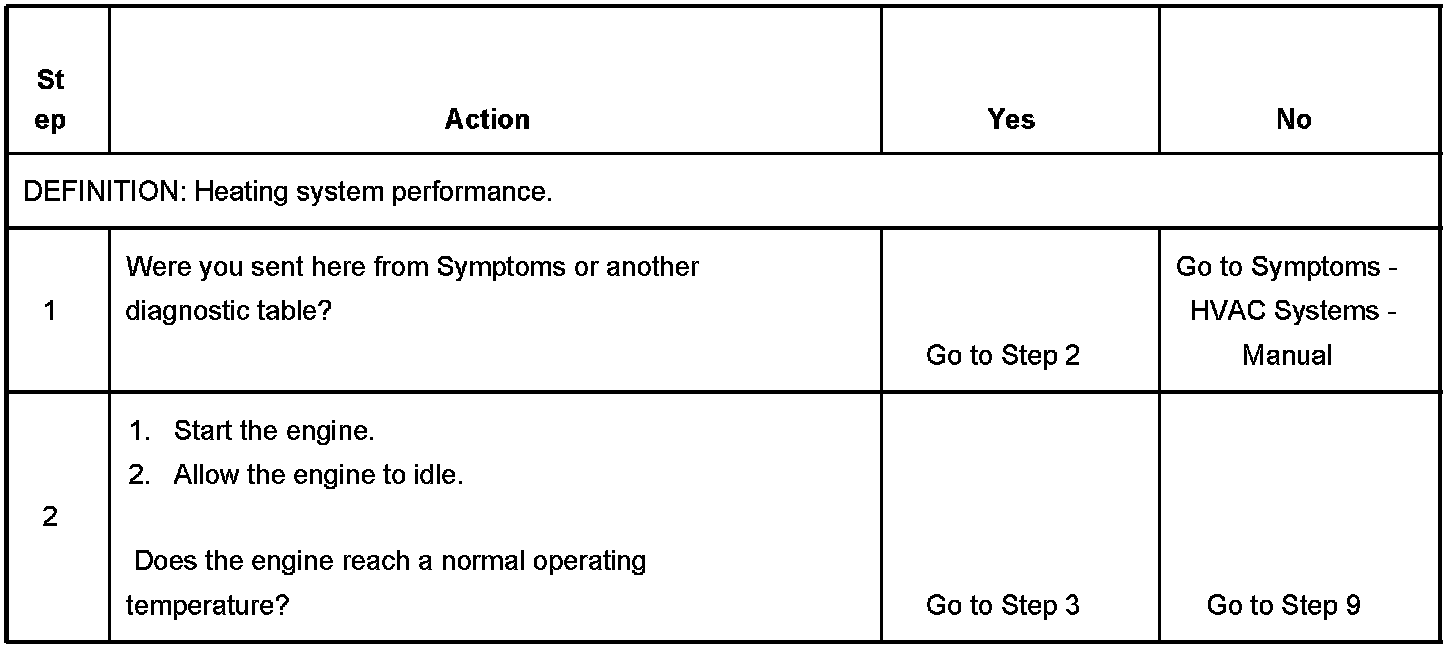

Step 1-2:

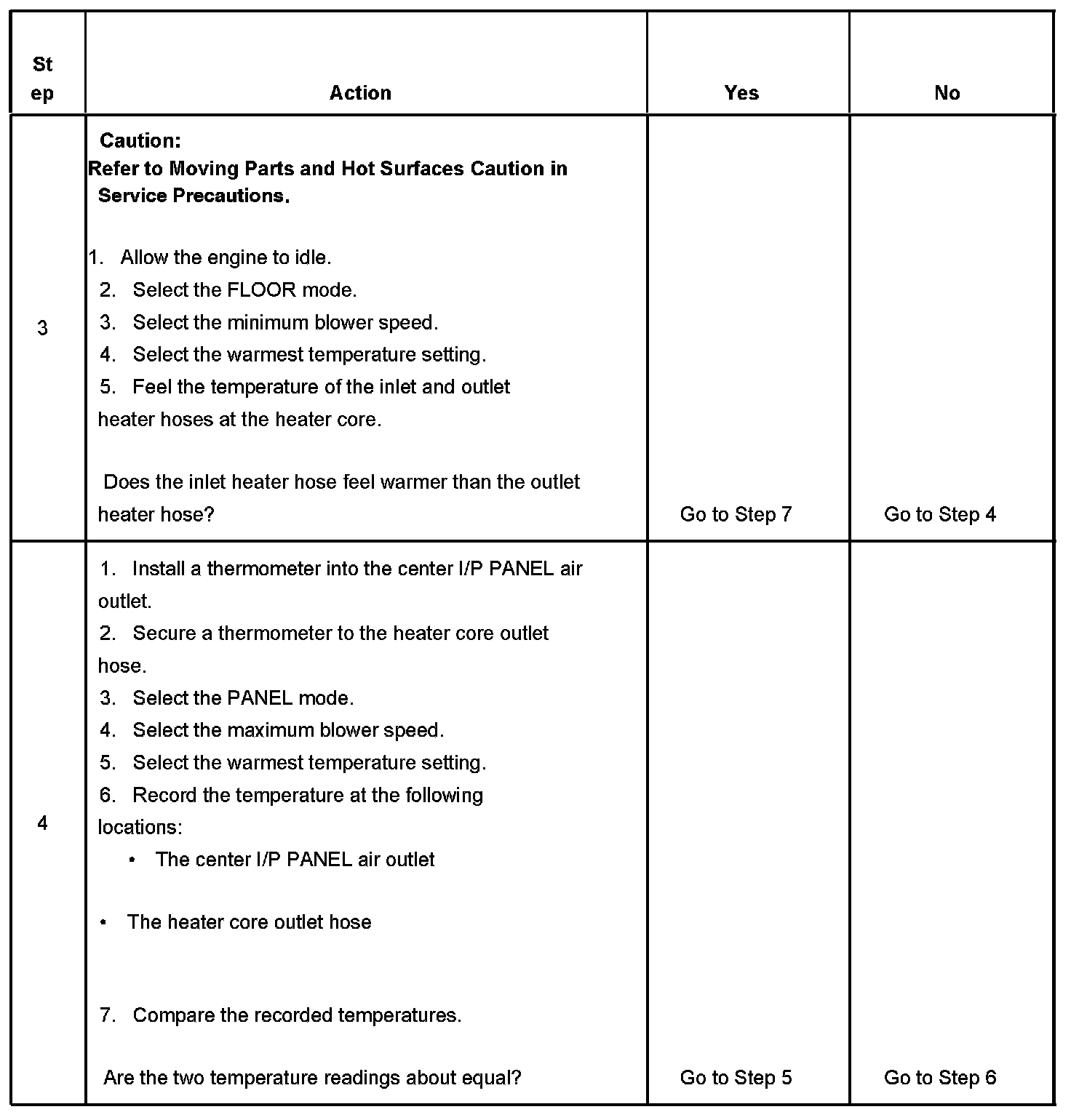

Steps 3-4:
Steps 5-9:
Step 10:
