Interior - Sunvisor is Wet, Puddling Water on Floor

Sunvisor is Wet, Puddling Water on Floor (Reseal Roof) #04-08-57-006 - (Oct 6, 2004)

Sunvisor is Wet, Puddling Water on Floor (Reseal Roof)

2004-2005 Chevrolet Express Van and Cutaway Models

2004-2005 GMC Savana Van and Cutaway Models

Condition
Some customers may comment that the sunvisor is wet. Also, water may be running down the "A" pillar and puddling on the floor, making it appear as a windshield water leak.

Cause
The drip edge at the rear of the van may not be sealed properly.

Correction

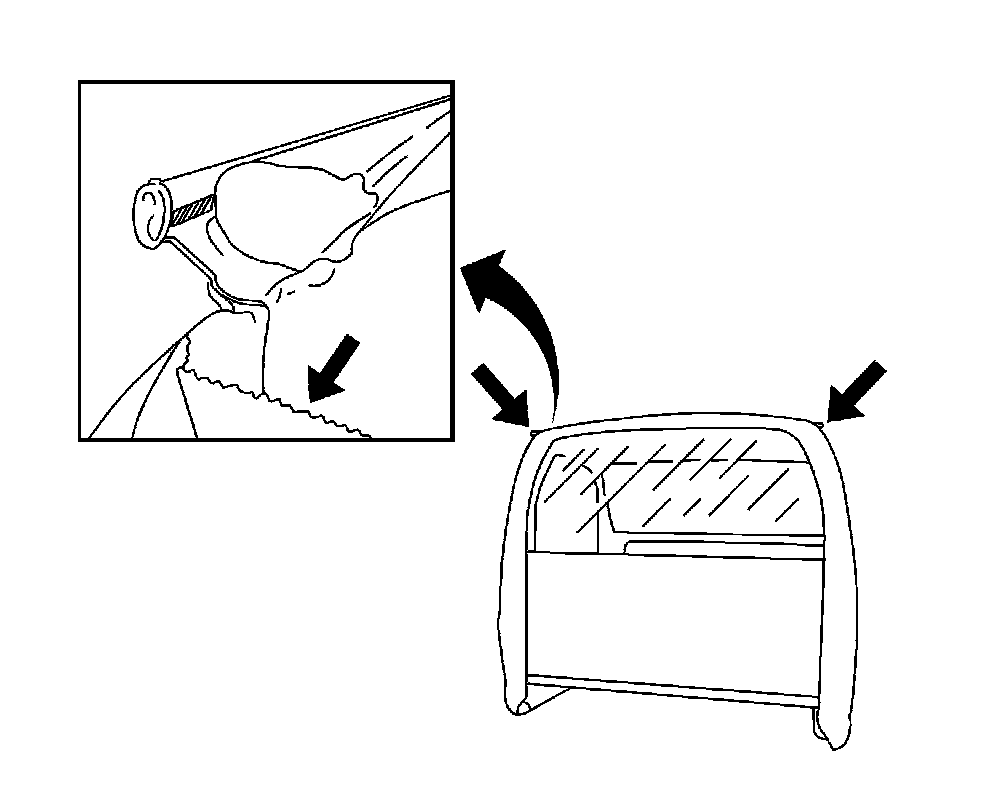

Clean the rear corner(s) and reseal with clear seam sealer. Refer to the illustration above. Cutaway chassis is shown, full size van typical.

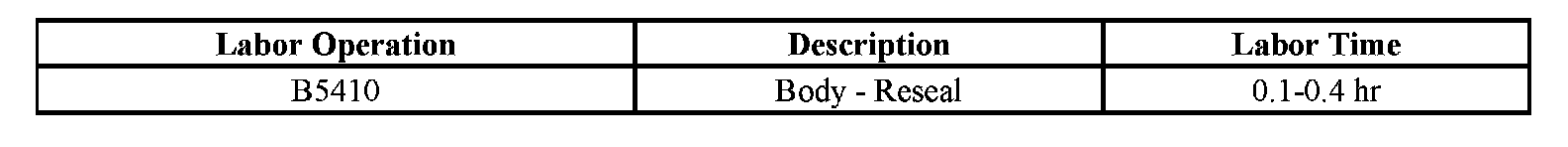

Warranty Information




For vehicles repaired under warranty, use:
