SSR V8-6.0L VIN H
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Amplifier, Sound System
Amplifier, Sound System

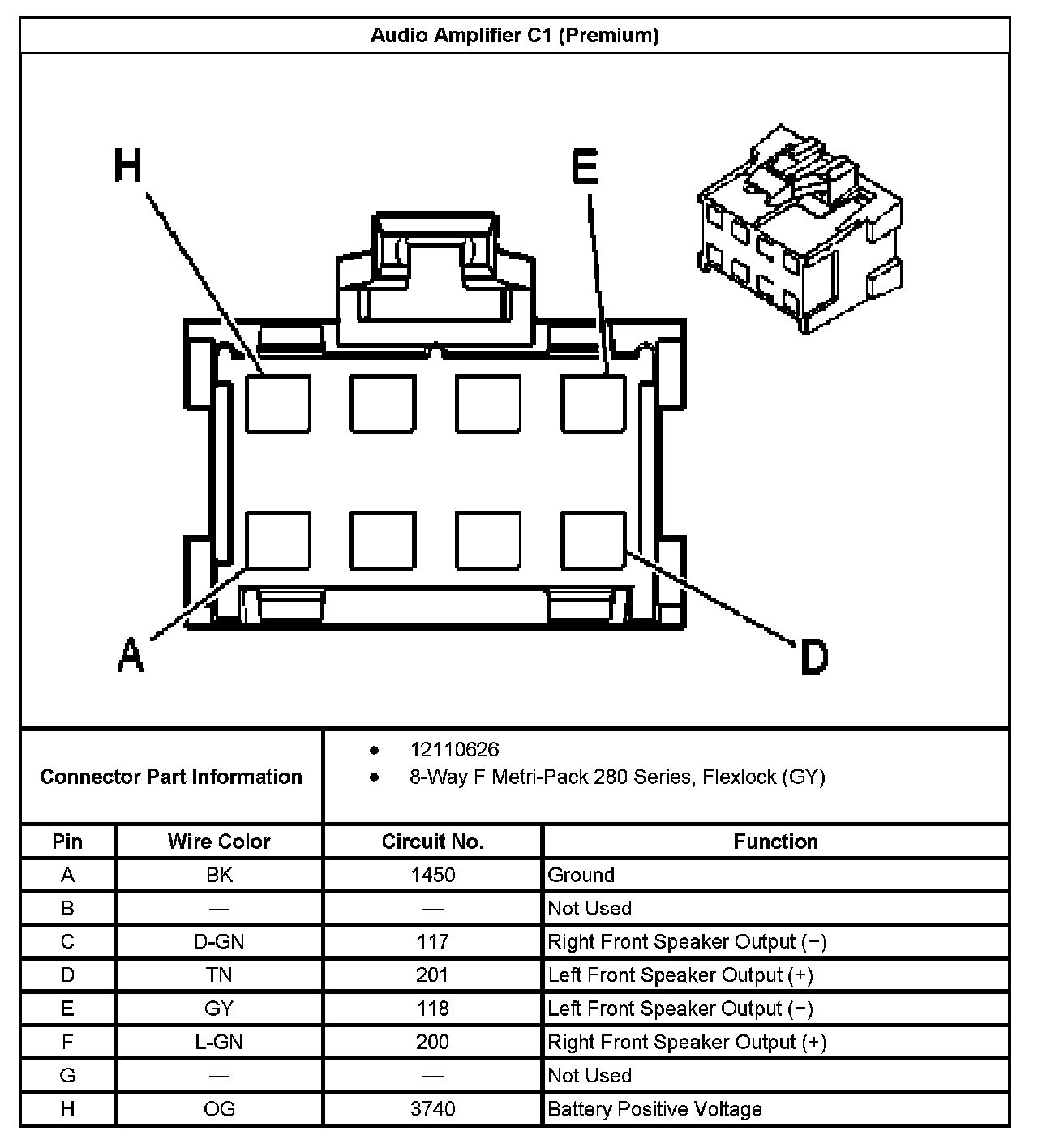

Audio Amplifier C1 (Premium):

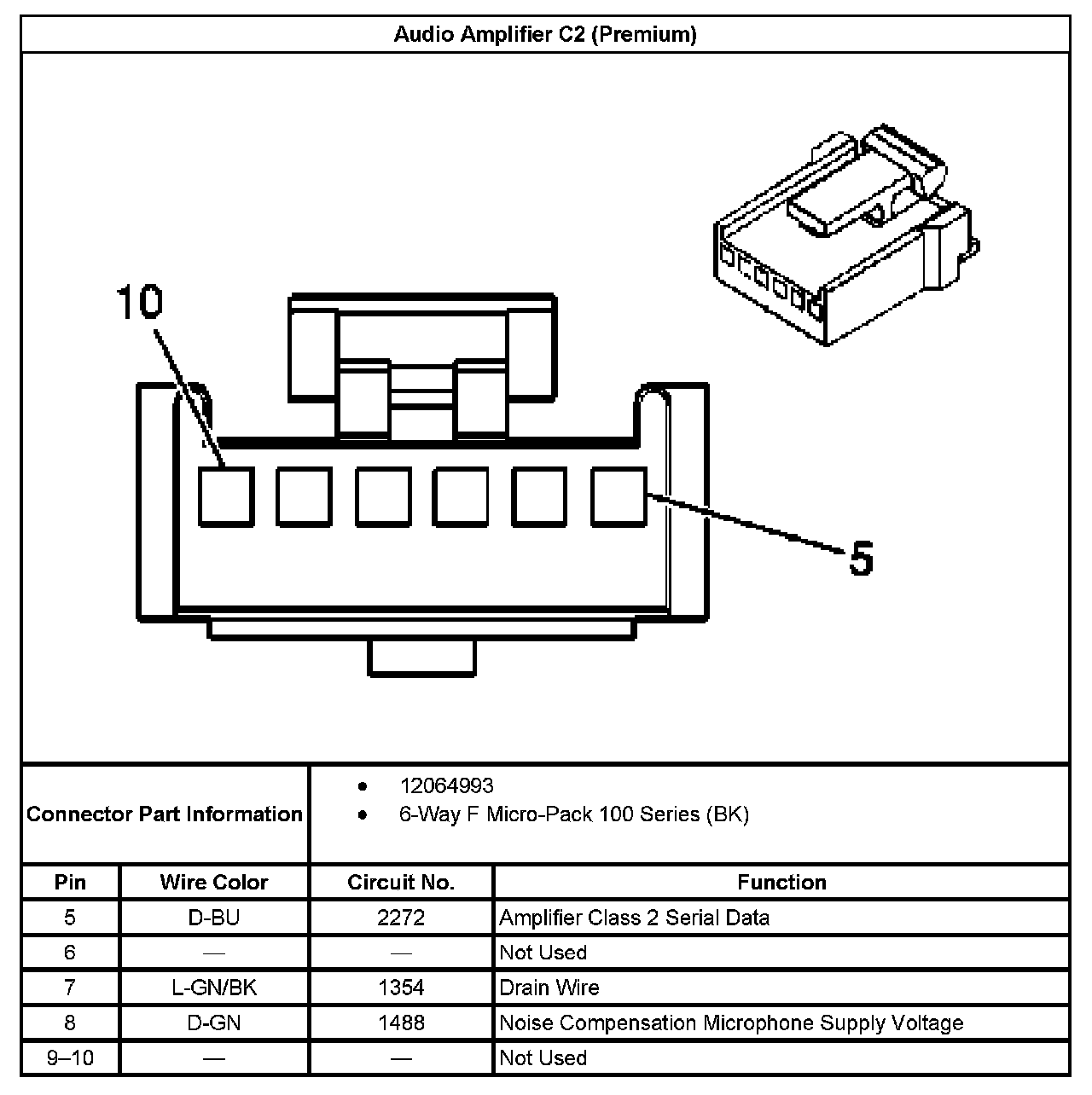

Audio Amplifier C2 (Premium):

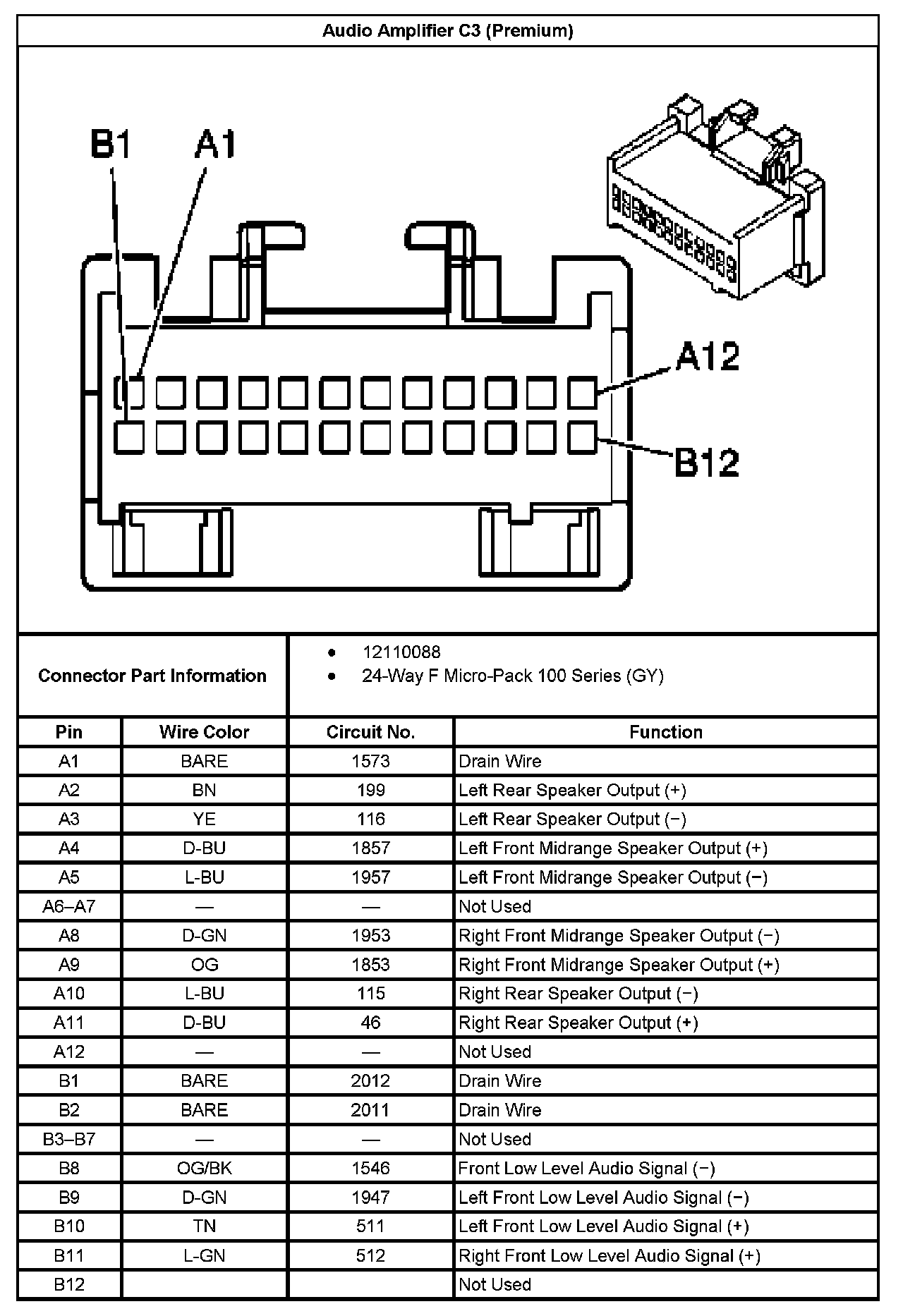

Audio Amplifier C3 (Premium):
