Convertible Top Pump

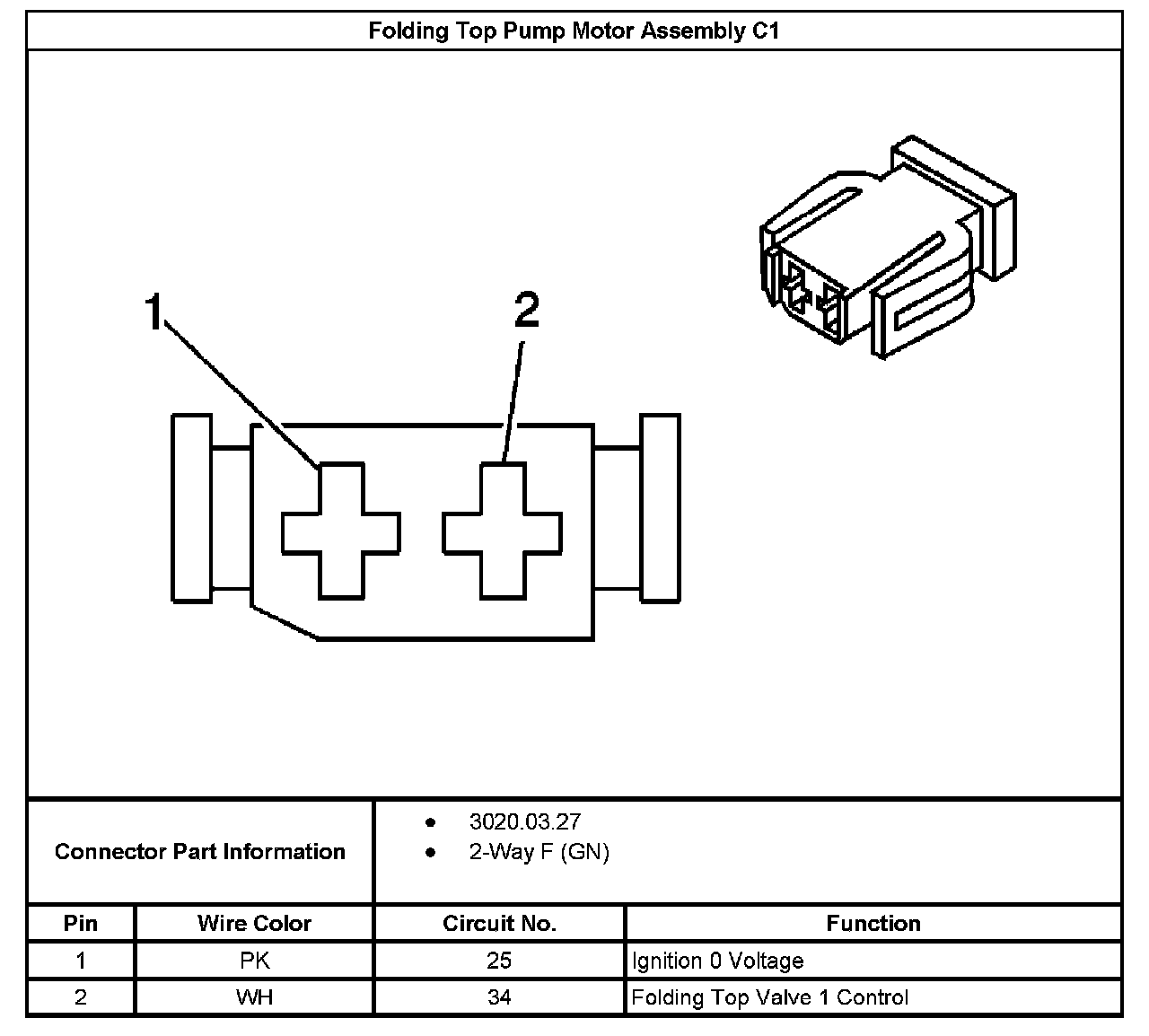

Folding Top Pump Motor Assembly C1:

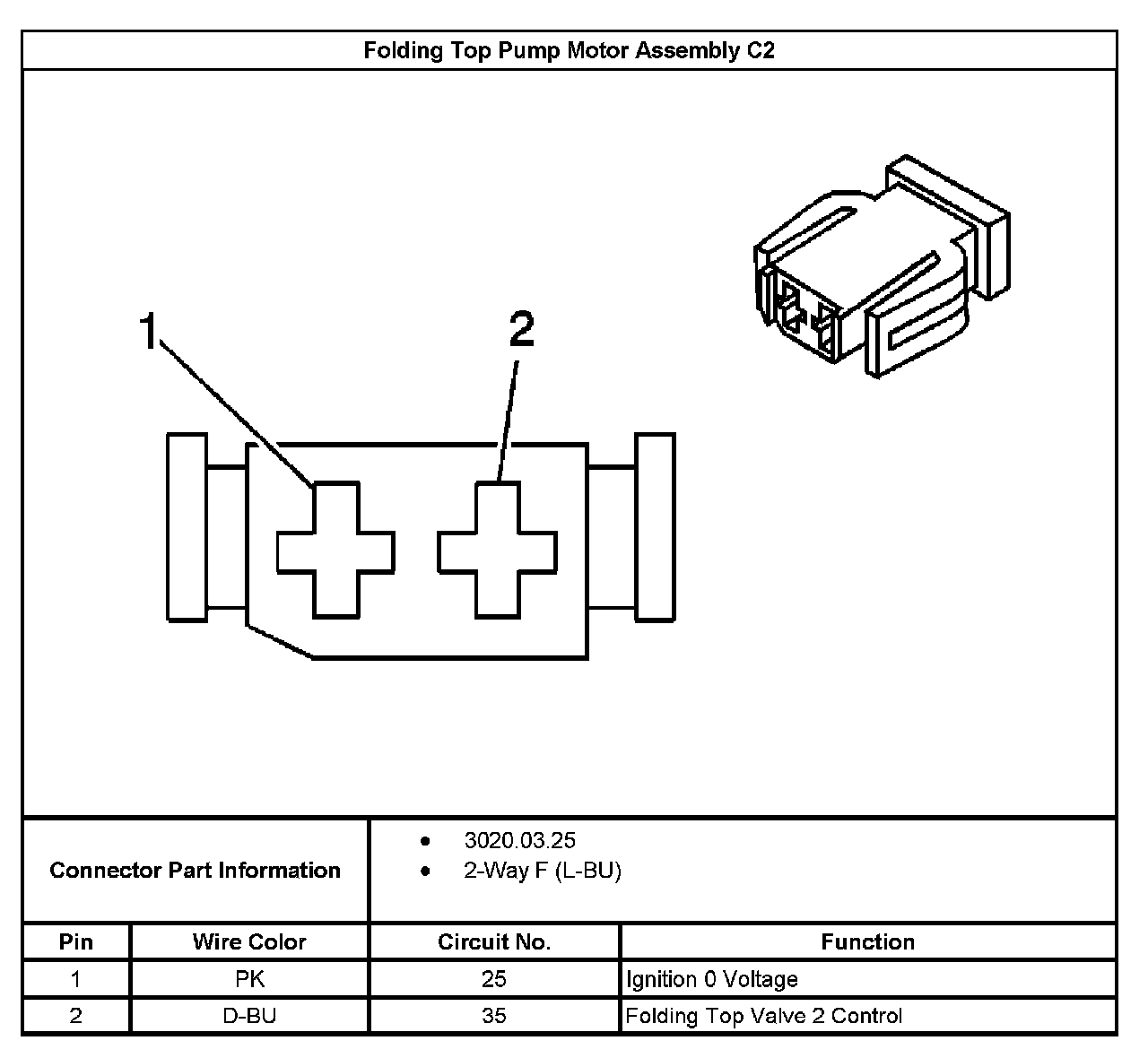

Folding Top Pump Motor Assembly C2:

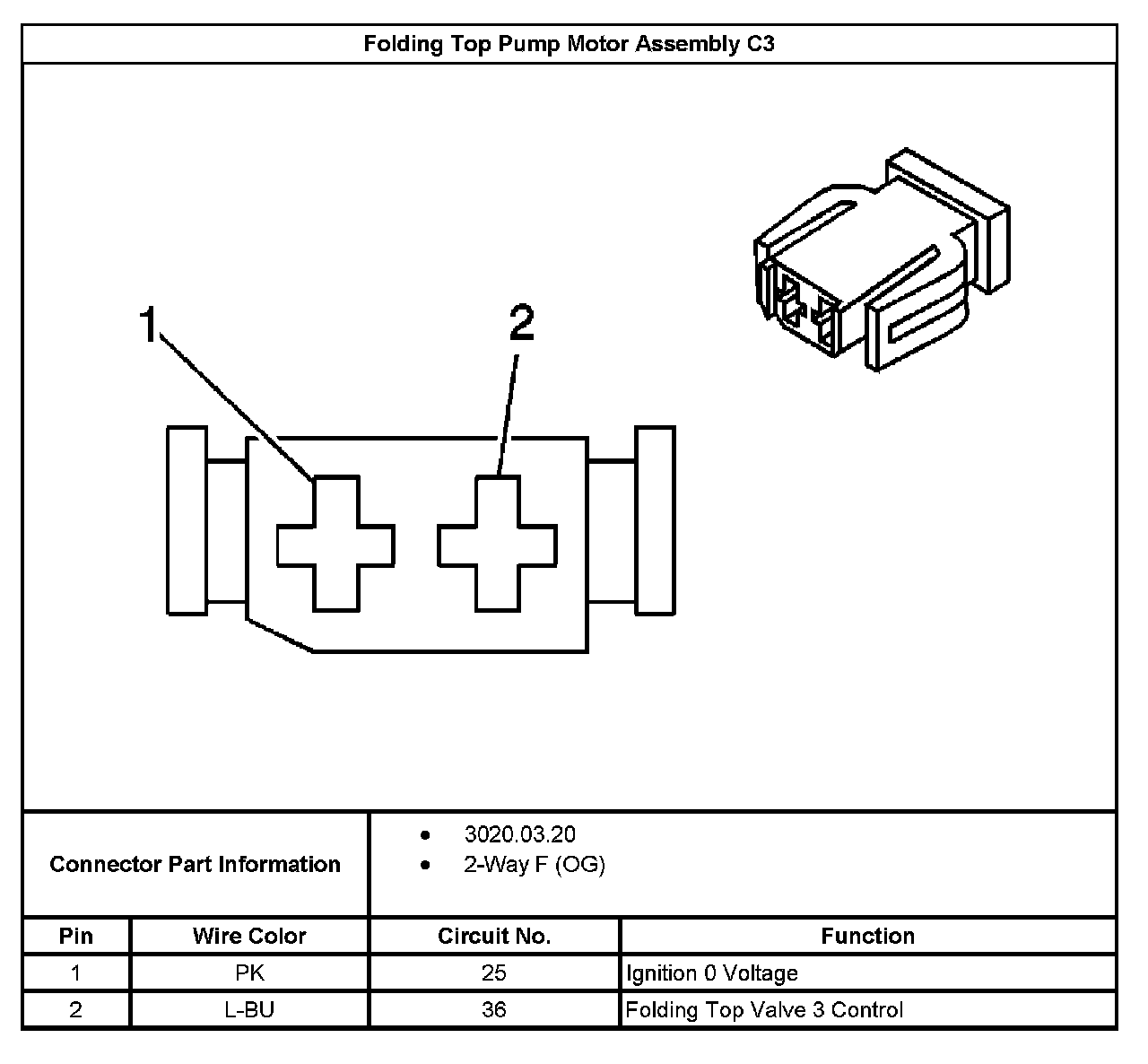

Folding Top Pump Motor Assembly C3:



Folding Top Pump Motor Assembly C4:

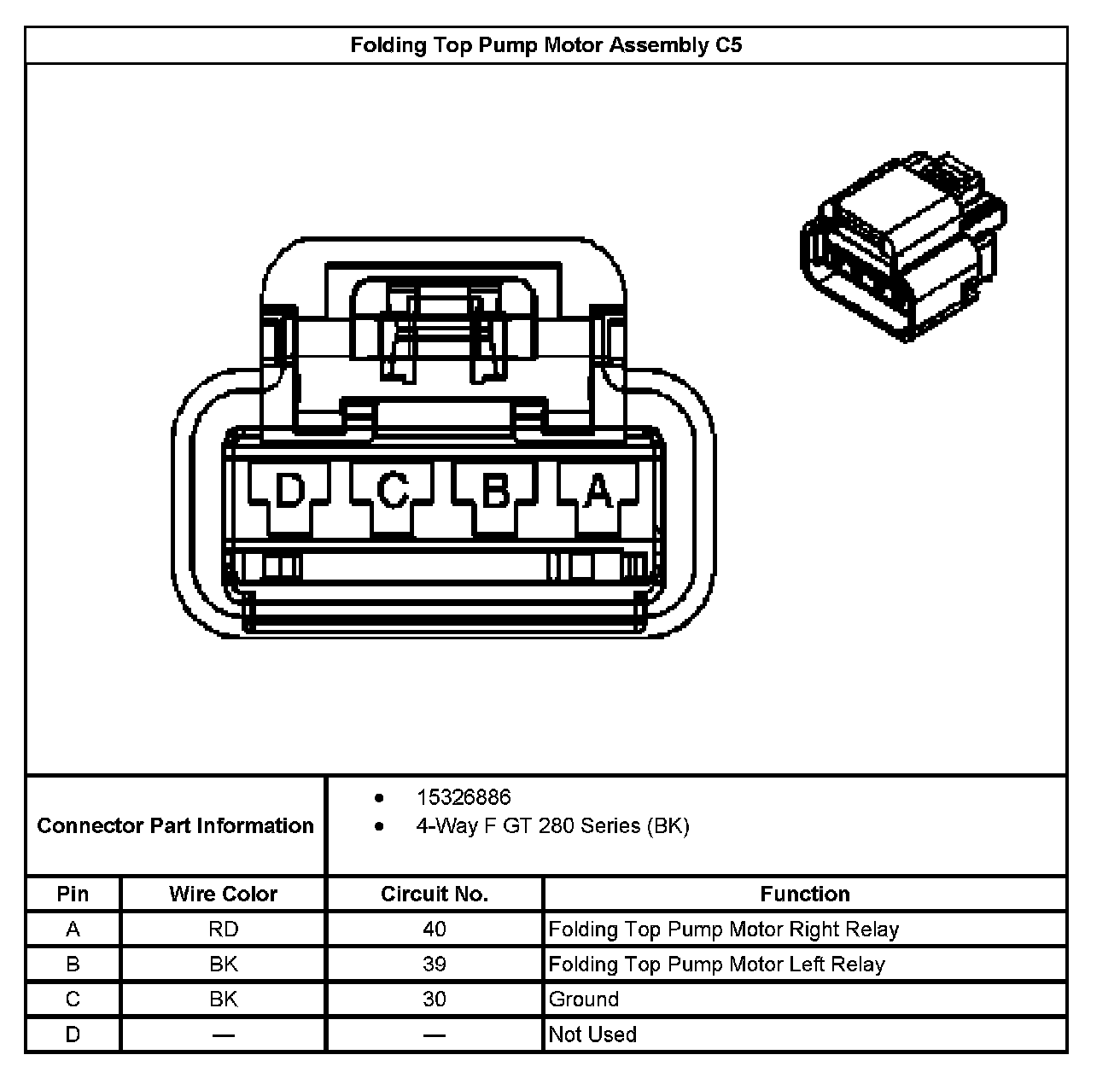

Folding Top Pump Motor Assembly C5:
