SSR V8-6.0L VIN H
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Instrument Cluster / Carrier
Instrument Cluster / Carrier

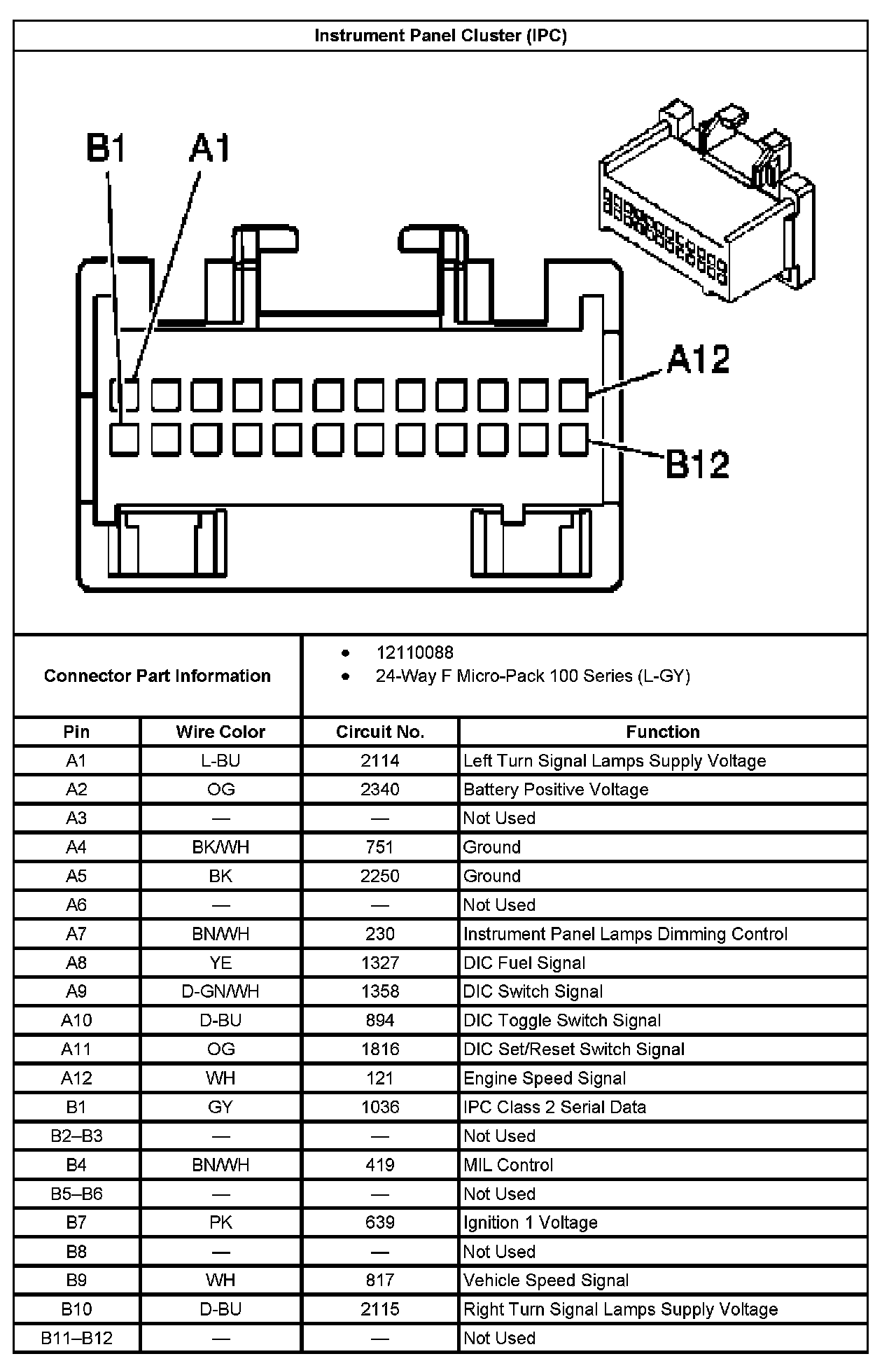

Instrument Panel Cluster (IPC):

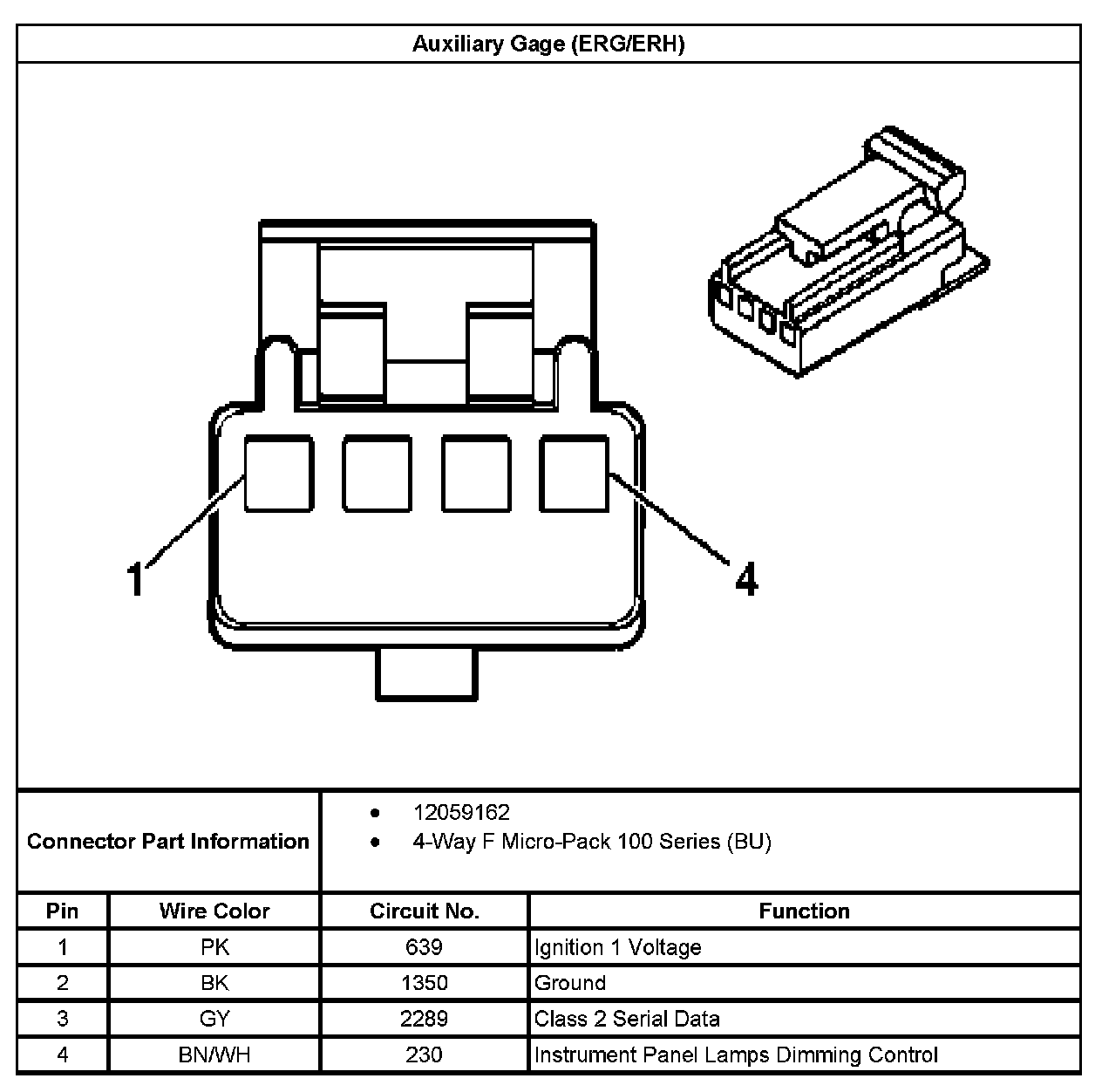

Auxiliary Gage (ERG/ERH):
