Home
>>
Chevy Truck
>>
2005
>>
SSR V8-6.0L VIN H
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Control Module
Power Seat Control Module

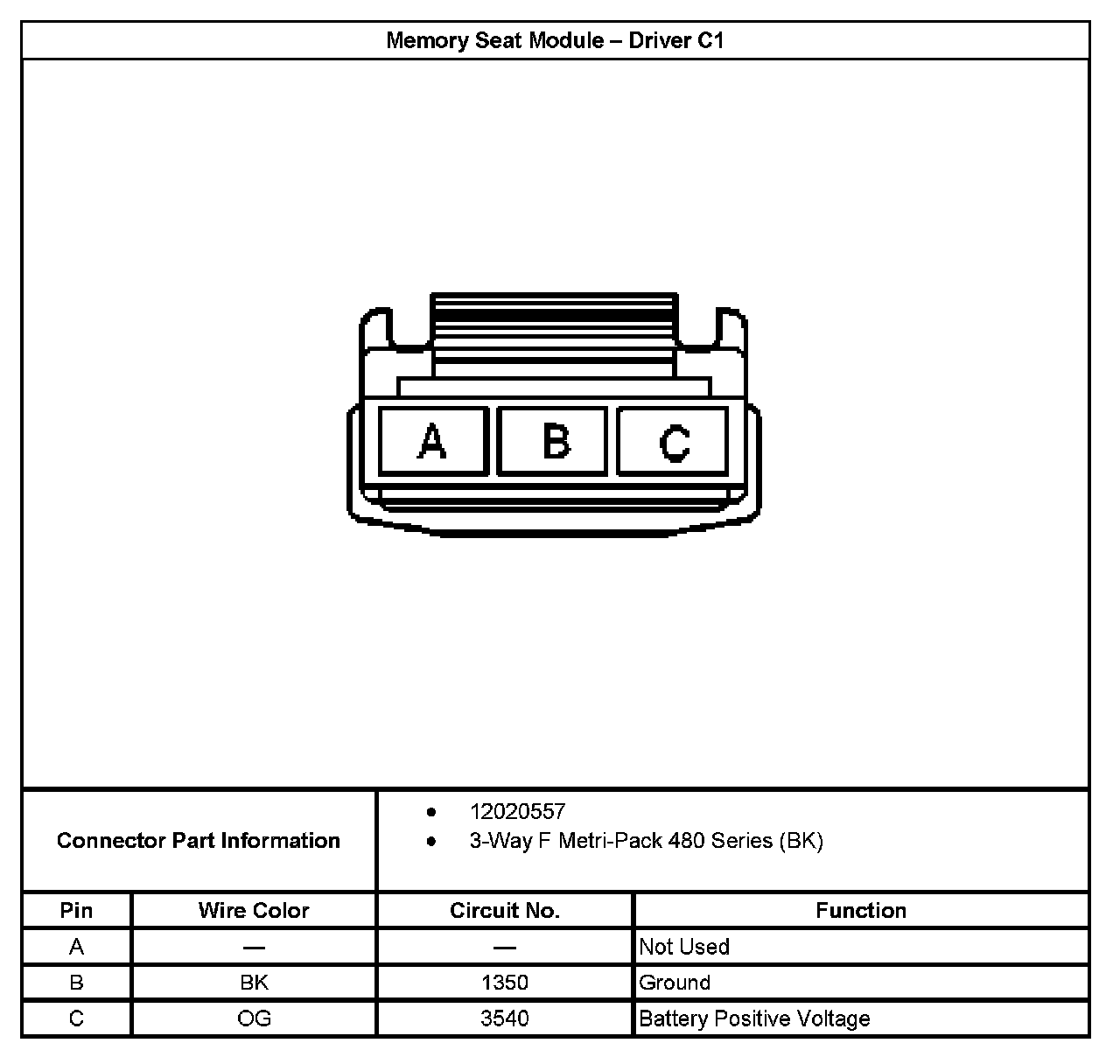

Memory Seat Module - Driver C1:
Memory Seat Module - Driver C2 Part 1:
Memory Seat Module - Driver C2 Part 2:
Memory Seat Module - Driver C3:
Memory Seat Module - Driver C4:
