Power Seat Motor Position Sensor
Power Seat Motor Position Sensor
Position Sensor - Front:

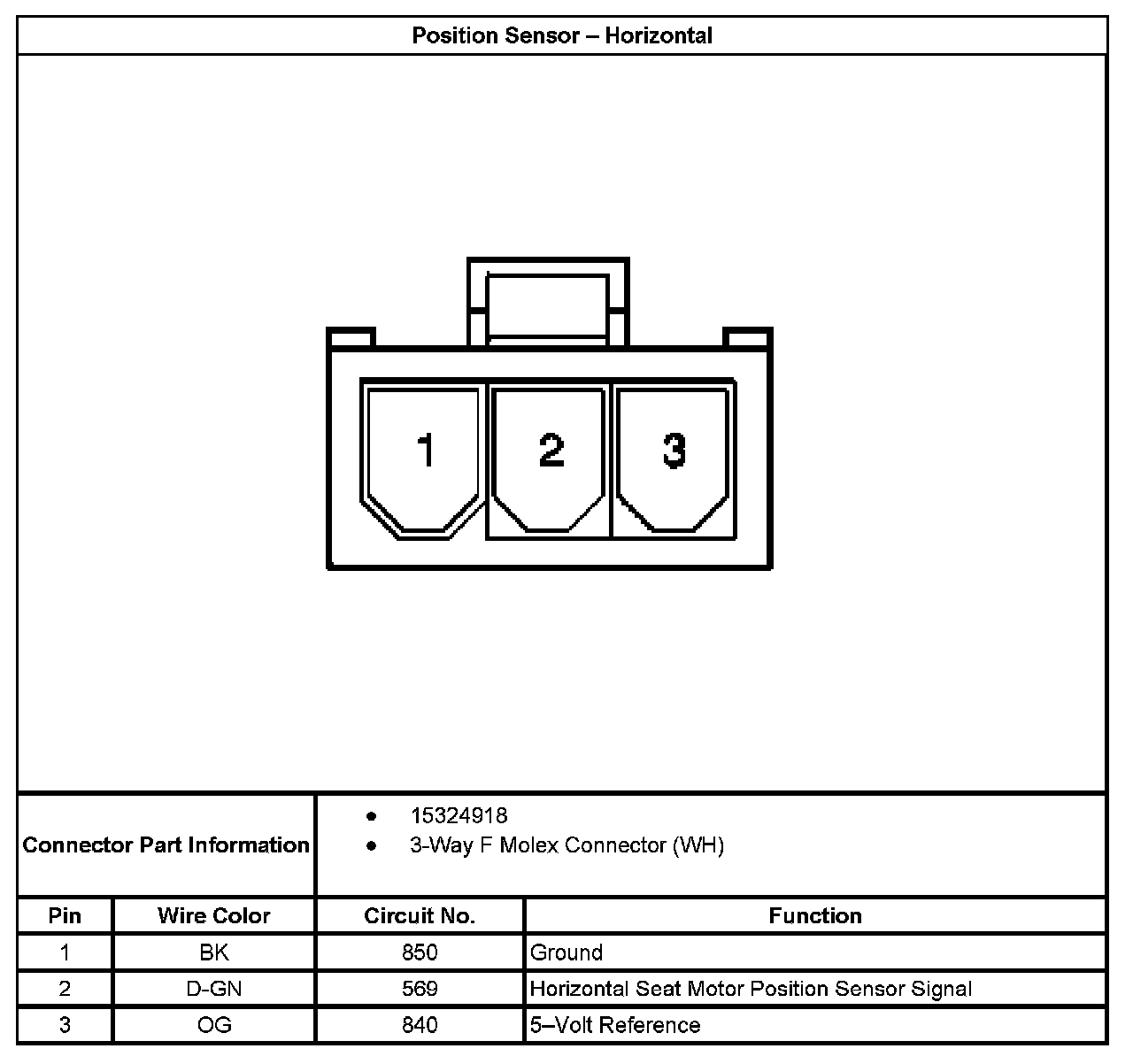

Position Sensor - Horizontal:

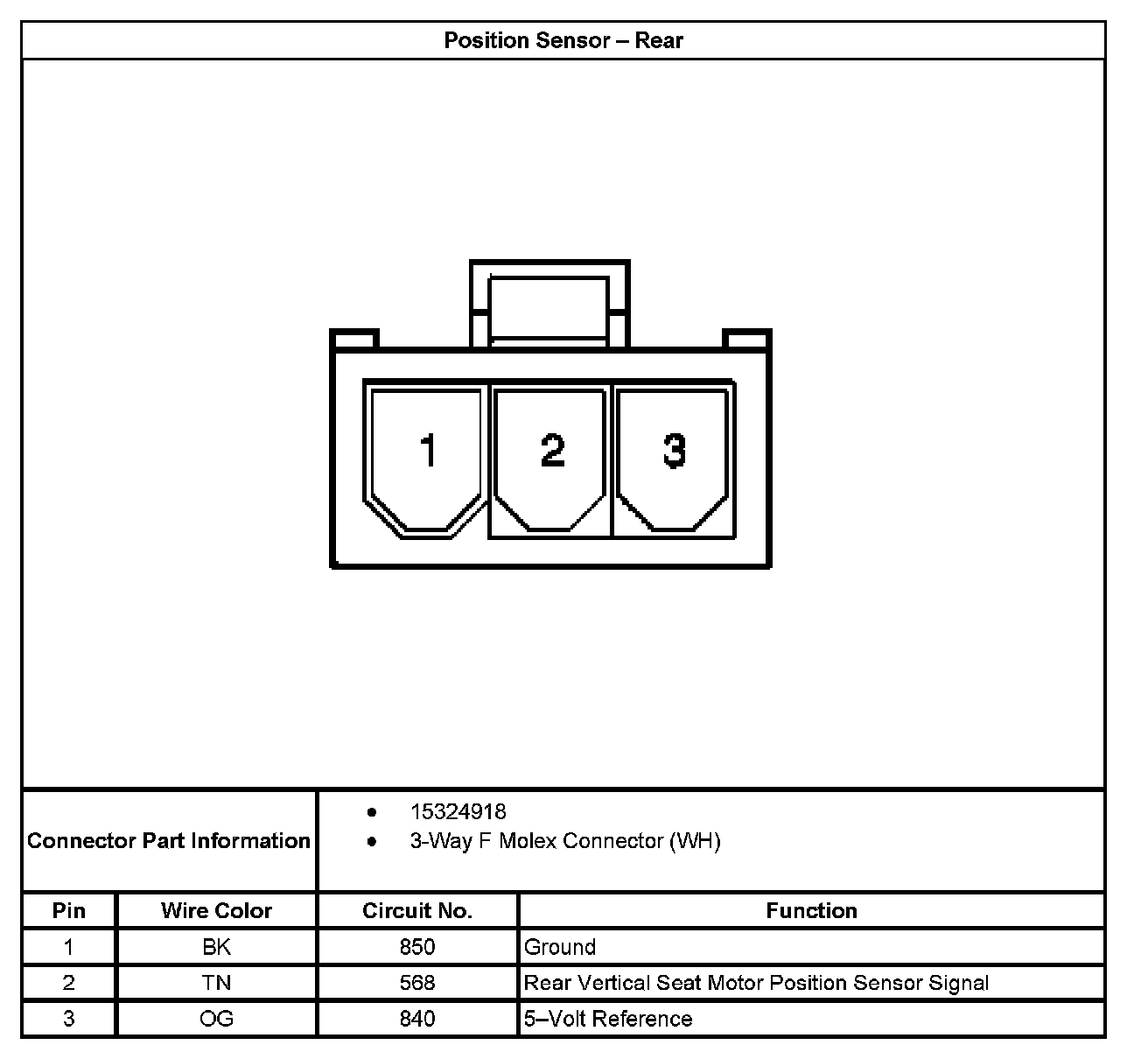

Position Sensor - Rear:
