Power Trunk / Liftgate Lock Actuator

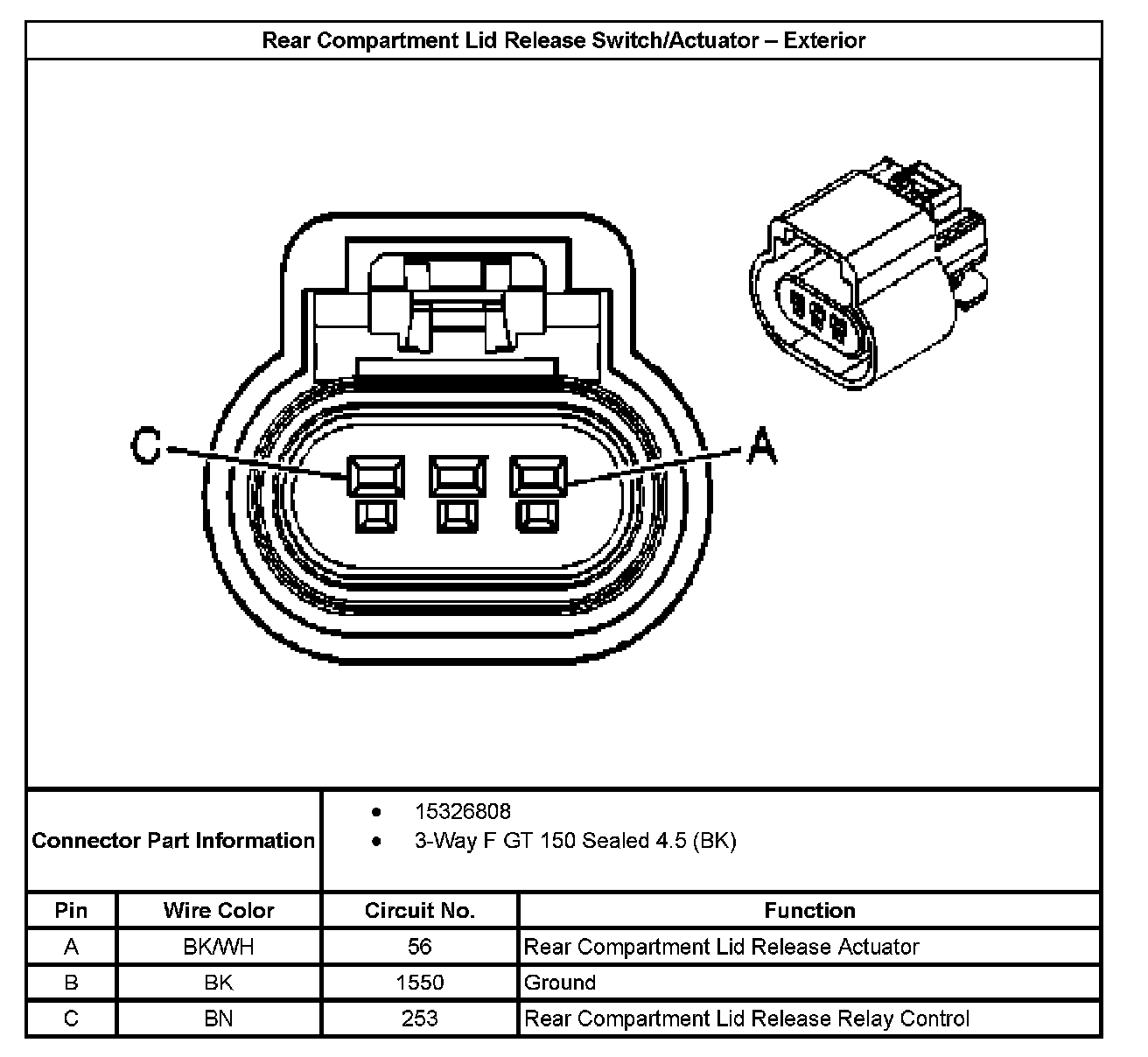

Rear Compartment Lid Release Switch/Actuator - Exterior:



Rear Compartment Lid Release Switch - Interior:
